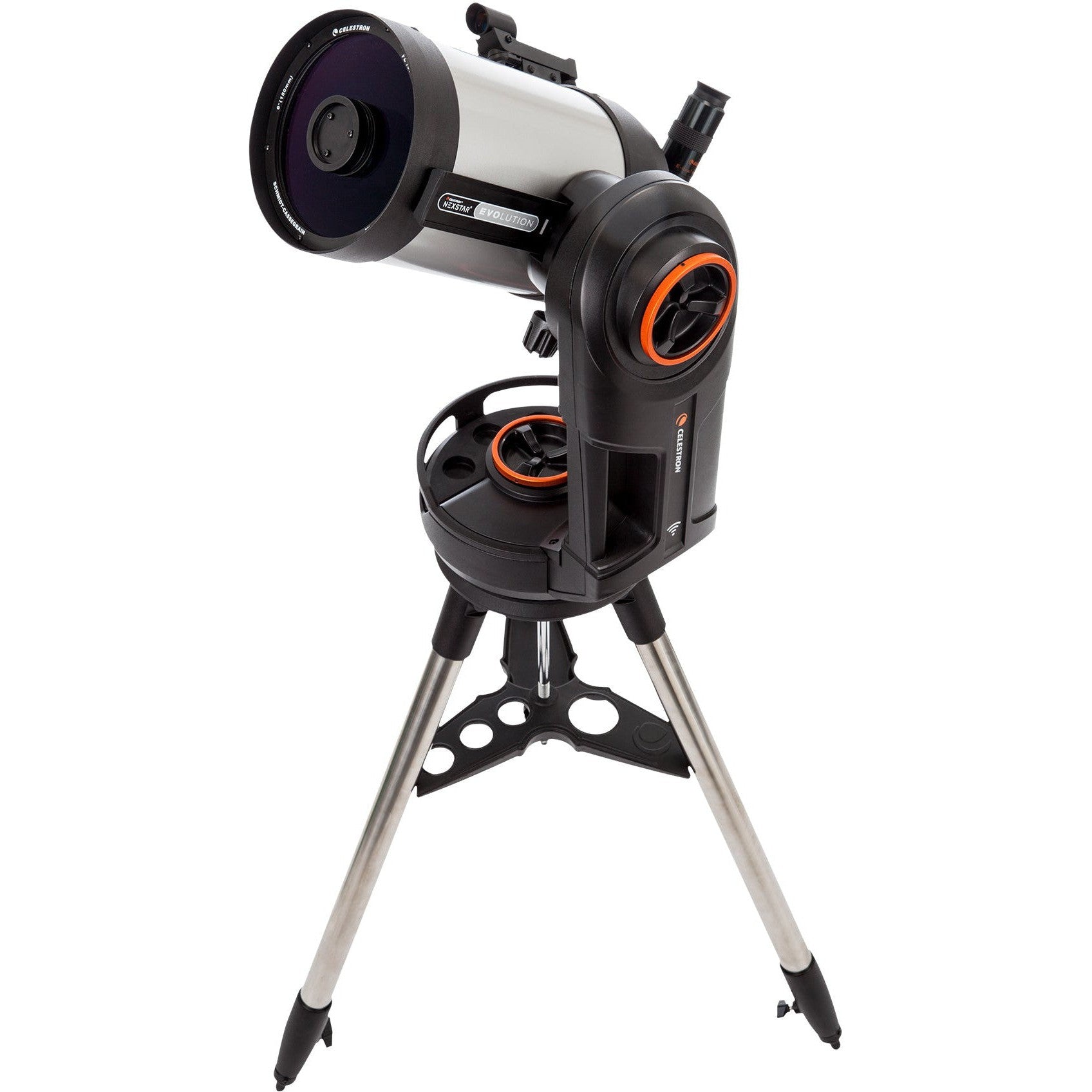

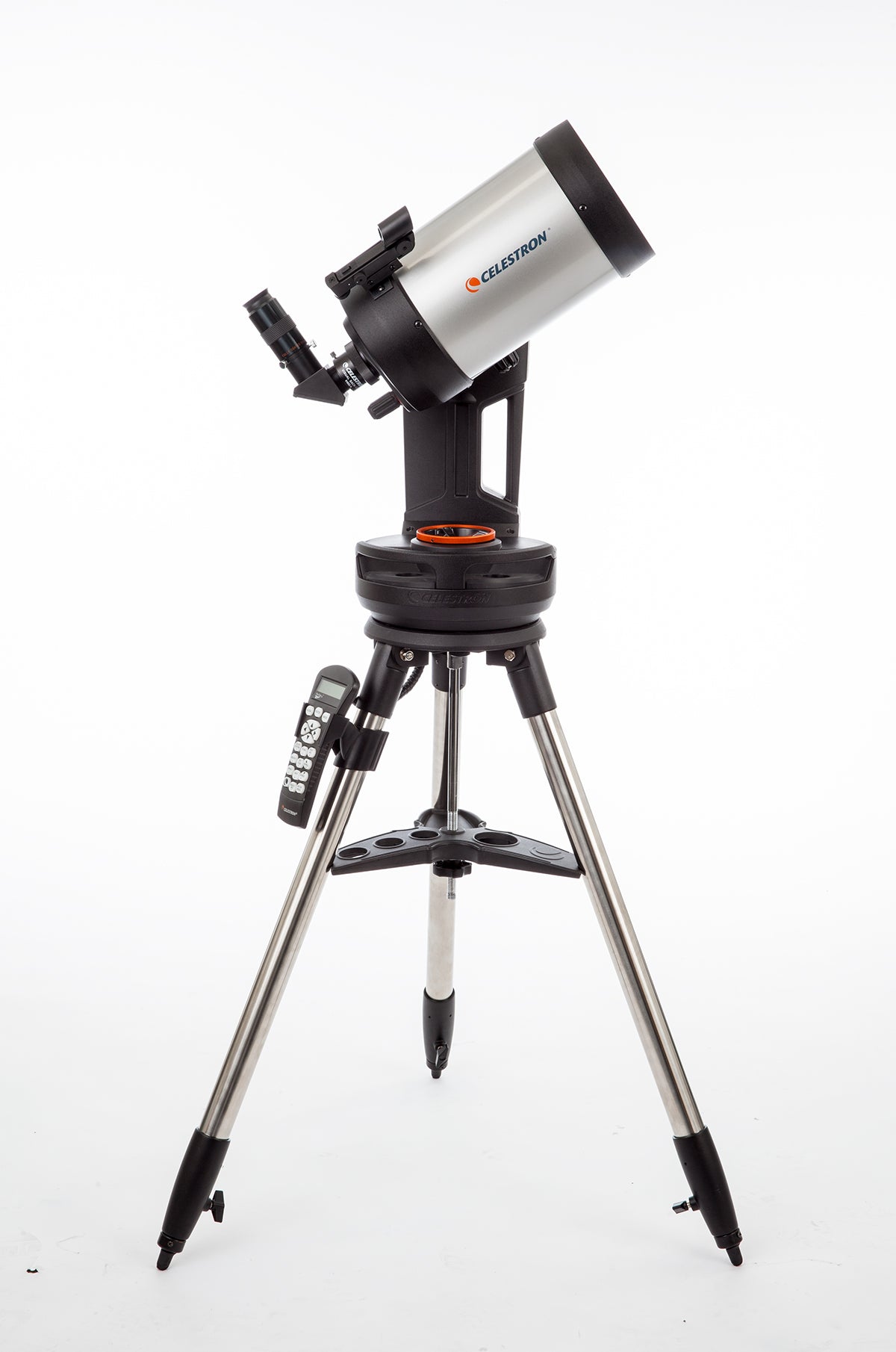

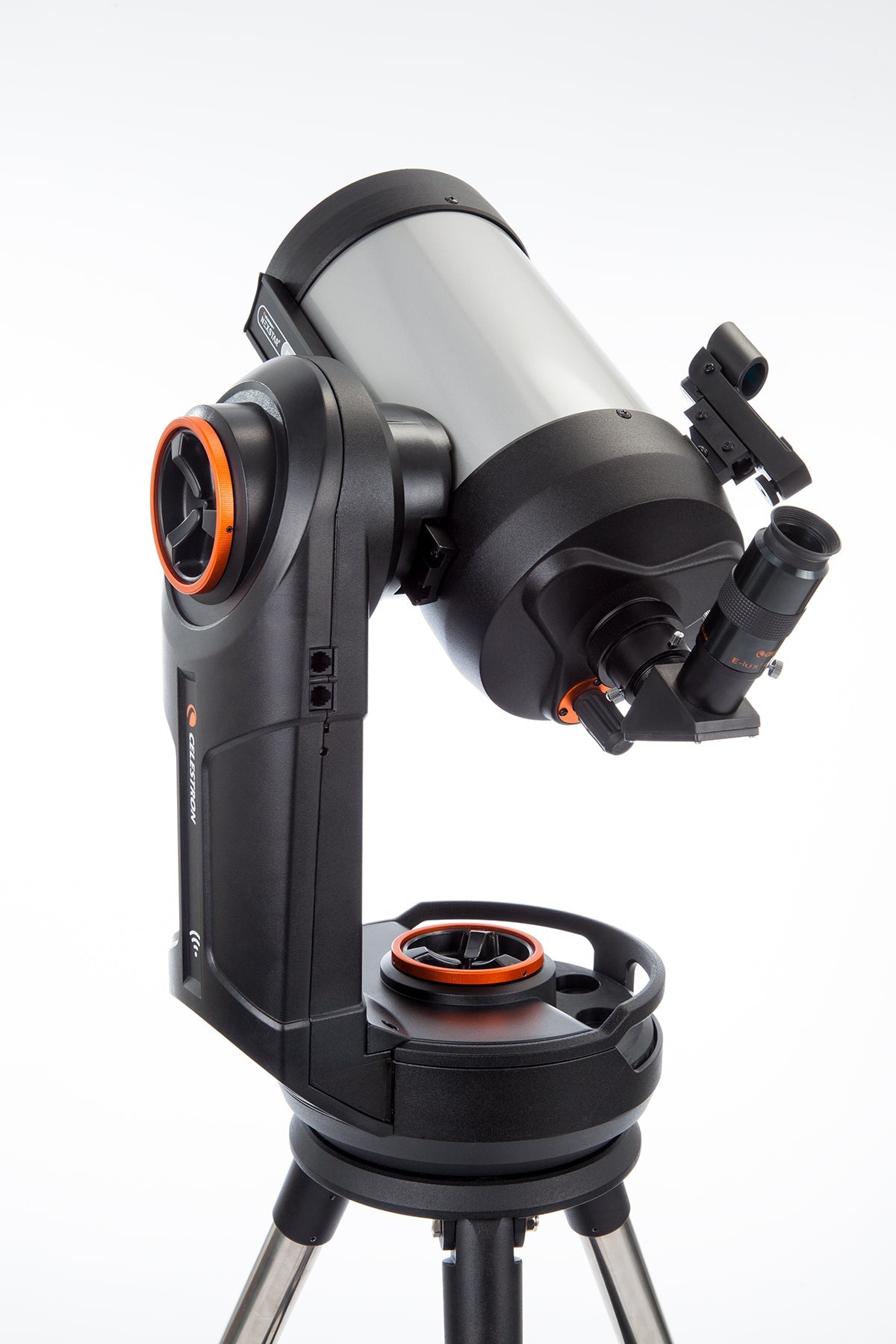

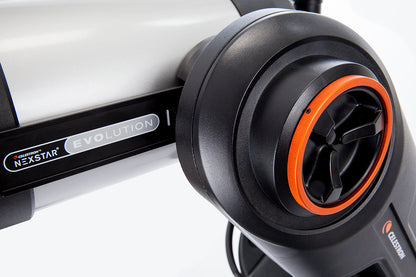

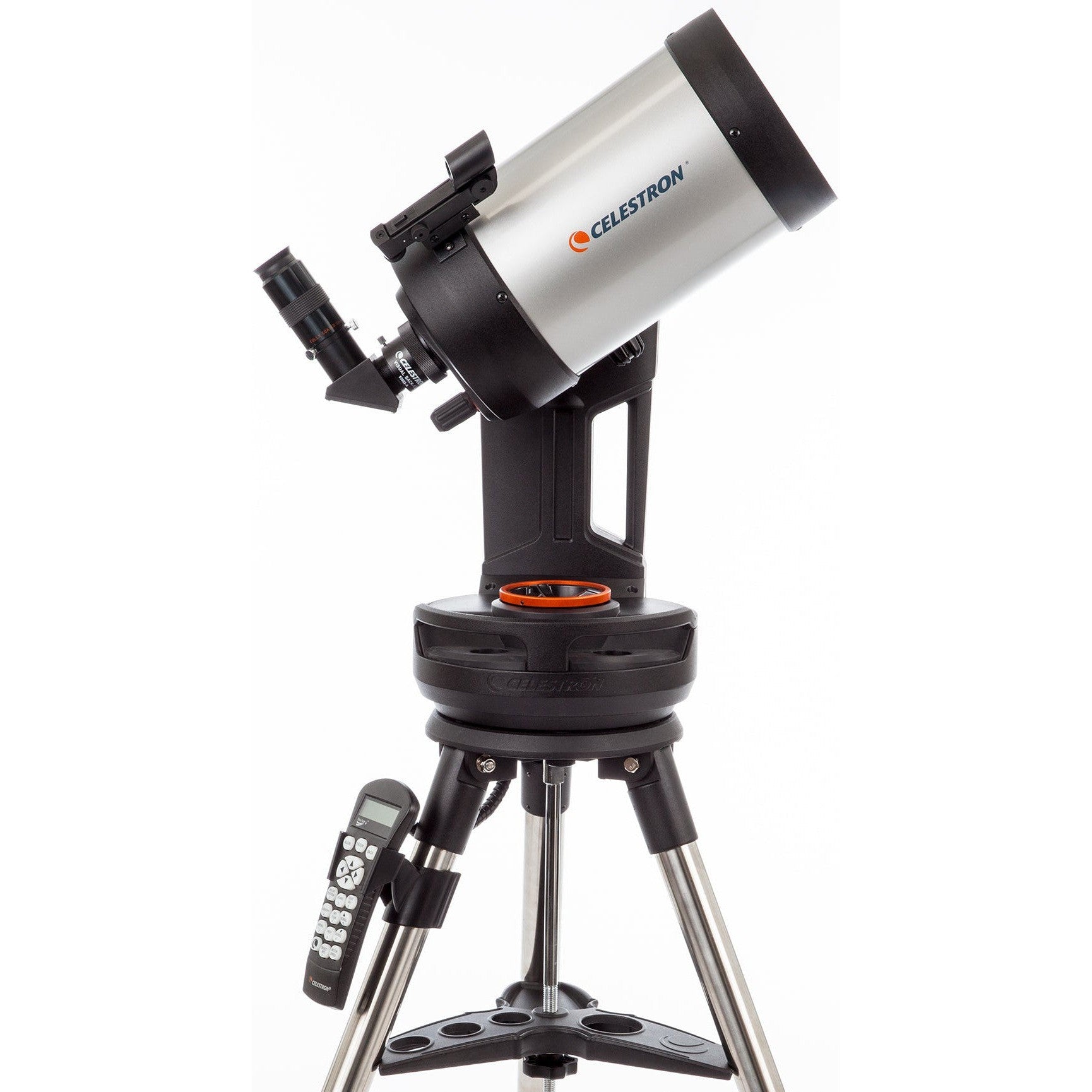

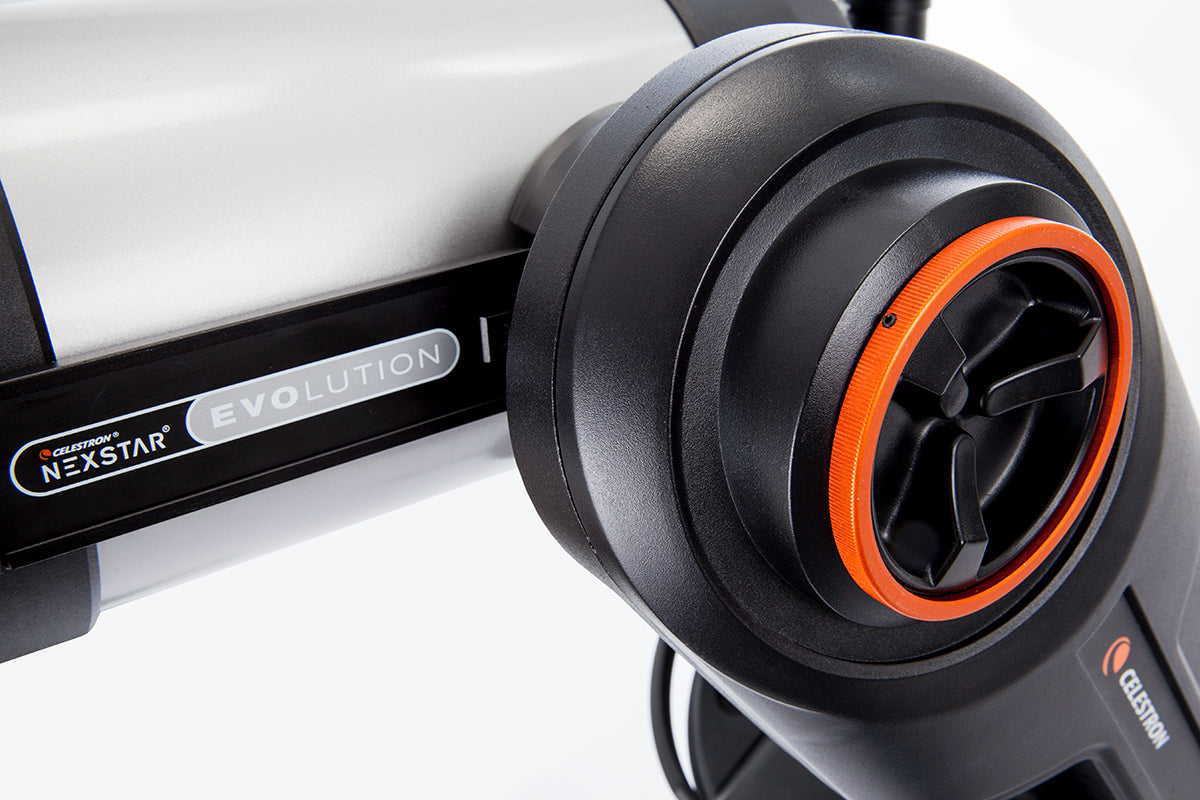

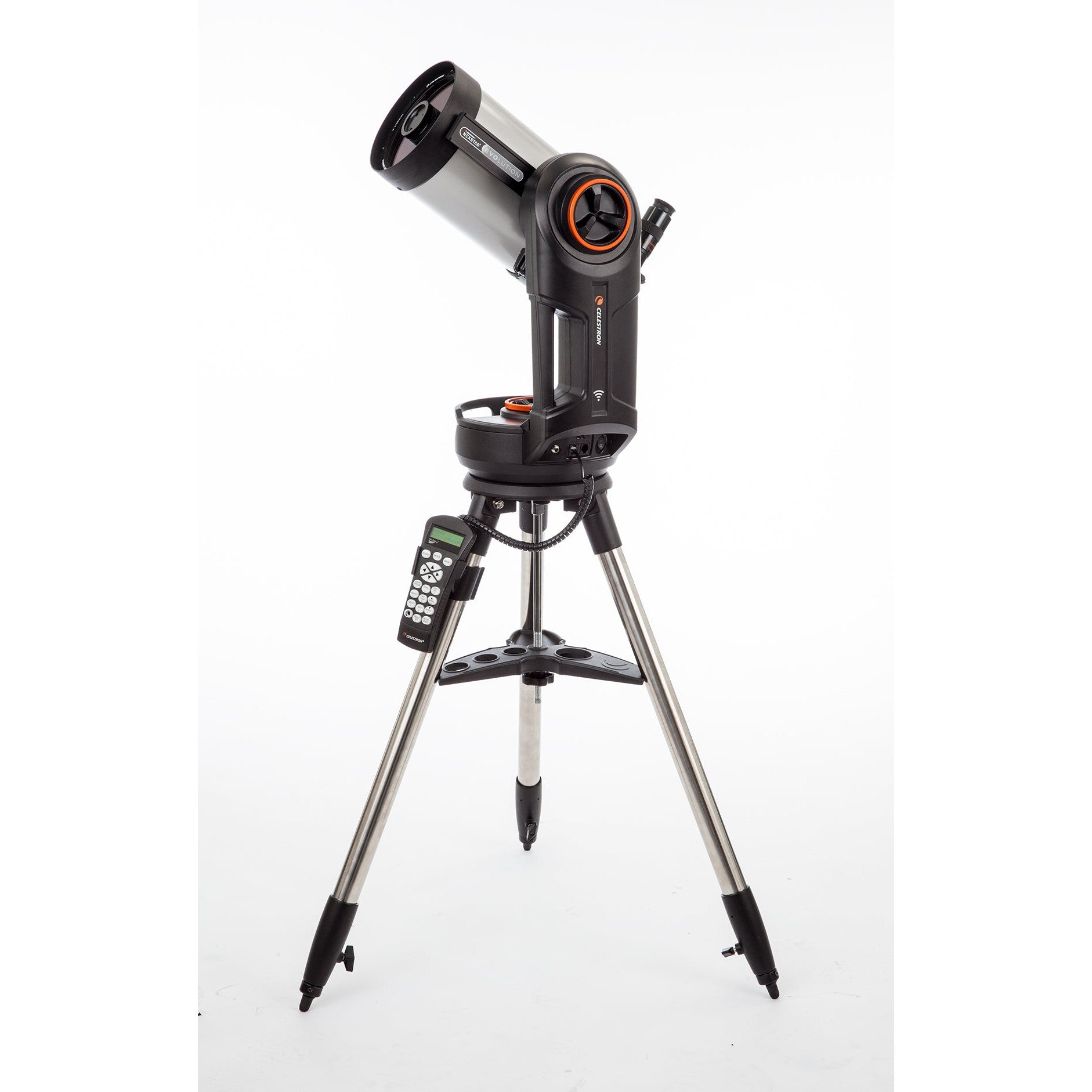

NexStar Evolution 6インチ SCT|CE-ASNE-12090
NexStar Evolution 6インチ SCT|CE-ASNE-12090
ネクスター エボリューション シックス エスシーティー
残り 1 個
受取状況を読み込めませんでした
2年保証(電子部品は1年)
スマホひとつで、宇宙を自在に。WiFiとバッテリーを内蔵した、150mm(6インチ)の進化型シュミカセ。
- iOSおよびAndroid対応の無料アプリ「Celestron SkyPortal」(SkySafari™技術採用)により、スマートフォンやタブレットからNexStar Evolutionをワイヤレスで操作し、宇宙の探索が可能です。
- StarBright XLTコーティングを施した、コンパクトかつポータブルな150mmシュミットカセグレン鏡筒を採用。優れた透過率と解像度を提供します。
- 高性能なウォームギアとモーターを搭載した自動導入(GoTo)架台により、追尾精度を向上させ、ギアのバックラッシュを最小限に抑制しています。
- リチウム鉄リン酸(LiFePO4)充電式バッテリーを内蔵。1回の充電で、最大10時間の連続観測を可能にする大容量を確保しました。
- マニュアルクランプや搬送用ハンドルを統合した機能的な筐体設計。2つのアクセサリートレイに加え、スマートデバイスの給電に便利なUSBポートも装備しています。
Item#:CE-ASNE-12090
製品仕様
製品仕様
| 鏡筒情報 | |
|---|---|
| 光学系 | シュミットカセグレン式 |
| 口径 | 150mm |
| 焦点距離 | 1500mm |
| 口径比 | F10 |
| 接眼レンズ1の焦点距離 | 40mm |
| 接眼レンズ1の倍率 | 38倍 |
| 接眼レンズ2の焦点距離 | 13mm (0.51") |
| 接眼レンズ2の倍率 | 115倍 |
| ファインダー | StarPointerファインダー |
| 天頂プリズム | 天頂プリズム(31.7mm径) |
| 鏡筒 | アルミニウム |
| 有効最大倍率 | 354倍 |
| 有効最低倍率 | 21倍 |
| 極限等級 | 12.6等級 |
| 分解能(レイリー) | 0.93秒角 |
| 分解能(ドーズ) | 0.77秒角 |
| 集光力 | 459倍 |
| 中央遮蔽 | 56mm |
| 中央遮蔽率(直径比) | 37% |
| 中央遮蔽(面積比) | 14% |
| コーティング | StarBright XLT |
| 鏡筒長 | 406mm |
| 鏡筒径 | 184.15mm |
| 鏡筒重量 | 4.54 kg |
| アリガタレール | CG-5(幅狭) |
| 架台情報 | |
| 架台タイプ | コンピューター制御シングルフォークアーム経緯台 |
| 搭載可能重量 | 11 kg |
| 高さ調節範囲(架台・三脚含む) | 1193.8mm - 1752.6mm |
| 三脚脚径 | 38.1mm ステンレススチール |
| 架台重量 | 7 kg |
| アクセサリートレイ | あり |
| 三脚重量 | 5.44 kg |
| 旋回速度 | 9段階の速度設定 - 最大速度 4度/秒 |
| 追尾レート | 恒星、太陽および月 |
| 追尾モード | 経緯台、北半球および南半球 |
| GPS | なし |
| アリガタレール互換性 | CG-5 アリミゾ |
| AUXポート数 | AUXポート4基(ハンドコントローラーはいずれのAUXポートも使用可能) |
| オートガイドポート | なし |
| USBポート | あり(ハンドコントローラー入力および架台出力) |
| 電源 | 内蔵9.6V 4.5Ahリン酸鉄リチウムバッテリー(LiFePO4) |
| モータードライブ | DCサーボモーター |
| アライメント手順 | スカイアライン、1スターアライン、2スターアライン、オート2スターアライン、惑星アライン、クイックアライン、ラストアライメント、赤道儀北半球/南半球アライメント(赤道儀アライメントには赤道儀ウェッジが必要) |
| ピリオディックエラー補正(PEC) | なし |
| コンピューター制御ハンドコントローラー | 2行×18文字バックライト付液晶ディスプレイ、19個のLEDバックライト付ボタン、PC接続用USB 2.0ポート |
| NexStar+ データベース | 40,000個以上(厳選された220個の「ベスト・ディープスカイ(深宇宙)天体」および太陽系天体を含む) |
| ソフトウェア | Celestron Starry Night Special EditionソフトウェアとSkyPortalアプリが付属 |
| 総重量 | 17.23 kg |
| 付属品 | 鏡筒シングルフォークアーム架台・三脚アクセサリートレイ内蔵Wi-Fi内蔵リン酸鉄リチウムバッテリーNexStar+ハンドコントローラー40mmおよび13mm接眼レンズStarPointerファインダービジュアルバック天頂プリズム4プラグACアダプター |
| 補足情報 | |
| 太陽観測時の注意事項 |
|

よく一緒に検討されている商品
Item:CE-ASNE-12090

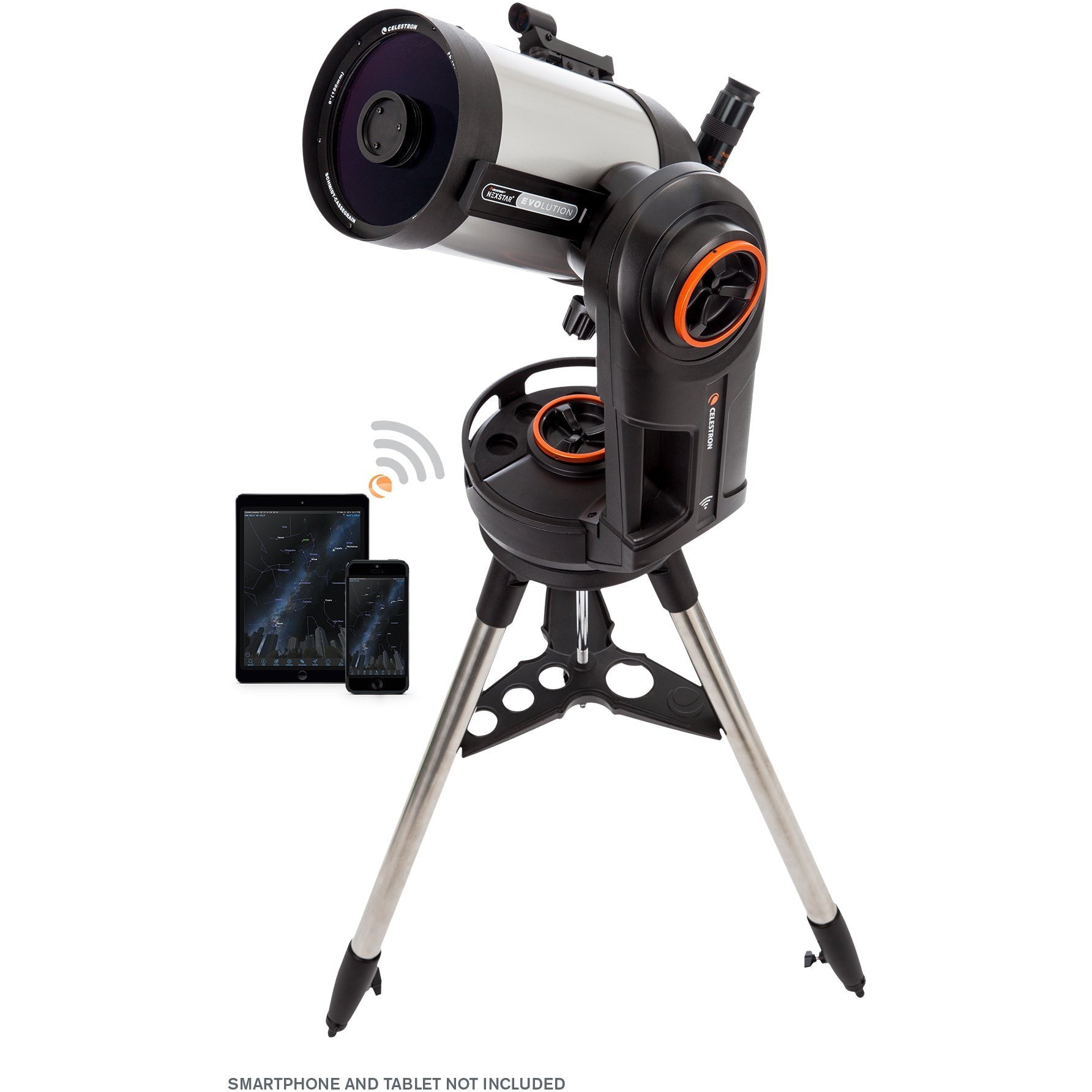

NexStar Evolution(ネクスター エボリューショ)は、Wi-Fi機能を標準統合した初のシュミットカセグレン望遠鏡です。ハンドコントローラーを使用せず、スマートフォンやタブレットからのタップ操作で天体導入が可能です。iOSおよびAndroid対応の専用アプリ「SkyPortal」(SkySafari™技術採用)を介して、ワイヤレスネットワークに接続し、宇宙の探索を効率化します。
プラネタリウム・インターフェースにより、リアルタイムの星空表示や、現在地・時刻に基づいた観測推奨天体リストの表示が可能です。独自の「SkyAlign」アライメント手順がアプリに組み込まれているため、数分で観測準備を完了できます。
ユーザーの利便性を追求した設計
長年のユーザーフィードバックに基づき、観測現場での利便性を最大化する設計が施されています。
内蔵バッテリー駆動: 民生用望遠鏡として初めてリチウム鉄リン酸(LiFePO4)バッテリーを内蔵。1回の充電で最大10時間の連続観測が可能です。
外部給電機能: 本体にUSB充電ポートを搭載しており、観測中にスマートフォン等のデバイスへの給電が行えます。
インテリジェント・パワーマネジメント: バッテリー残量を検知し、電力を最適化する省電力モードを搭載しています。
現場での運用効率を高めるハードウェア仕様

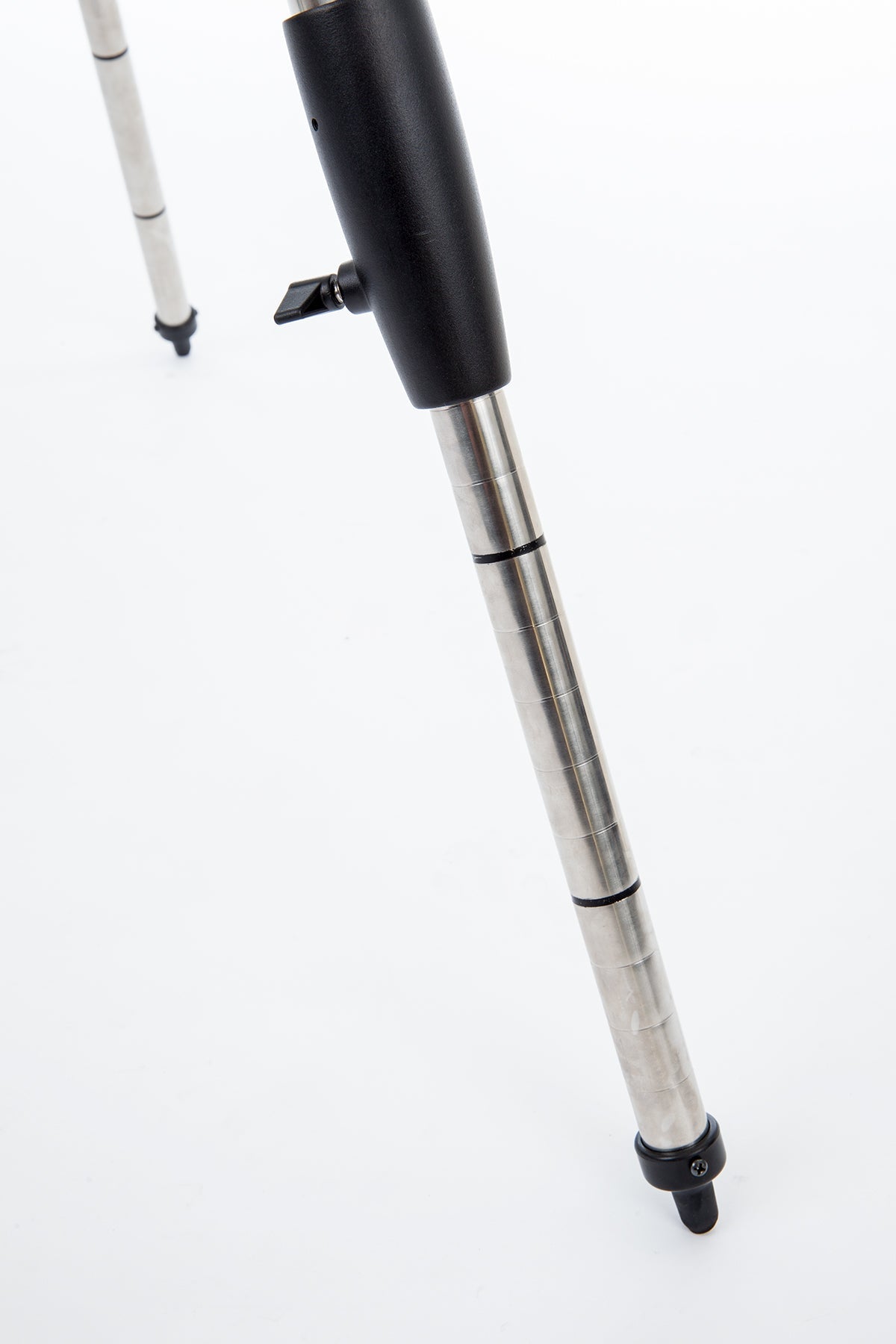

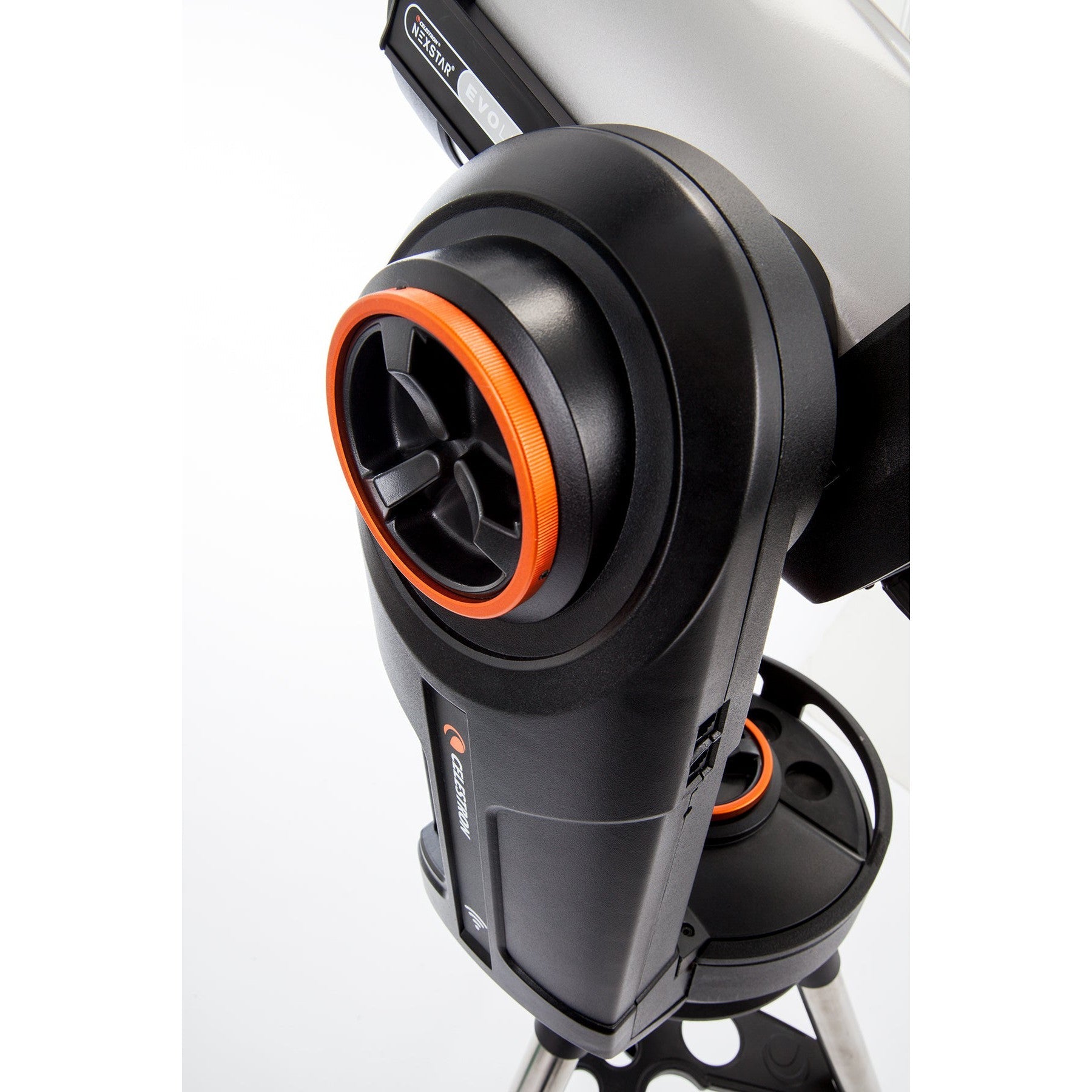

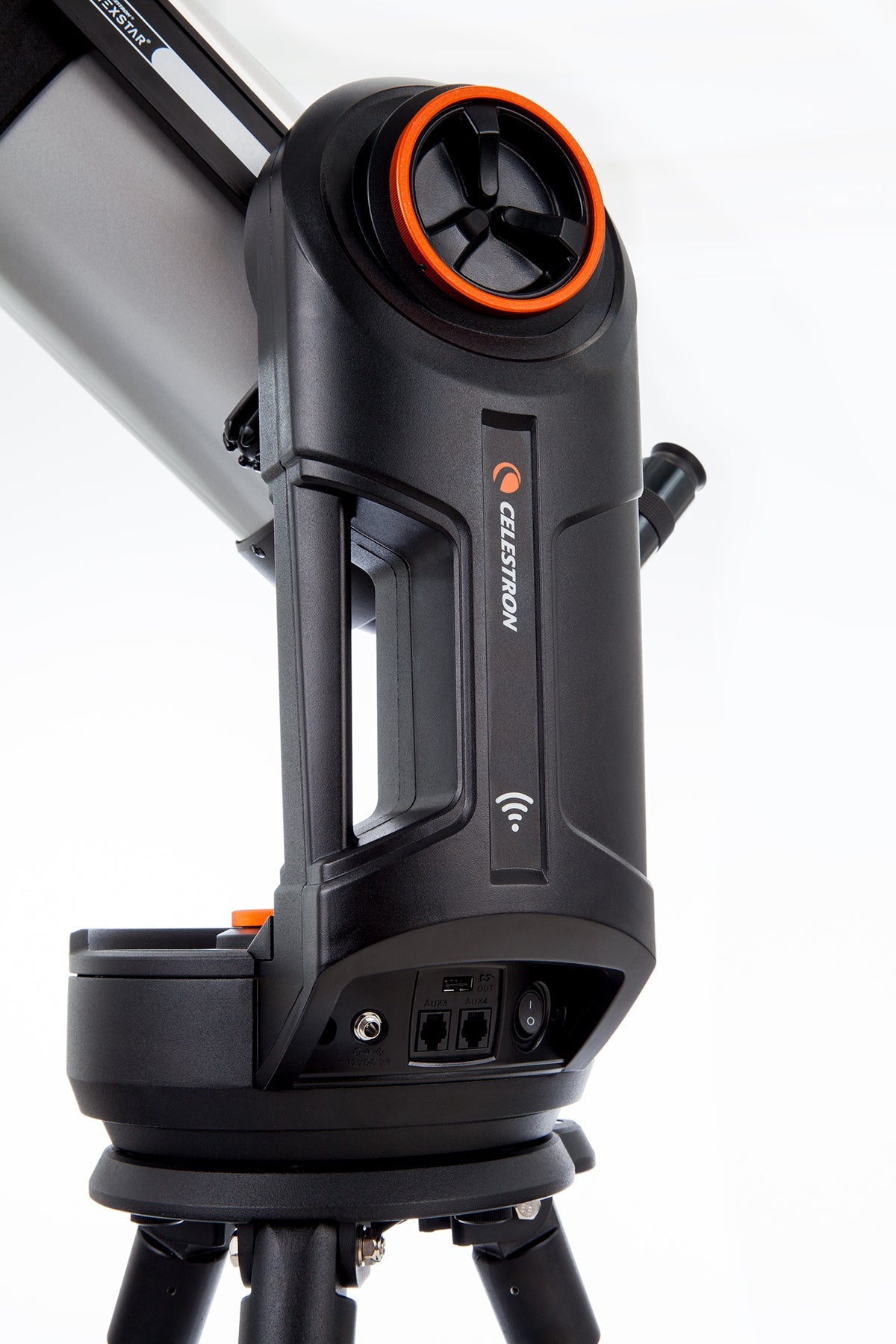

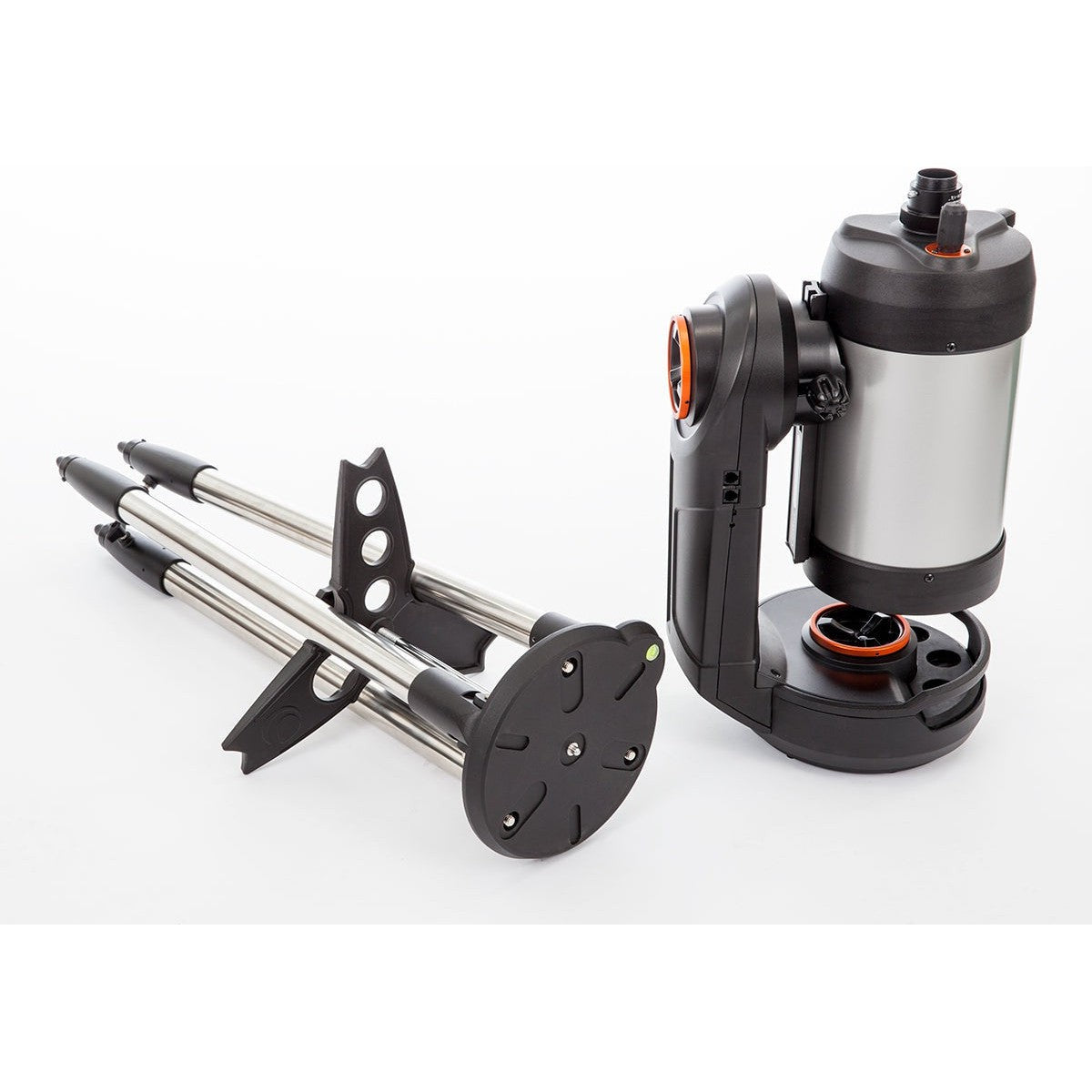

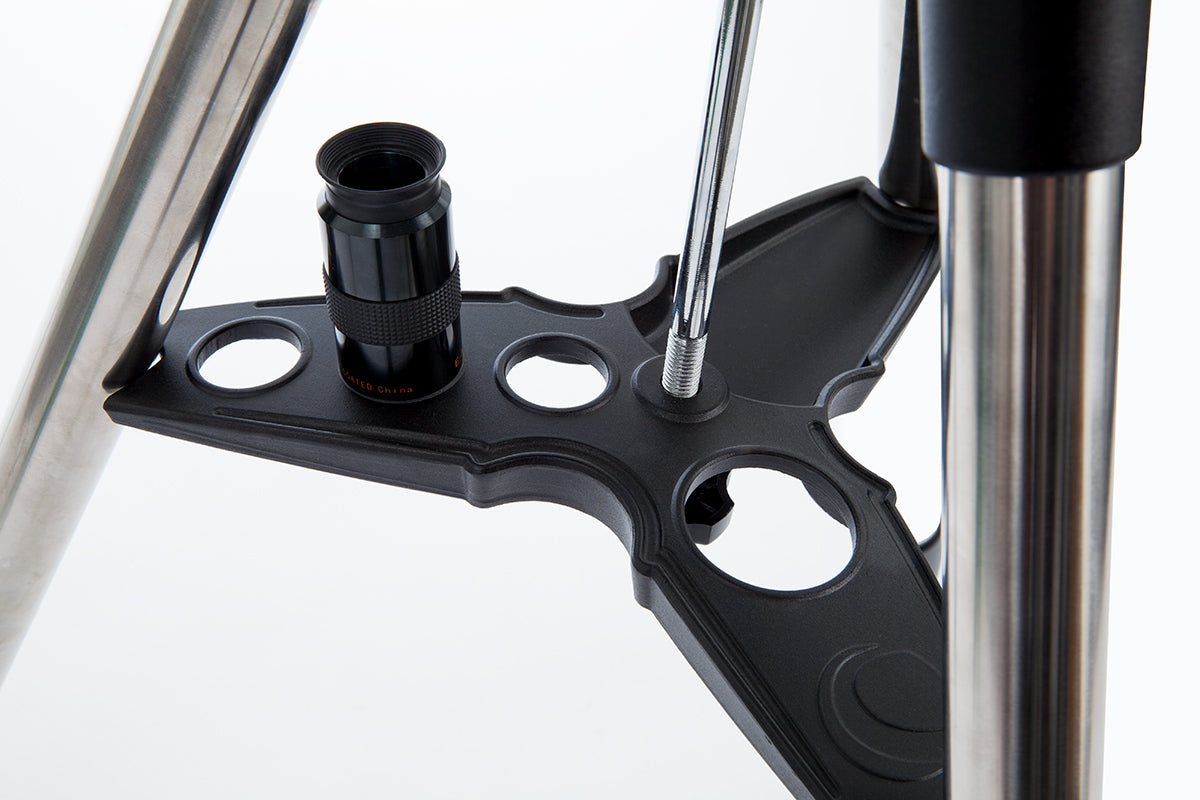

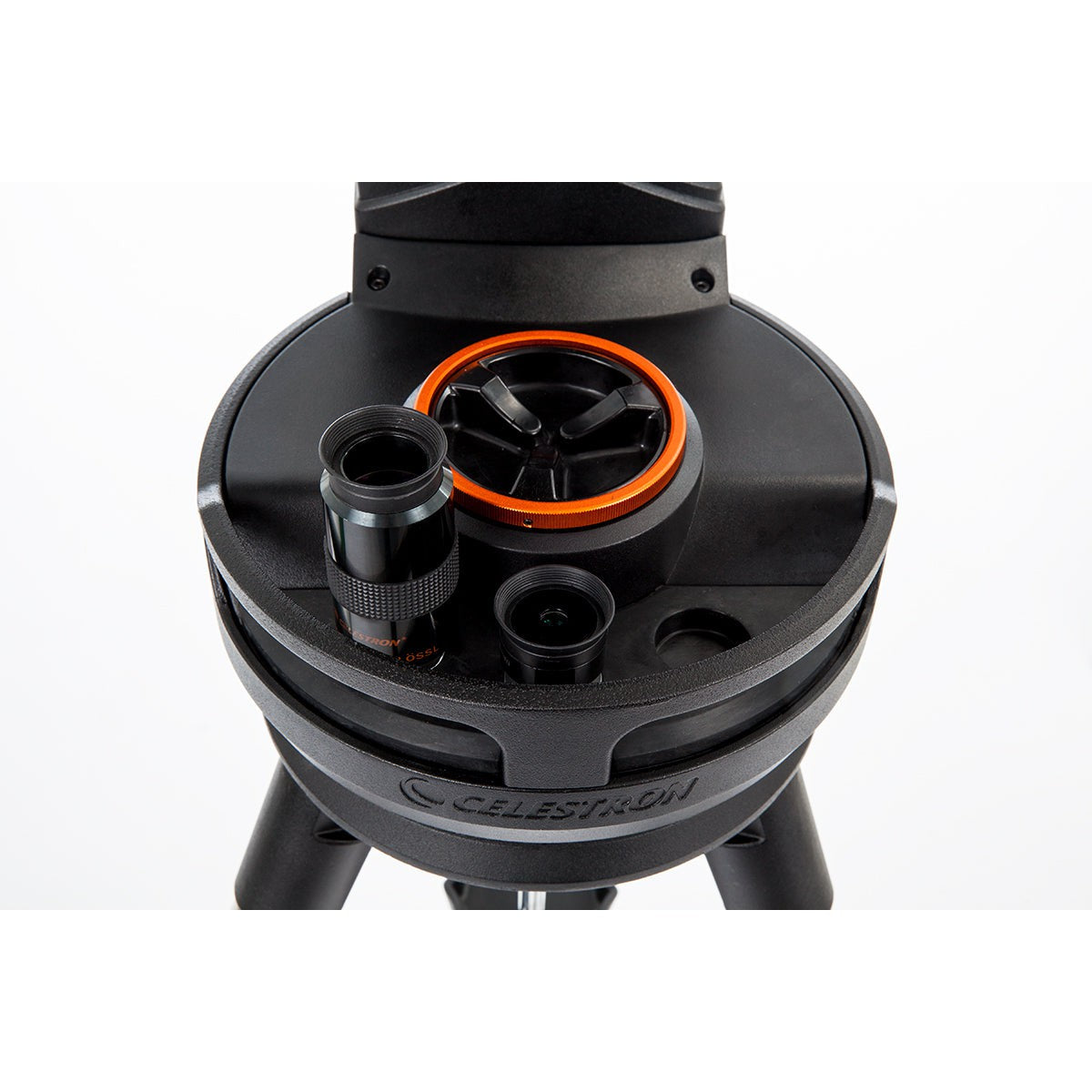

大型のエルゴノミクス・ハンドルの採用により、迅速かつ安全な設置が可能です。オールメタル製の三脚には、脚部に目盛り(エッチング加工)が施されており、精度の高い水平出しを支援します。また、高度・方位の両軸にマニュアルクランプを装備しているため、電源オフ時でも手動でのポインティングが可能です。アクセサリートレイには最大7個のアイピースを収納でき、調整可能な赤色LED照明が夜間の視認性を確保します。
天体撮影に対応する高精度追尾
150mmモデルのNexStar Evolutionは、天体写真撮影の導入機としても優れた性能を発揮します。この価格帯のフォークマウント機としては唯一、真鍮製ウォームギアと改良型モーターを採用しており、追尾精度が大幅に向上しています。

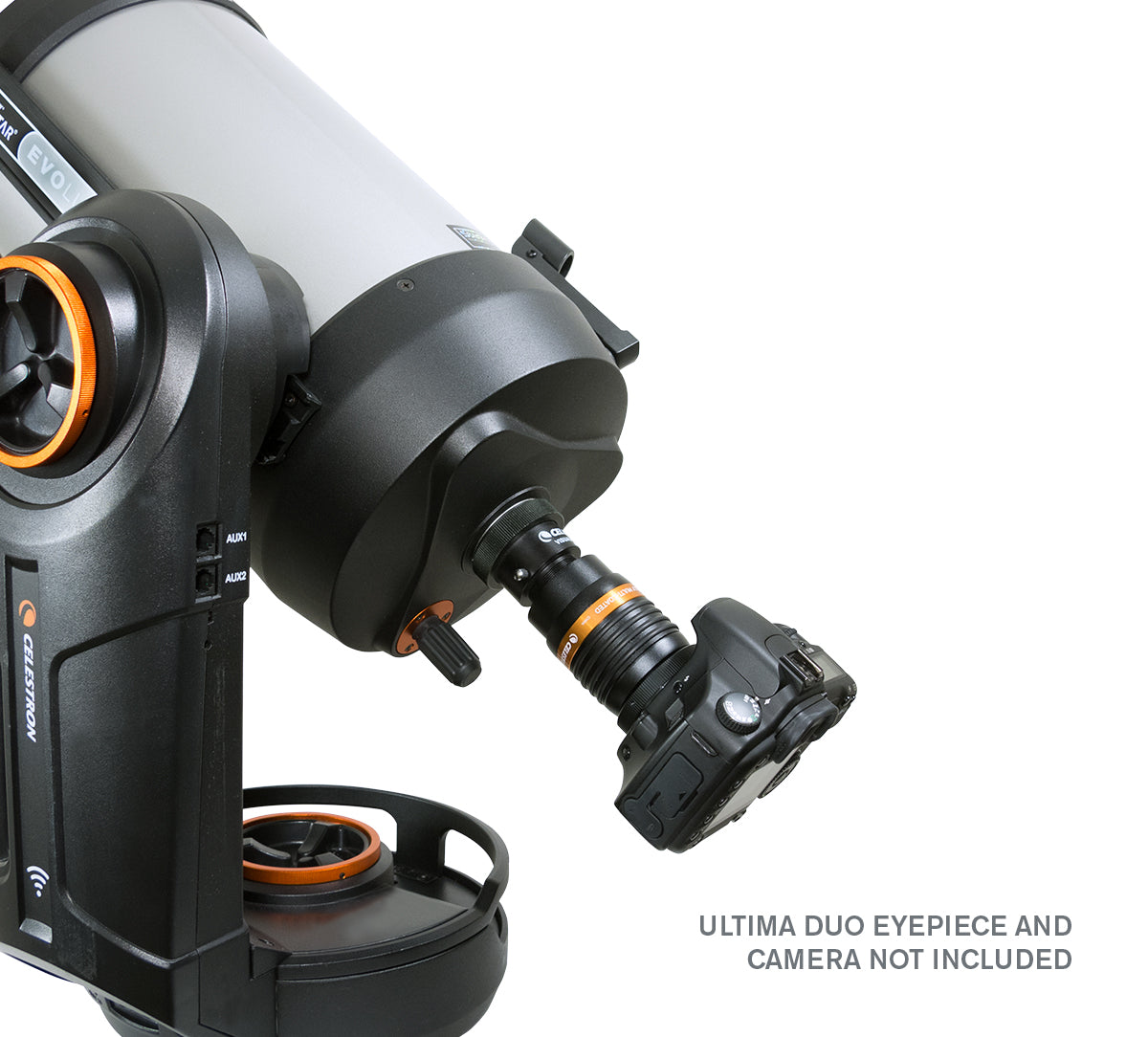

追尾性能: オリオン大星雲などの深宇宙天体も、デジタル一眼レフカメラを装着するだけで追尾・撮影が可能です。
拡張性: より高度な長時間露光撮影には、HD Proウェッジ(別売、CPC三脚との併用を推奨)の追加により対応可能です。
光学系: StarBright XLTコーティングを施したシュミットカセグレン光学系により、眼視・撮影の両面でコントラストの高いシャープな像を提供します。
インターフェースおよび付属品

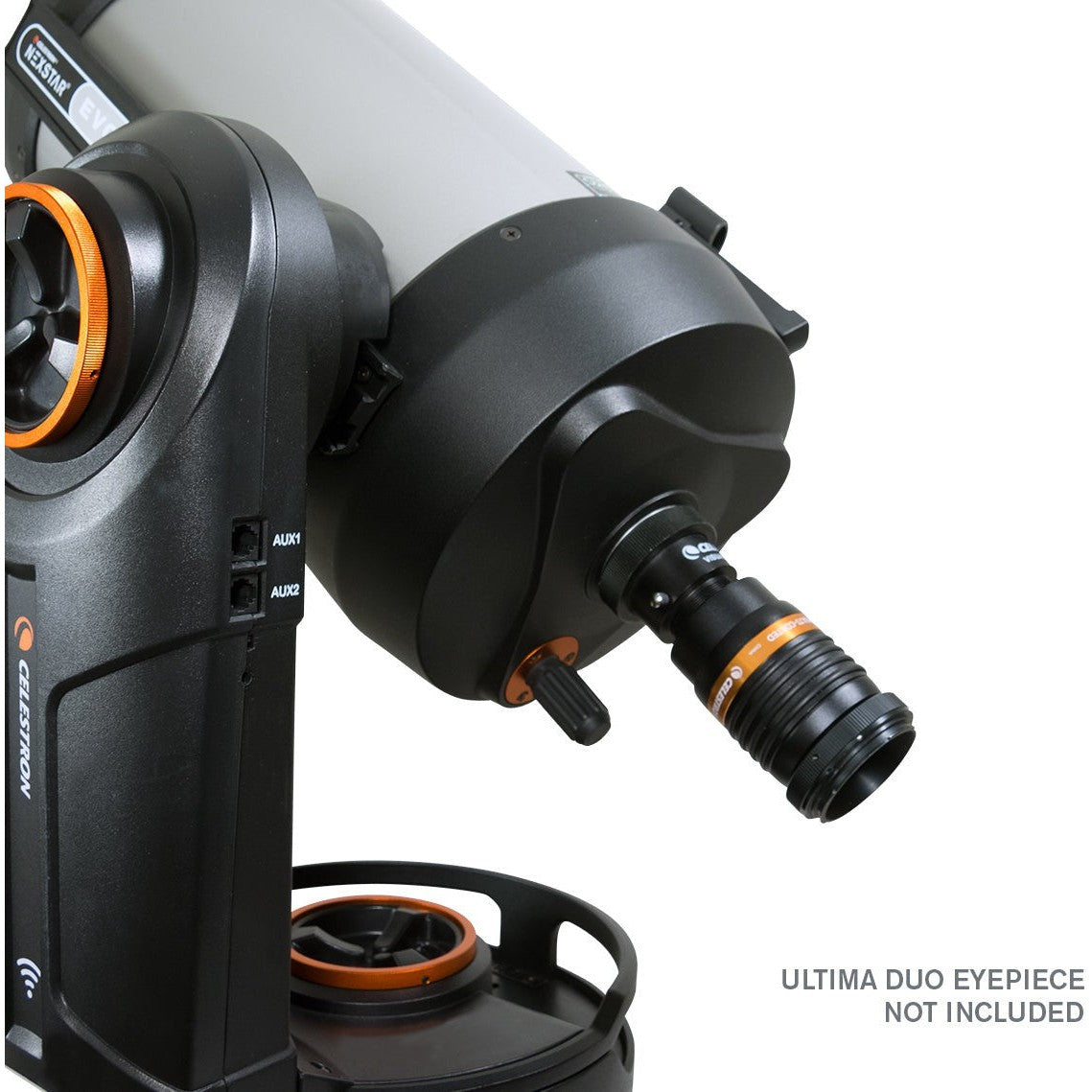

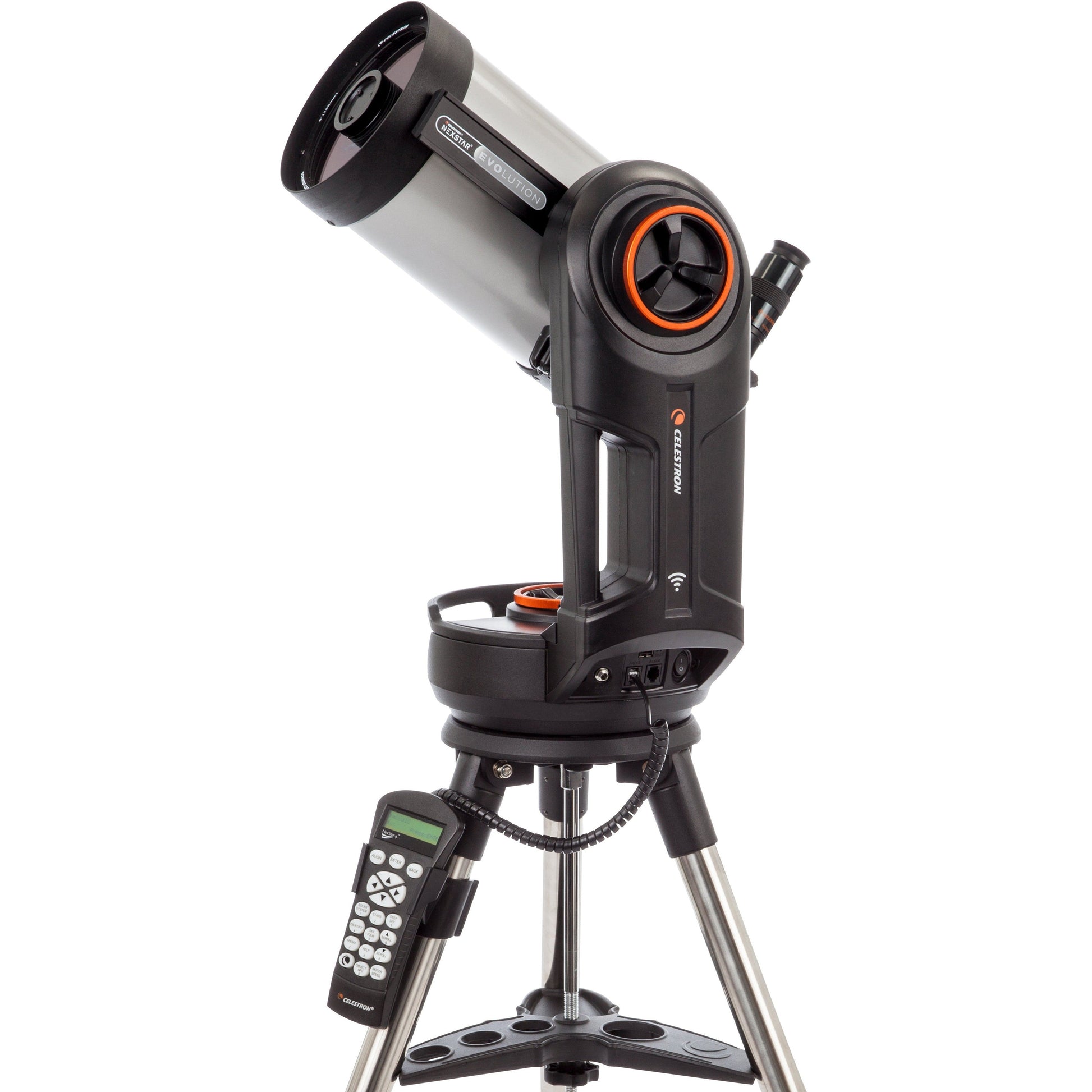

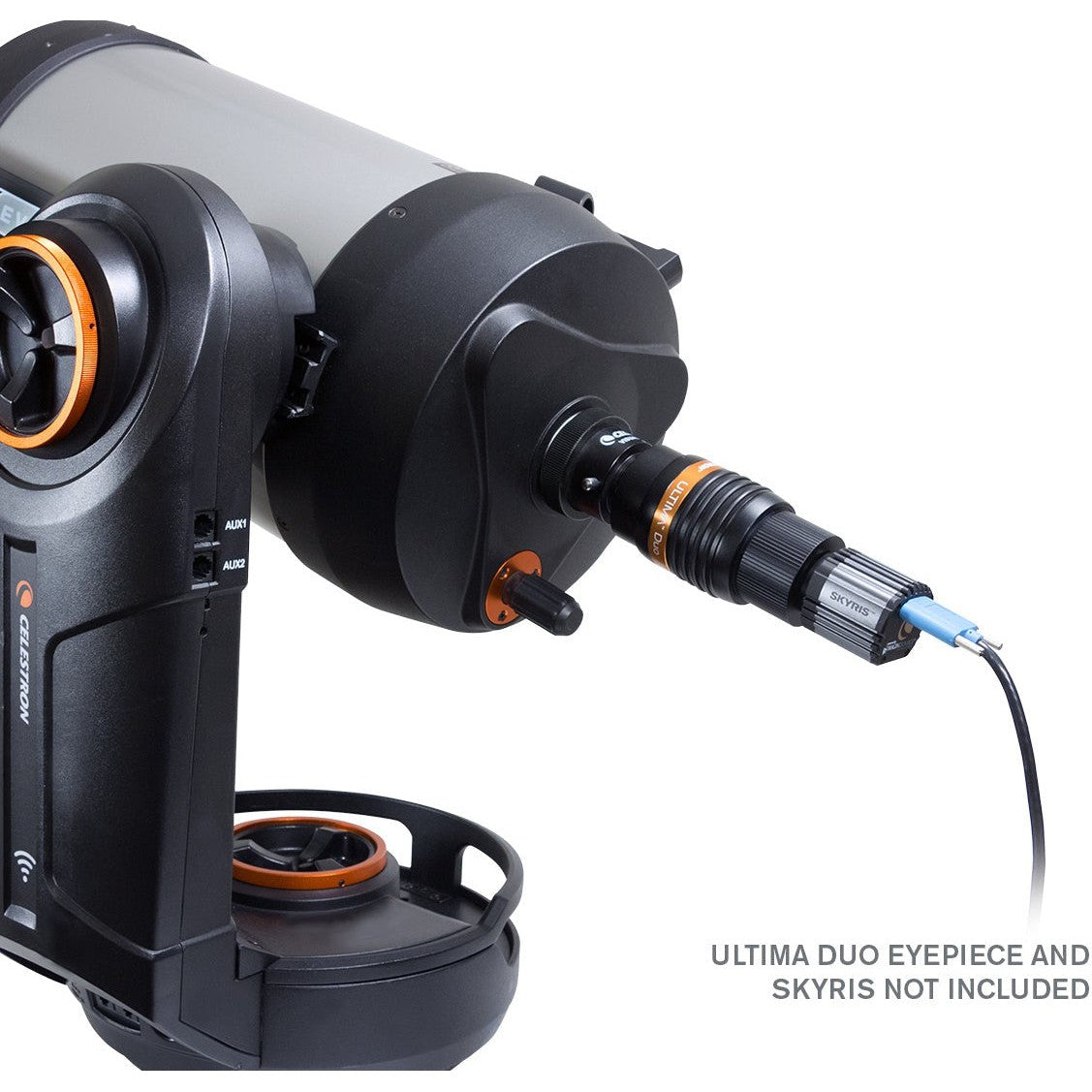

フォークアームの上下に計4つの拡張(AUX)ポートを装備。アプリ操作時は不要ですが、従来のNexStar+ハンドコントローラーも付属しています。その他、スターポインターファインダー、1.25インチ(31.7mm)アイピース2本、1.25インチ(31.7mm)天頂プリズム、ACアダプターが同梱されています。
Suggested Accessories
Categories
Q:
What is the heaviest recommend load for mounting a camera in the Fastar / HyperStar configuraton?
What is the heaviest recommend load for mounting a camera in the Fastar / HyperStar configuraton?
We recommend a load of no more than 10 lbs. at 2.3 inches away from the 6" Schmidt corrector.
Q:
Why doesn’t my red dot finderscope match the image on the box/website?
Why doesn’t my red dot finderscope match the image on the box/website?
Celestron is making a change to the finderscope shipped with some Celestron telescopes. In some cases, you may receive a finderscope that is different in appearance than the one pictured on the gift box, manual, Quick Setup Guide, or website. We apologize for any inconvenience this may cause. Rest assured that the finders are identical in performance and features. The main difference is the location of the battery compartment and, therefore, the battery installation instructions.
If your red dot finderscope looks like the unit pictured here, you can ignore this message.

If you received a red dot finderscope that looks like the unit pictured here, follow the instructions below to replace the battery:

1. The battery compartment on this finderscope is located on top of the unit. Use a Philips-head screwdriver to loosen the screw holding the battery door closed. The screw is captured and will not fall out when you open the battery door.

2. Lift the battery door open to expose the CR-2032 button battery.
3. With your fingernail on either side of the battery, pry the battery up and out of the battery compartment.
4. Place the new CR-2032 battery, positive (+) side up, under the two copper battery clips at the front of the battery compartment.


5. Press the battery down to snap it into the plastic battery clips on the opposite side of the battery.
6. Close the battery door and tighten the Phillips-head screw to secure the door in place.
Q:
I’ve heard there is a firmware update for NexStar Evolution. What’s it for, and should I install it?
I’ve heard there is a firmware update for NexStar Evolution. What’s it for, and should I install it?
Yes! This important update improves your NexStar Evolution mount’s tracking performance and electrical stability, along with helping to prevent potential motor control board issues seen in a small number of units. It also adds a new feature that shuts down auxiliary devices when the mount’s internal battery gets critically low. To make the update process quick and easy, our engineers created a special version of the Celestron Firmware Manager (CFM) just for Evolution owners. We recommend all NexStar Evolution owners install it by visiting celestron.com/evocfm
| Manuals: | |
|---|---|
| 【日本語】NexStar 6SE / NexStar 8SE クイックセットアップガイド | Download |
| NexStar Plus Hand Control Manual | Download |
| Addendum for NexStar Evolution Telescopes | Download |
| NexStar Evolution Manual | Download |
| Schmidt-Cassegrain Optics Manual | Download |
| Software & Firmware: | |
| CPWI Software | Download |
| NexRemote Telescope Control Software | Download |
| Updating your NexStar Evolution mount with Celestron Firmware Manager (CFM) |
Download
In this document, we’ll review all the steps for updating a Celestron Evolution mount’s firmware with our tool, Celestron Firmware Manager (CFM). We’ve included separate instructions for Windows and MacOS. This document takes you to a special release of CFM exclusively for Evolution mounts. You need a wired connection to perform this update. Click for more details. |
| Other Product Files: | |
| SCT & EdgeHD Collimation Guide | Download |
| How to Align a Red Dot Finder to Your Telescope Video | Download |
| Solar Safety Warning | Download |
| What are the Sizes of Collimation Screws | View |
| Celestron NexStar+ Hand Control Troubleshooting Guide | Download |
