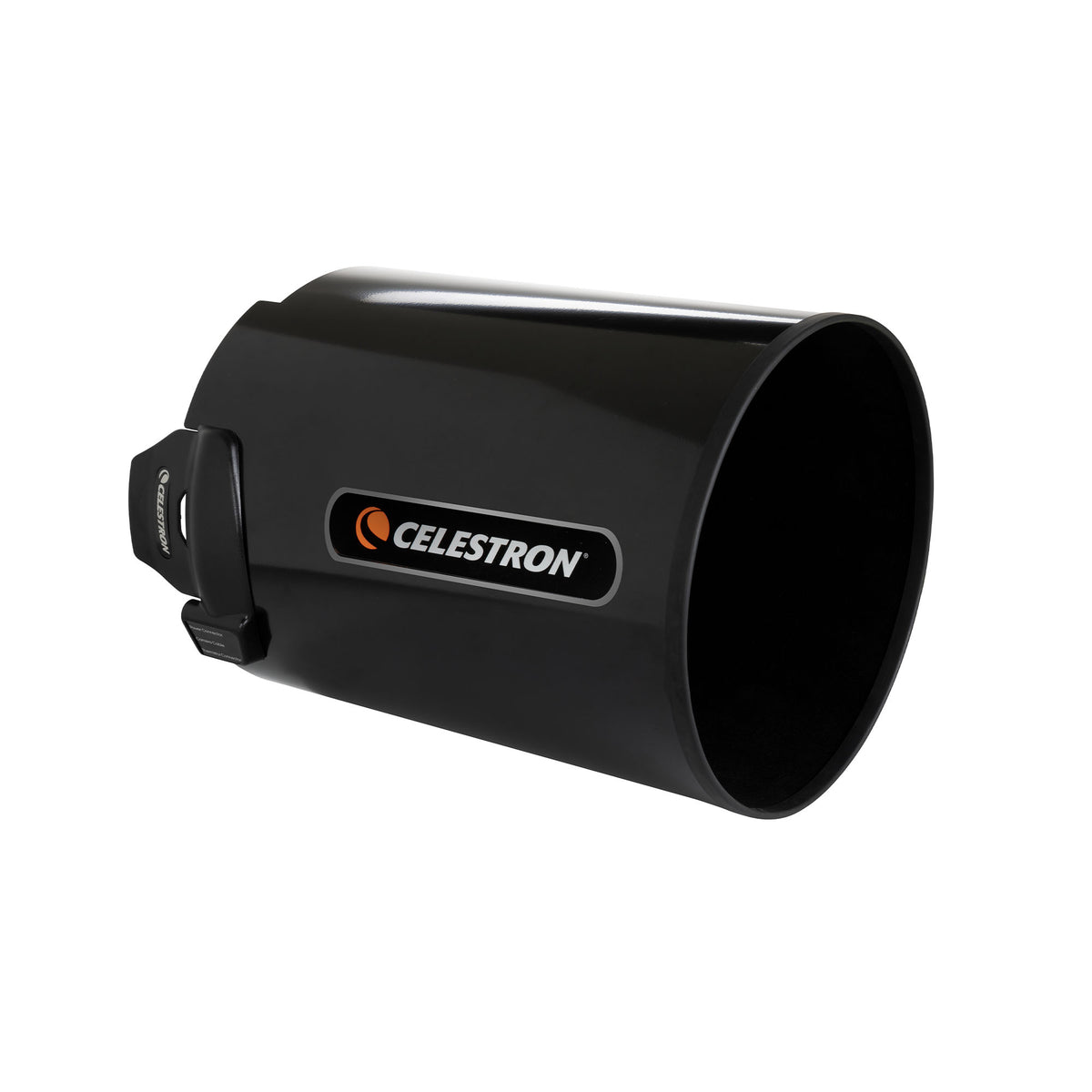

キャップ付アルミフード 8インチ用|CE-AAAF8-94021
キャップ付アルミフード 8インチ用|CE-AAAF8-94021
残り 1 個
受取状況を読み込めませんでした
2年保証(電子部品は1年)
- 8インチ シュミットカセグレン、EdgeHD、RASA望遠鏡鏡筒に対応
- シュミット補正板の結露発生を防ぎます
- 光軸外のグレアが光学系に入るのを防ぎます

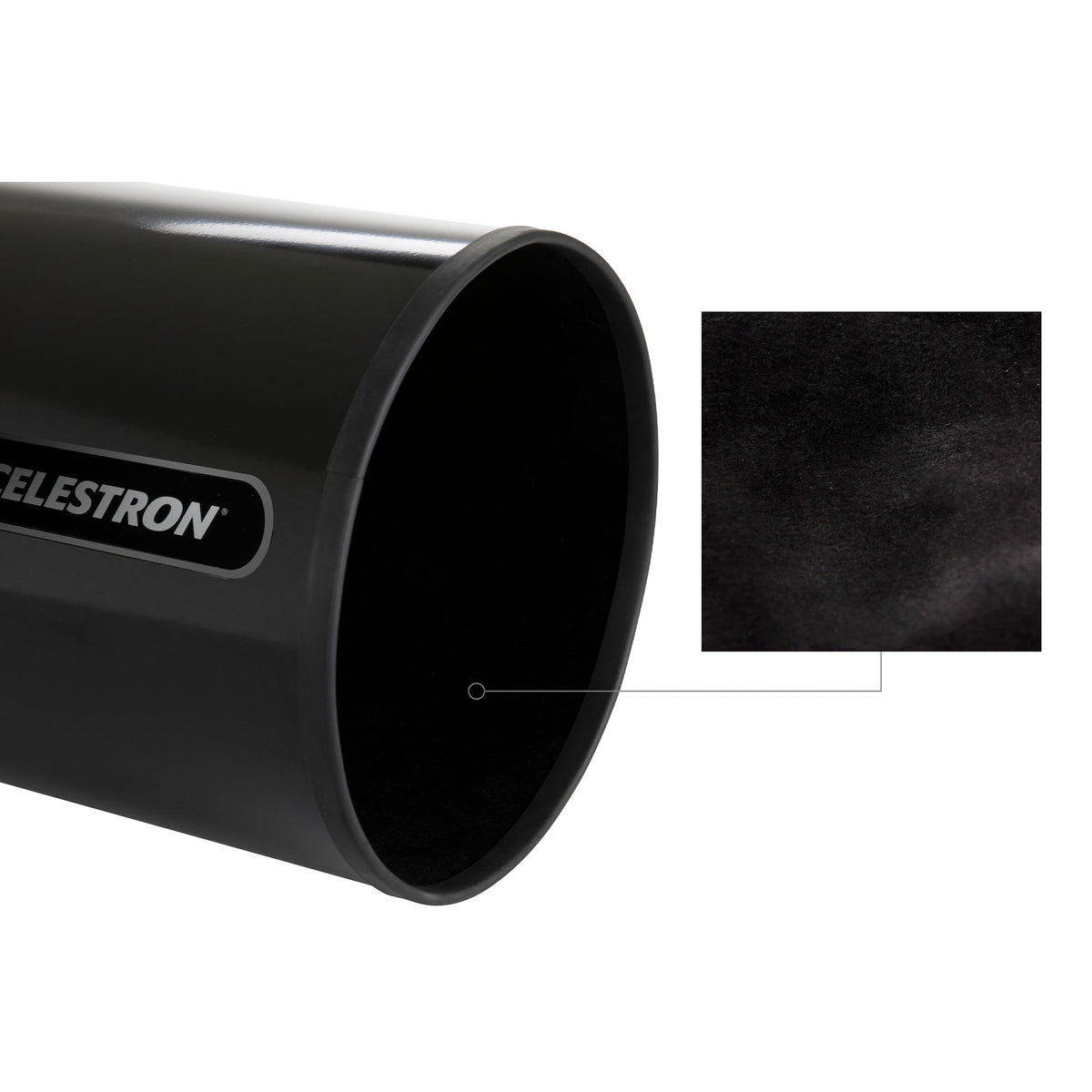

- 堅牢なボディと迷光を低減するベルベット張り内面
- 簡単に取り付け・取り外しができる2つの調整可能クリップ
- フード底部にケーブル管理機能 - Celestron結露防止リングとの併用に最適
- 付属のカバーキャップで、未使用時に望遠鏡をほこりから守ります
Item#:CE-AAAF8-94021
製品仕様
製品仕様
| 標準仕様 | |
|---|---|
| 素材 | アルミニウム(プラスチック製取り付けクリップ付き)、内部ベルベット張り |
| カバーキャップ | アルミニウム製 - 付属 |
| 重量 | 0.81kg |
| サイズ | 直径241.3mm x 長さ314.96mm |
| ケーブルスロット寸法 | 幅31.75mm x 長さ38.1mm |
| カバーキャップ重量 | 272.15g |

CE-AAAF8-94021
Celestron アルミニウム結露防止フードとカバーキャップは、野外で望遠鏡鏡筒を保護するための必須アクセサリーです。結露防止フードは、シュミット補正板から夜空への放射冷却を抑えることで、レンズ表面の温度を露点以上に長く保ち、結露の発生を防ぎます。さらに、迷光をブロックして画像コントラストを向上させるため、より良い観測と天体撮影が可能になります。8インチ EdgeHD、RASA、またはシュミットカセグレン(2006年以降製造)望遠鏡鏡筒専用に設計されているため、安心してご使用いただけます。詳細はFAQをご覧ください。
構造

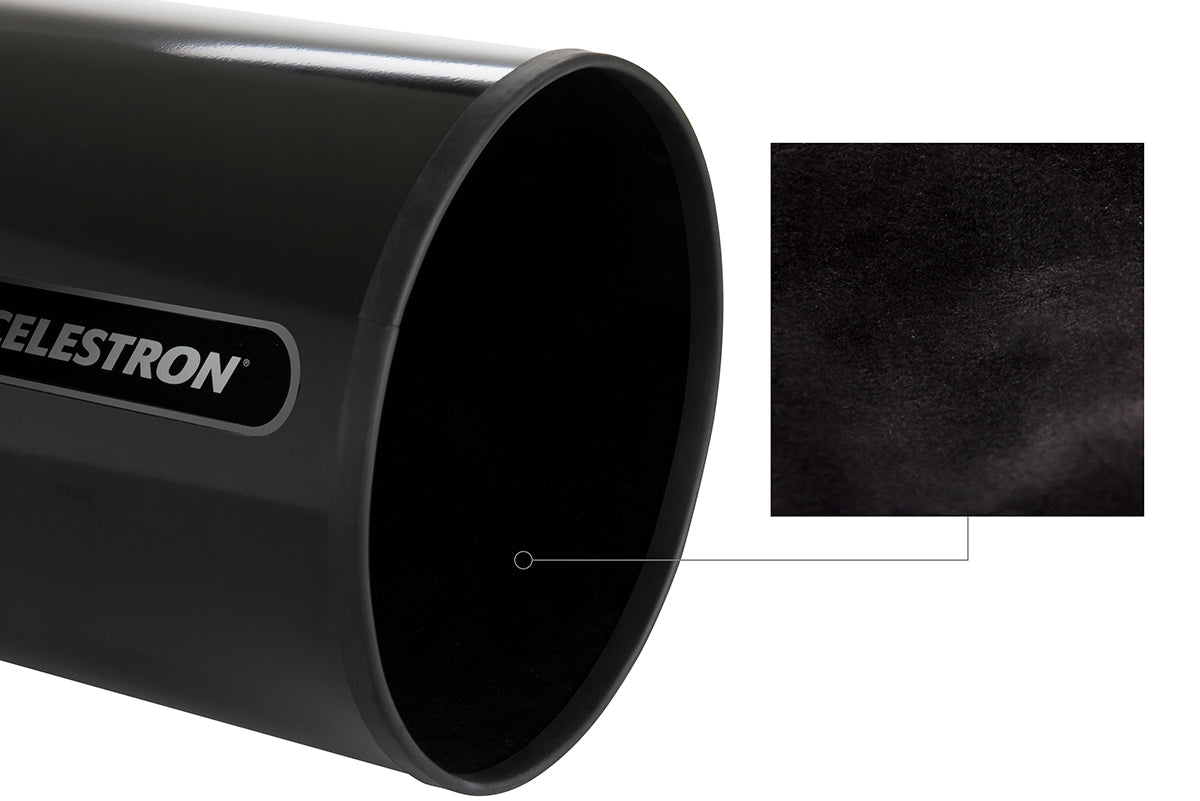

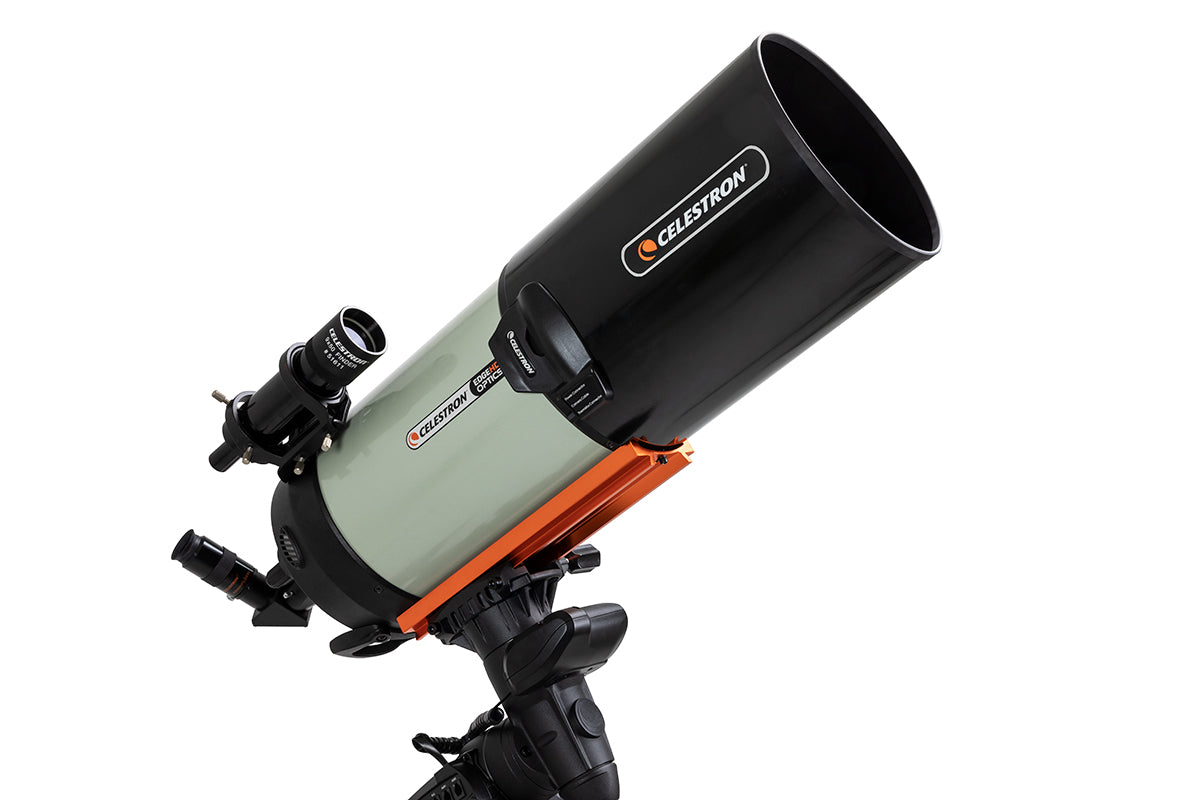

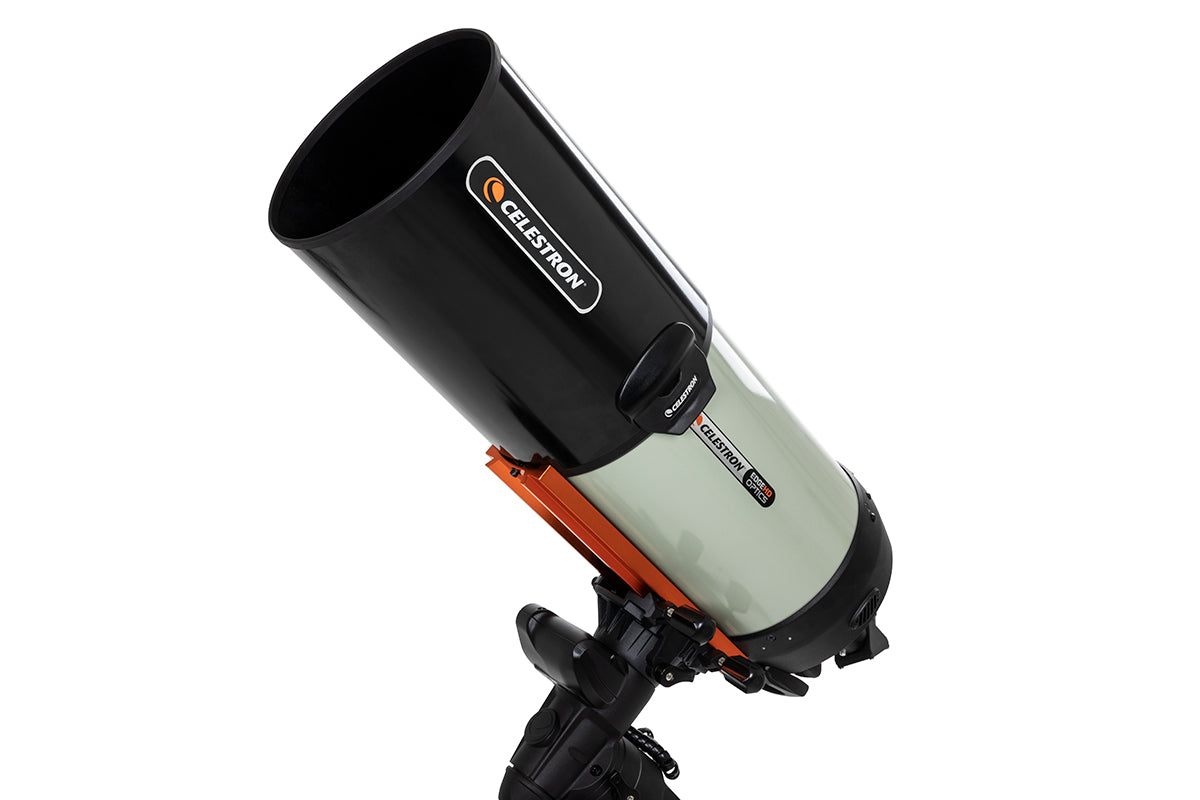

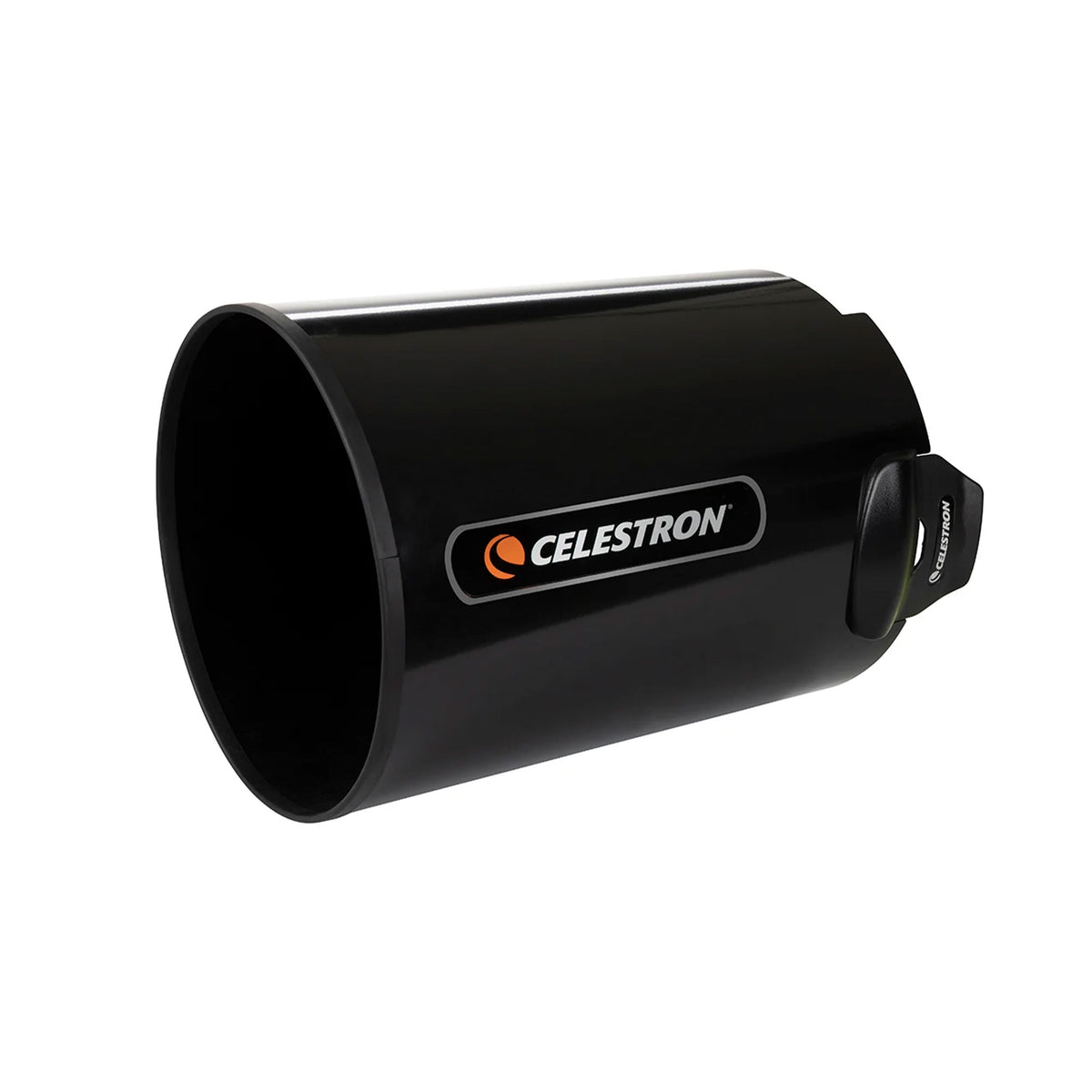

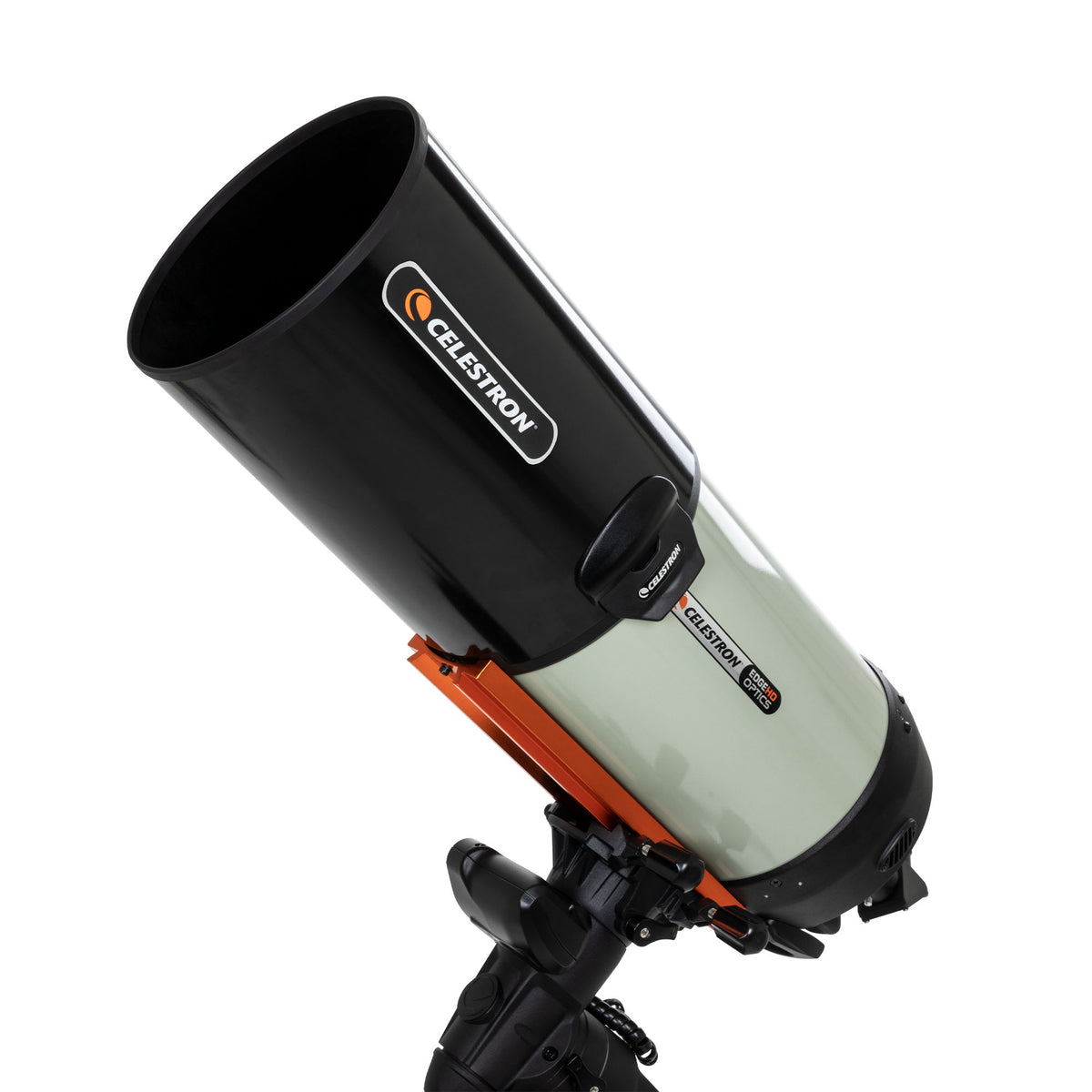

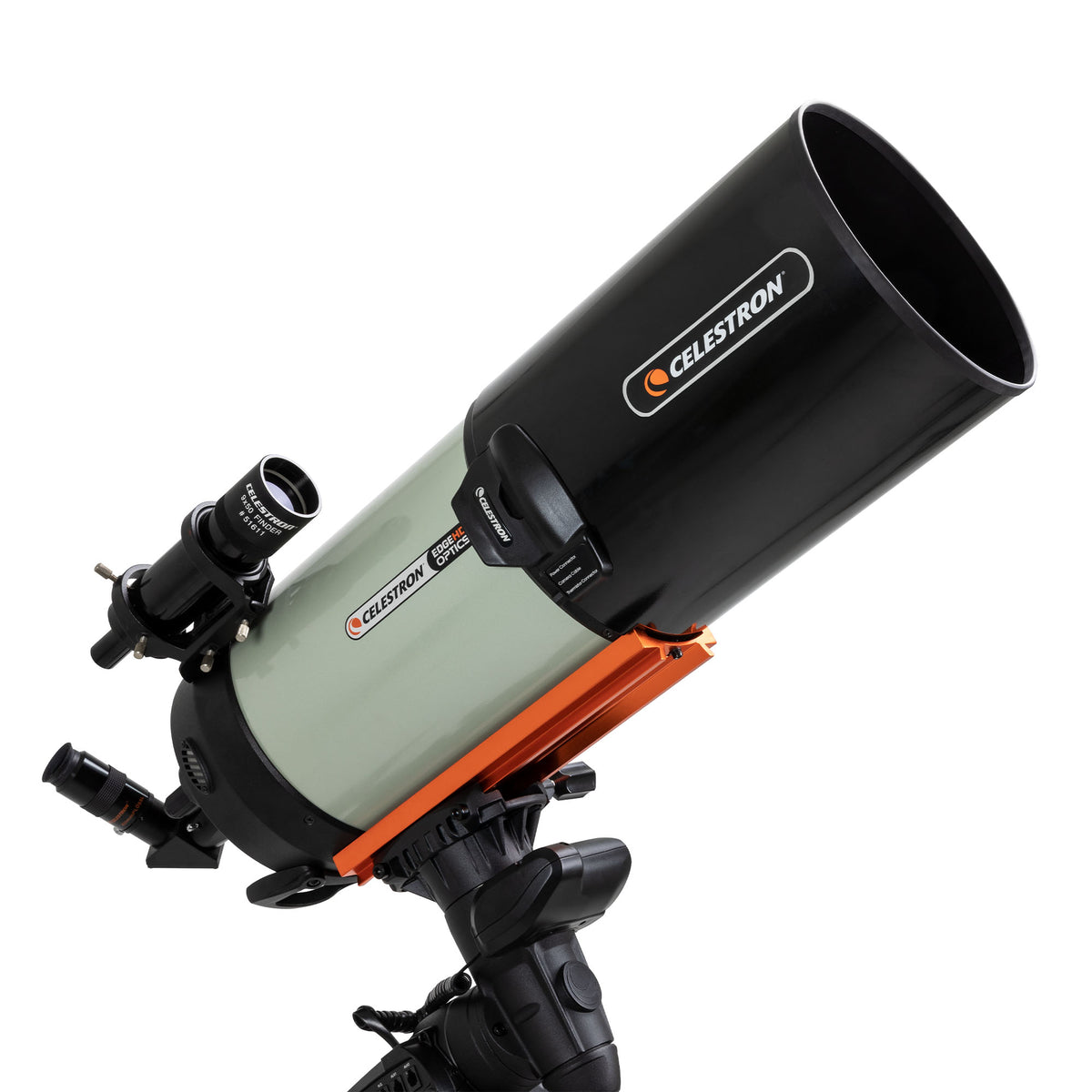

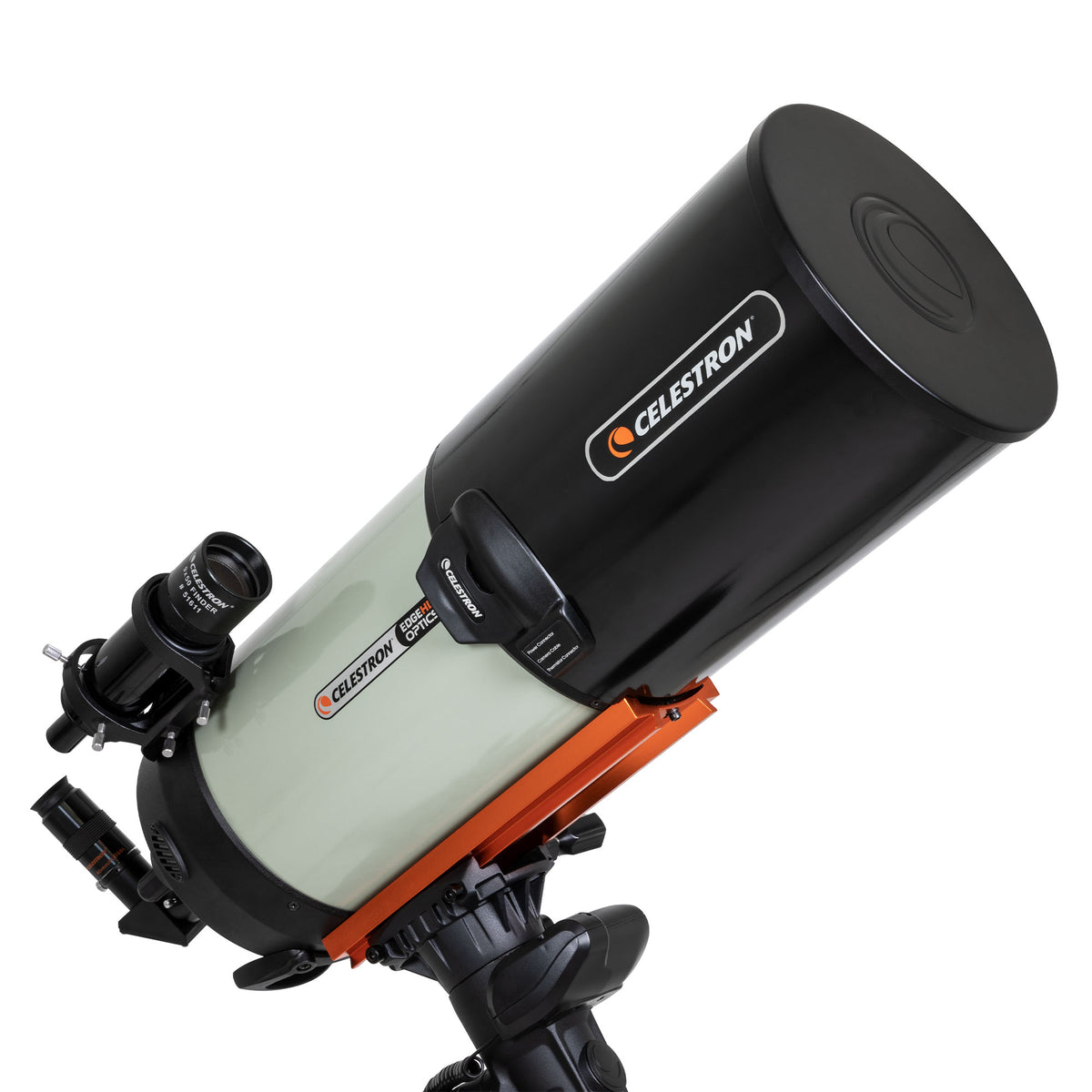

アルミニウム結露防止フードは、8インチ Celestron 望遠鏡鏡筒にぴったりフィットします。外側は折れたり曲がったりしない堅牢なアルミニウム製シリンダーで、内側はベルベット張りになっており、迷光と余分な湿気を吸収して、観測・撮影時の最適なコントラストを実現します。2つの調整可能なクリップで望遠鏡鏡筒にしっかりと固定できます。

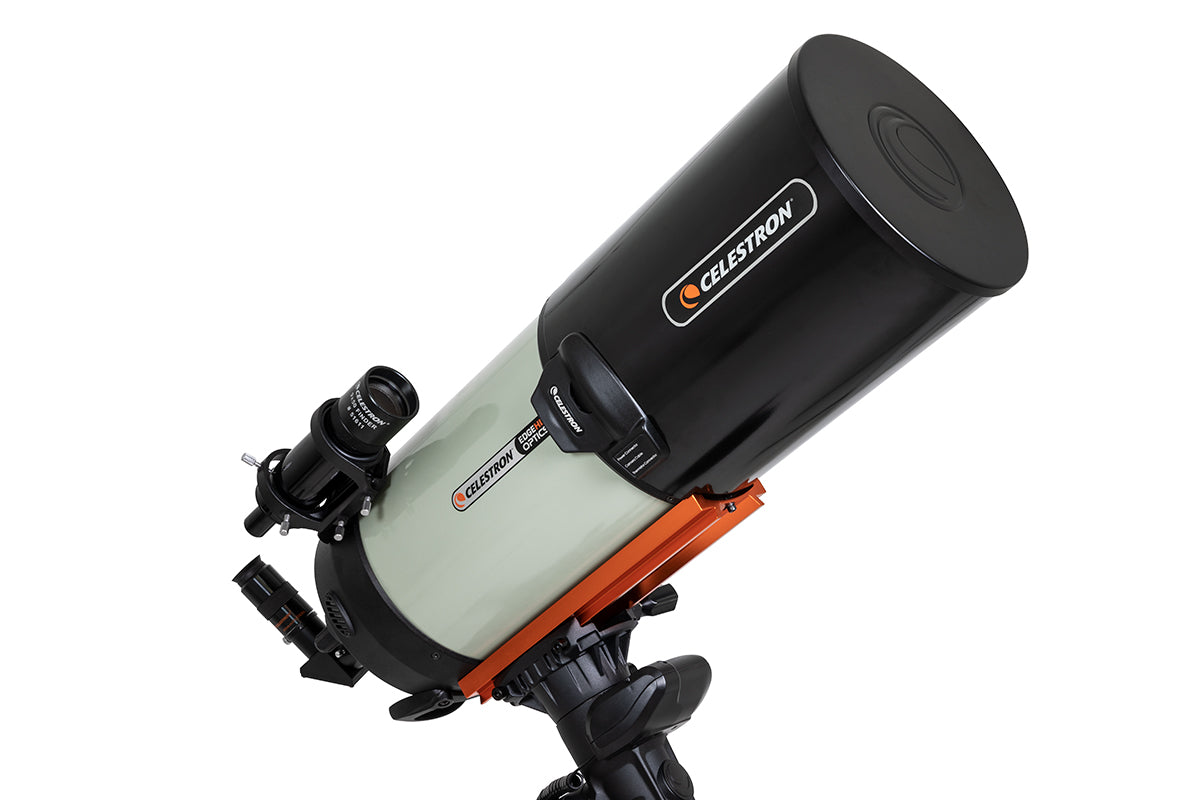

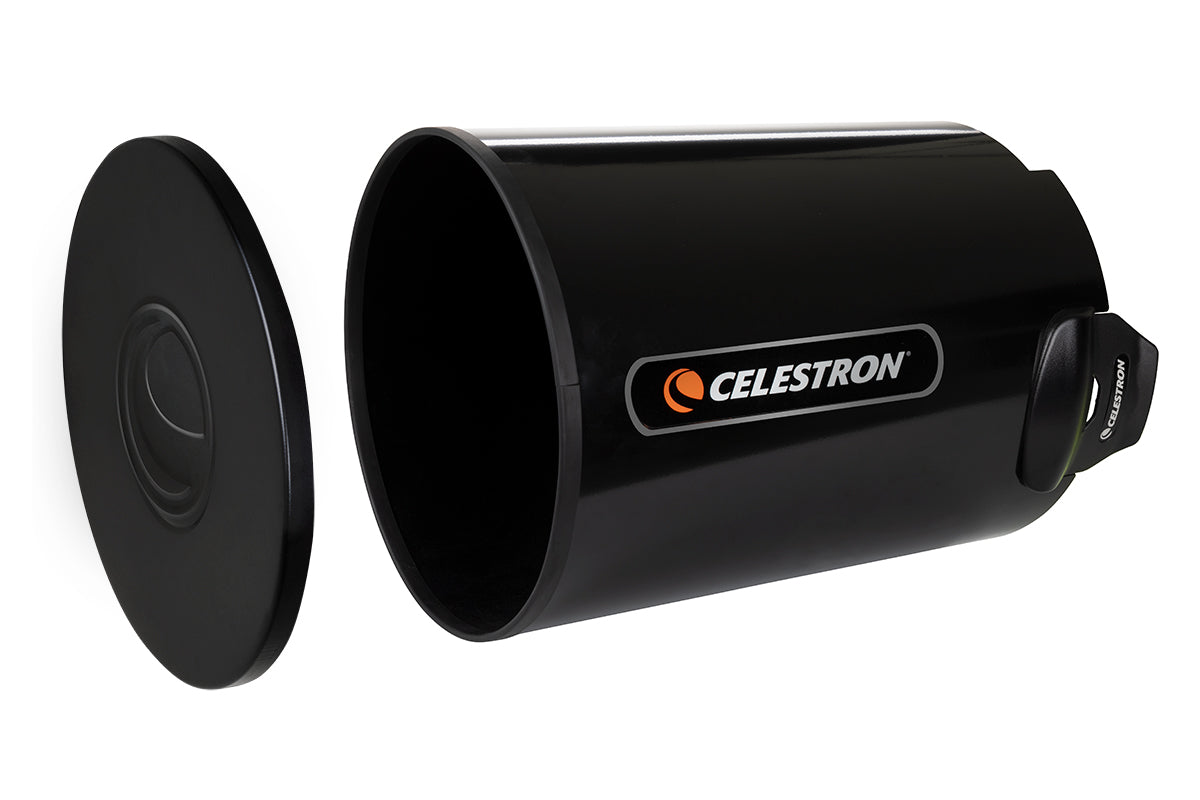

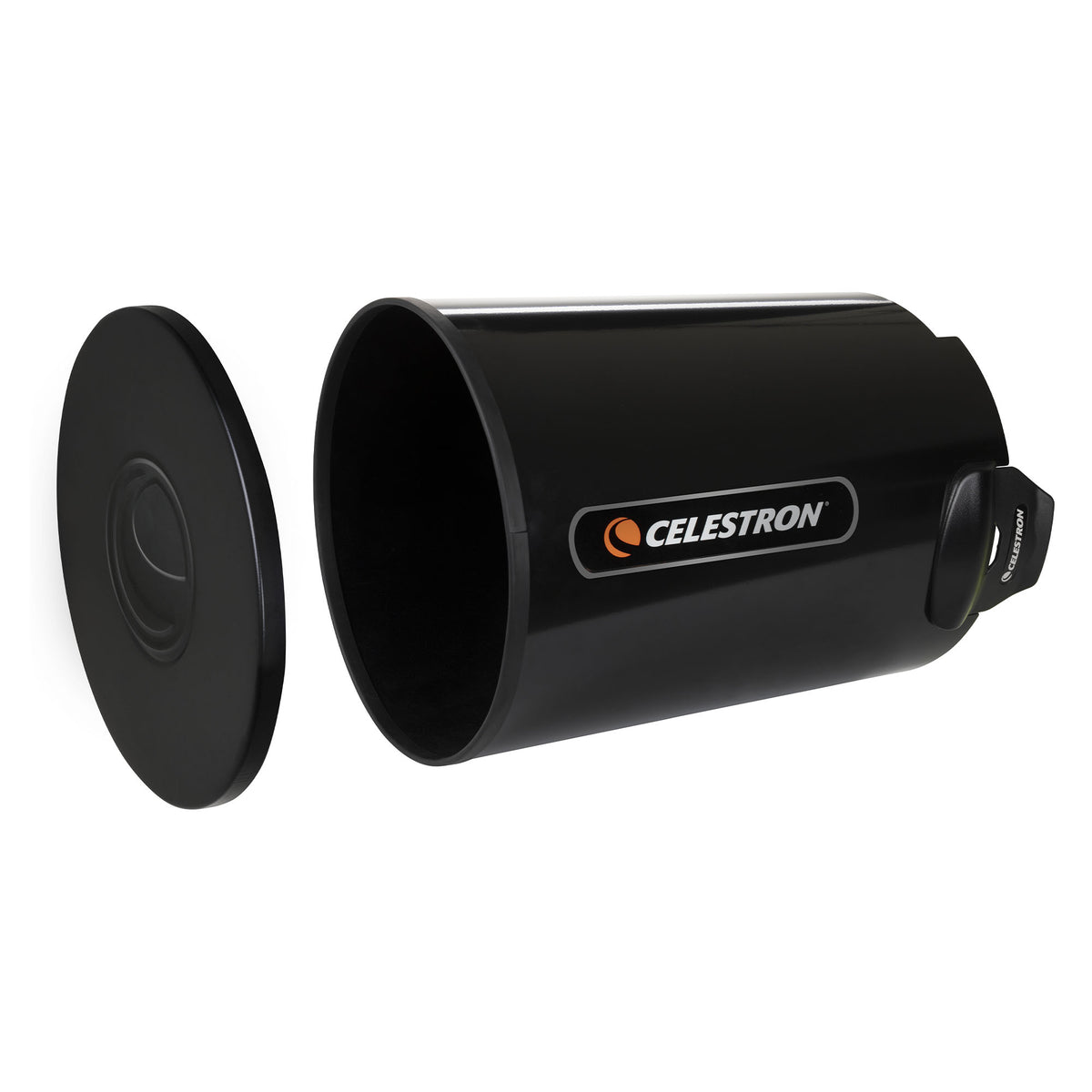

カバーキャップも耐久性と軽量性を兼ね備えたアルミニウム製です。望遠鏡を使用しないときは、結露防止フードにカバーキャップを装着することで、シュミット補正板をほこりから守ります。また、撮影時のダークフレーム取得も素早く簡単に行えます。

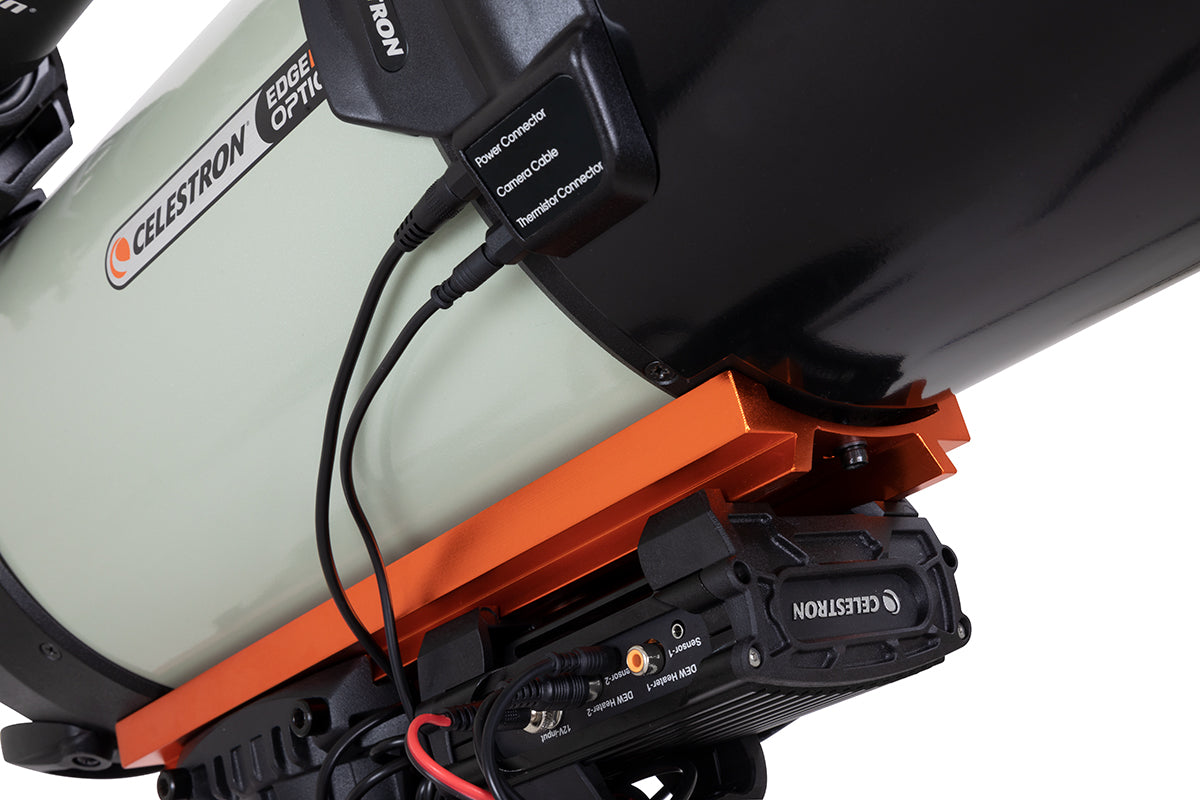

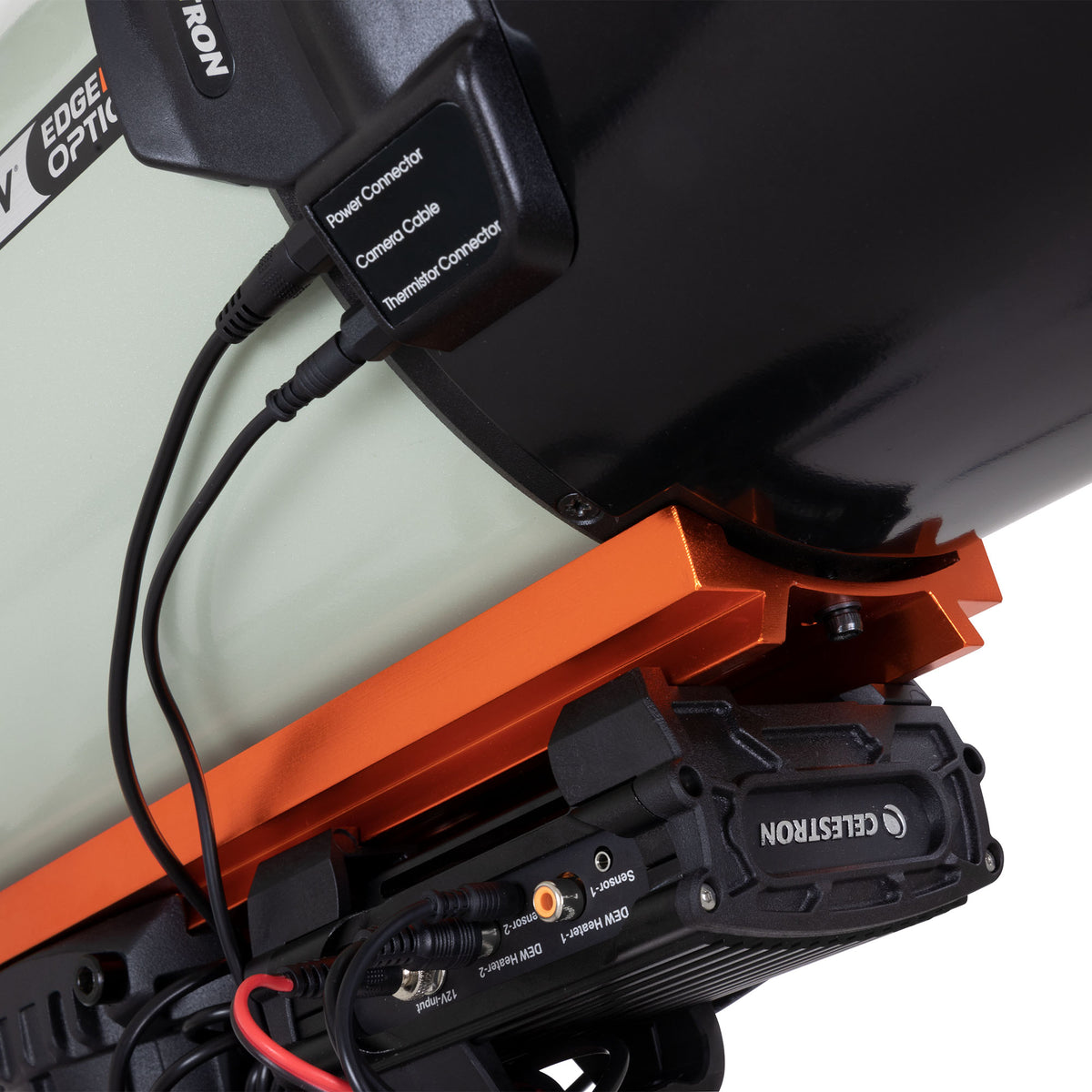

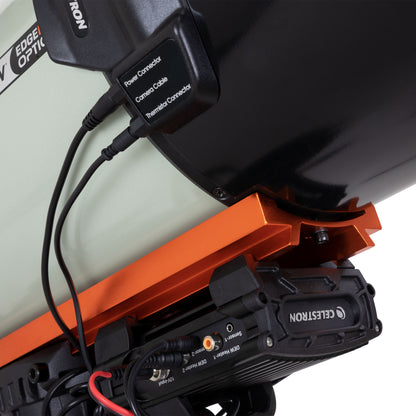

Fastar/Hyperstar構成やRASAでシュミットカセグレンまたはEdgeHDを使用する天体撮影者の方は、結露防止フードの前面からケーブルを出すことが多いでしょう。アルミニウム結露防止フードには、ベース部分にケーブル管理用スロットが統合されているため、セットアップがすっきりします。このスロットを使えば、光害が漏れることなく、結露防止リング用のケーブルなどをまとめることができます。また、望遠鏡鏡筒の上下にあるアリガタレールに対応する切り欠きも設けられており、どのような構成でもしっかりフィットします。
セットアップをさらに充実させる

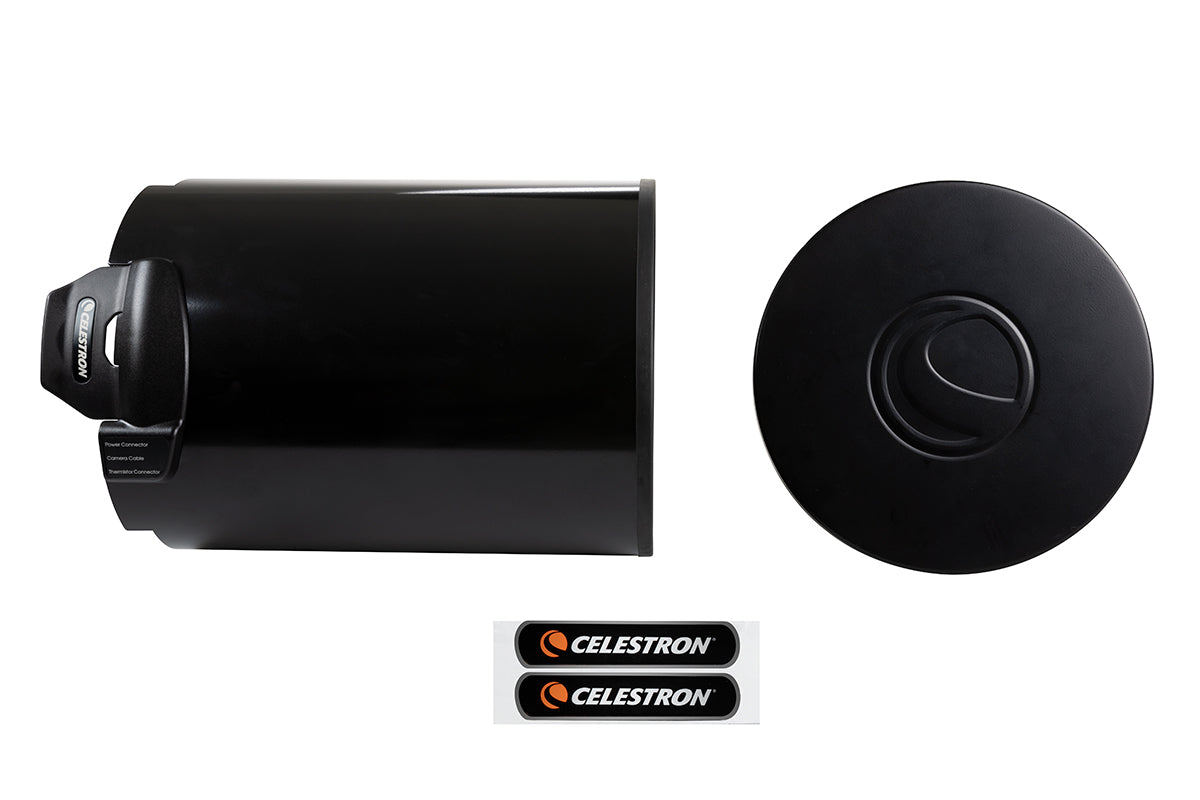

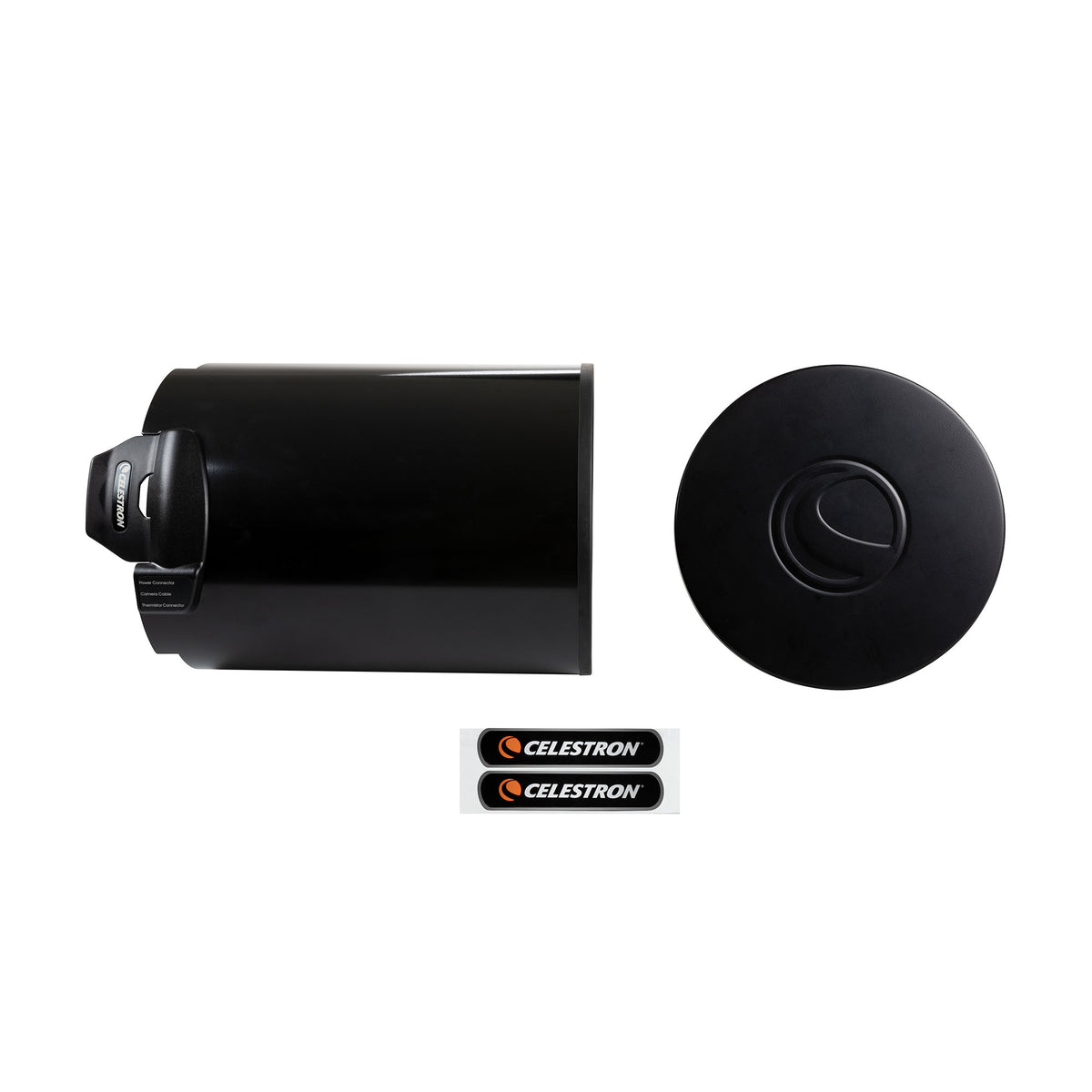

この製品には、粘着式Celestronロゴステッカーが2枚付属します。結露防止フードやお好きな場所にご使用ください。

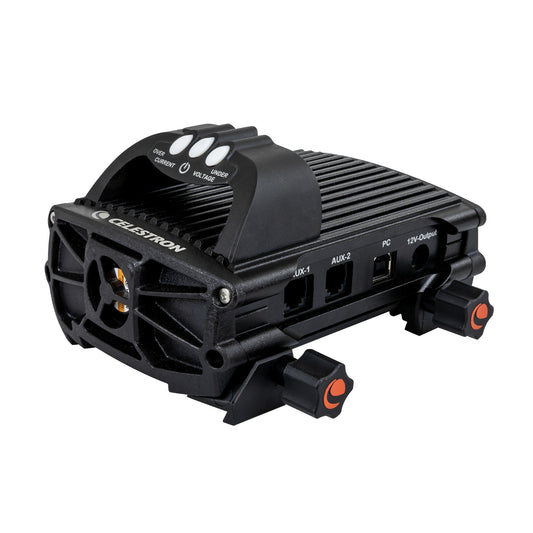

8インチ結露防止リングやSmart結露防止ヒーター、電源コントローラーと組み合わせれば、結露の心配なく快適な観測・撮影の夜を過ごせます。
Suggested Accessories
Categories
Q:
The Aluminum Dew Shield is compatible with 6" or larger Celestron Schmidt-Cassegrain telescopes (SCTs) built since the year 2006. I’m not sure when my SCT was built. How do I determine if the Aluminum Dew Shield is compatible?
The Aluminum Dew Shield is compatible with 6" or larger Celestron Schmidt-Cassegrain telescopes (SCTs) built since the year 2006. I’m not sure when my SCT was built. How do I determine if the Aluminum Dew Shield is compatible?
You can determine if the Aluminum Dew Shield is compatible with your Celestron SCT by examining the design of its rear cell. This applies to fork mounted optical tubes and optical tubes with dovetail mounting bars. Older generation Celestron SCTs (the C8, C11, and C14) built before the year 2006 are not compatible with the Aluminum Dew Shield. These older optical tubes have either a flat face or a ribbed face on the rear cell. See photo examples below.
Newer generation Celestron SCTs built in the year 2006 or later are compatible with the Aluminum Dew Shield. These newer OTAs have a trilobed shape on the rear cell. In addition, newer generation 14" SCTs have a rounded rear cell. See photo examples below. All 6” and 9.25” SCTs are compatible with the Aluminum Dew Shields. All EdgeHD and RASA models are also compatible.

Q:
Can I leave the Aluminum Dew Shield on my telescope when I am transporting it?
Can I leave the Aluminum Dew Shield on my telescope when I am transporting it?
We recommend removing the dew shield and placing the telescope’s own dust cover on during transport. If you do choose to leave the dew shield on, be careful that it does not get bumped or take impacts, otherwise it may become dented or deformed. Also, do not rest the telescope tube upside-down on the ground with the dew shield attached as the dew shield was not designed to support the weight of the telescope.
