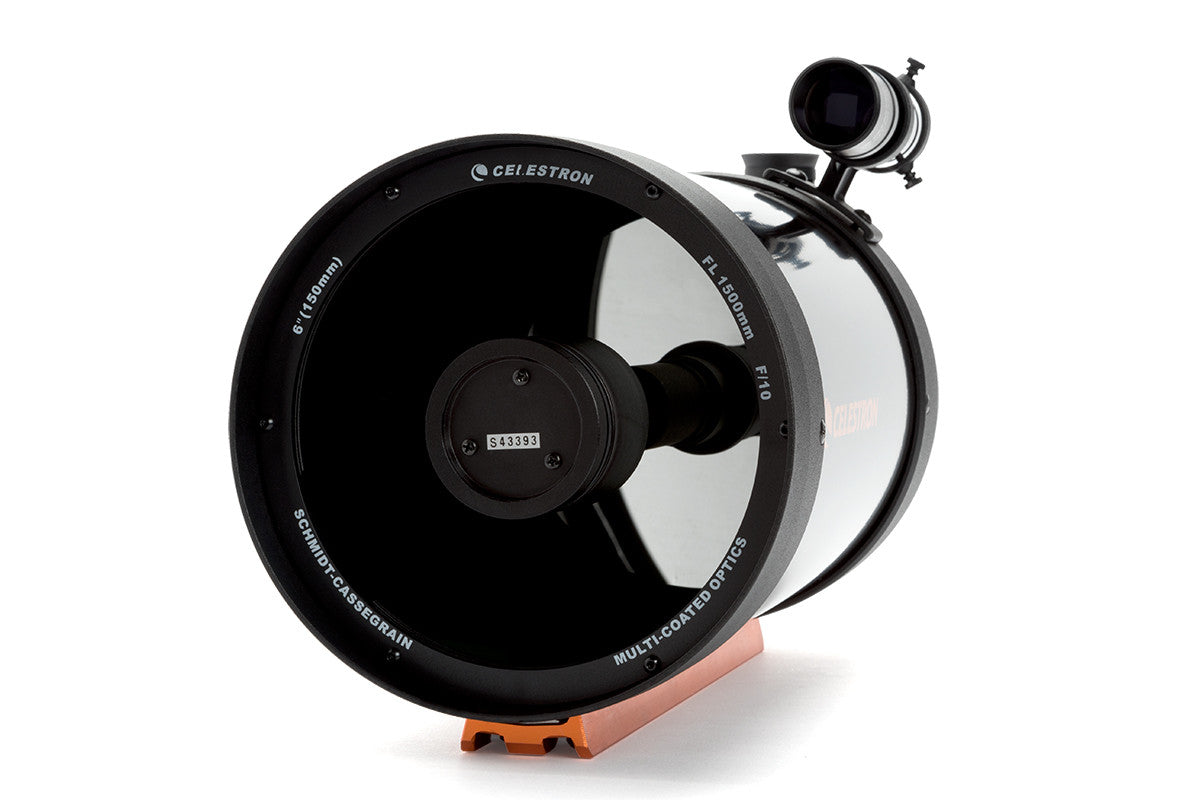

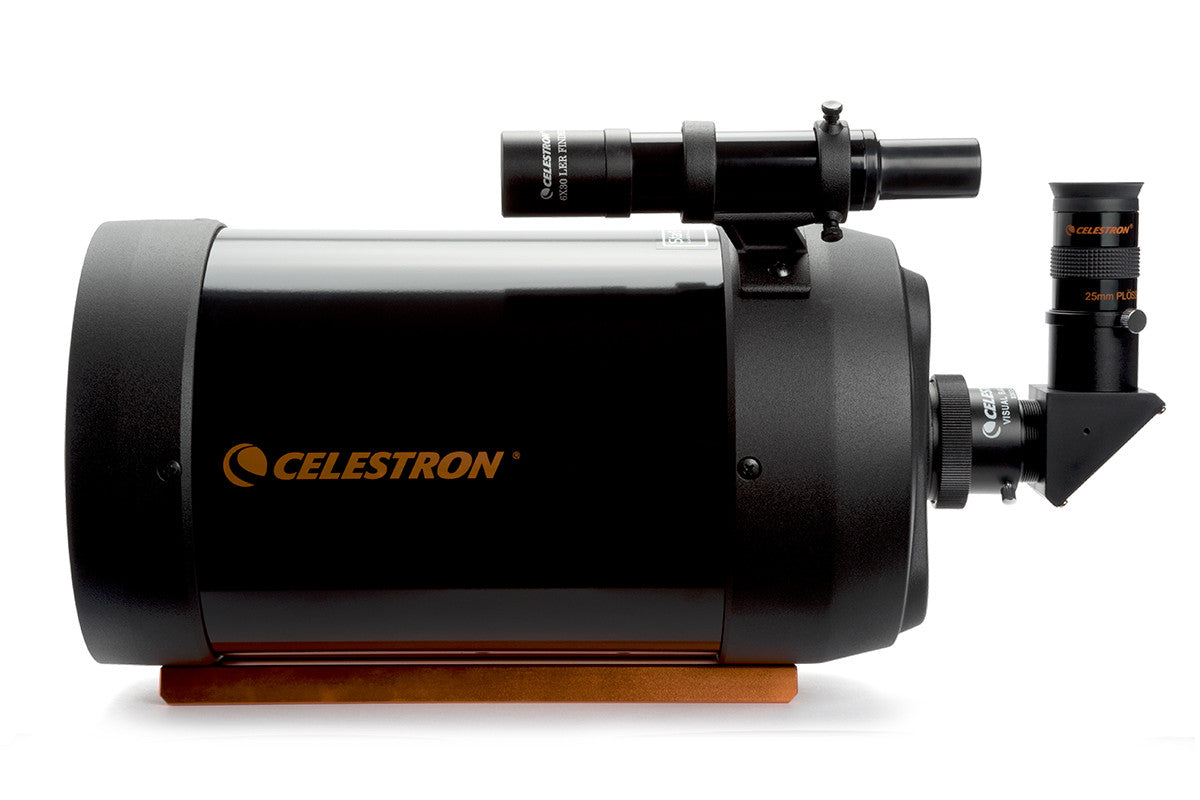

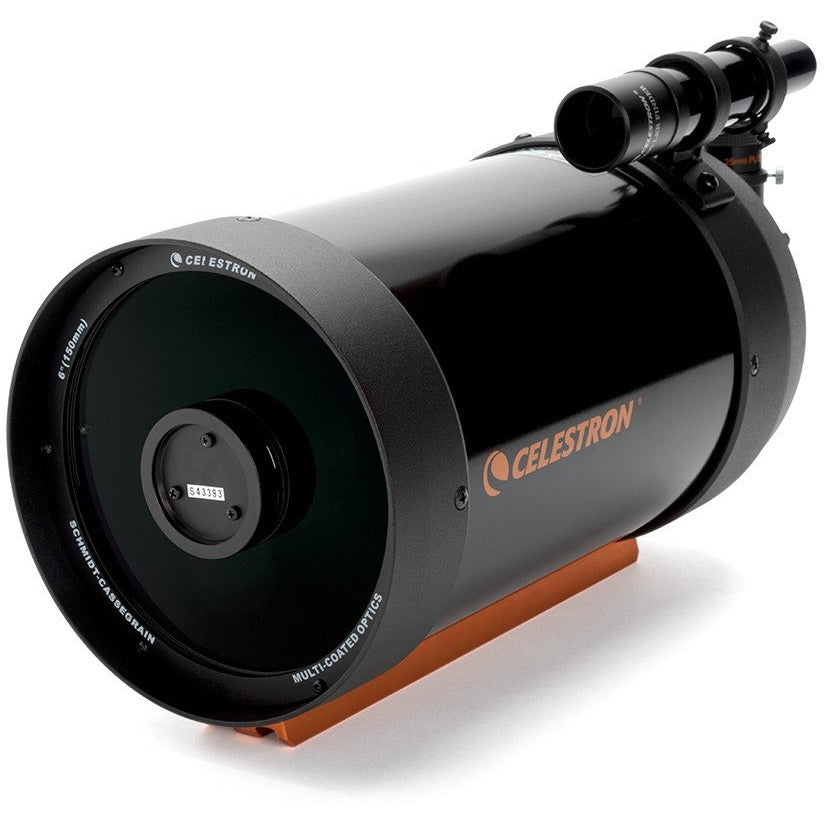

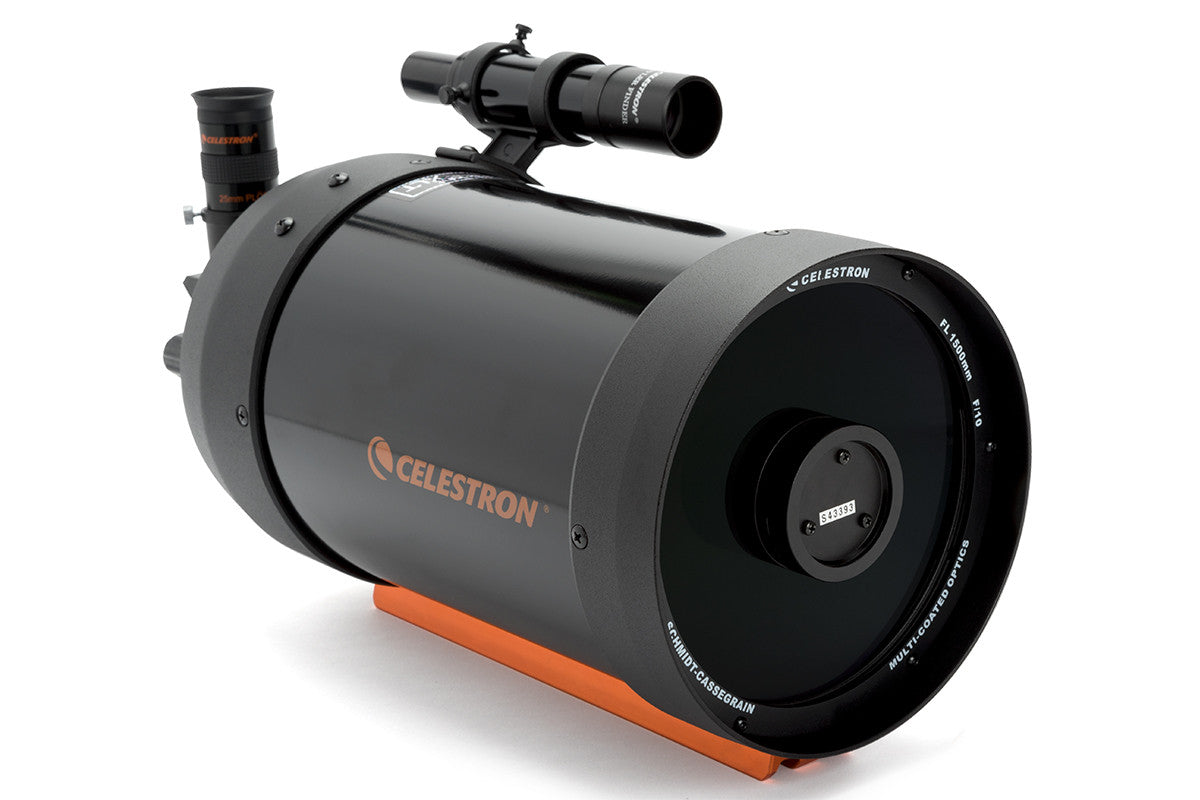

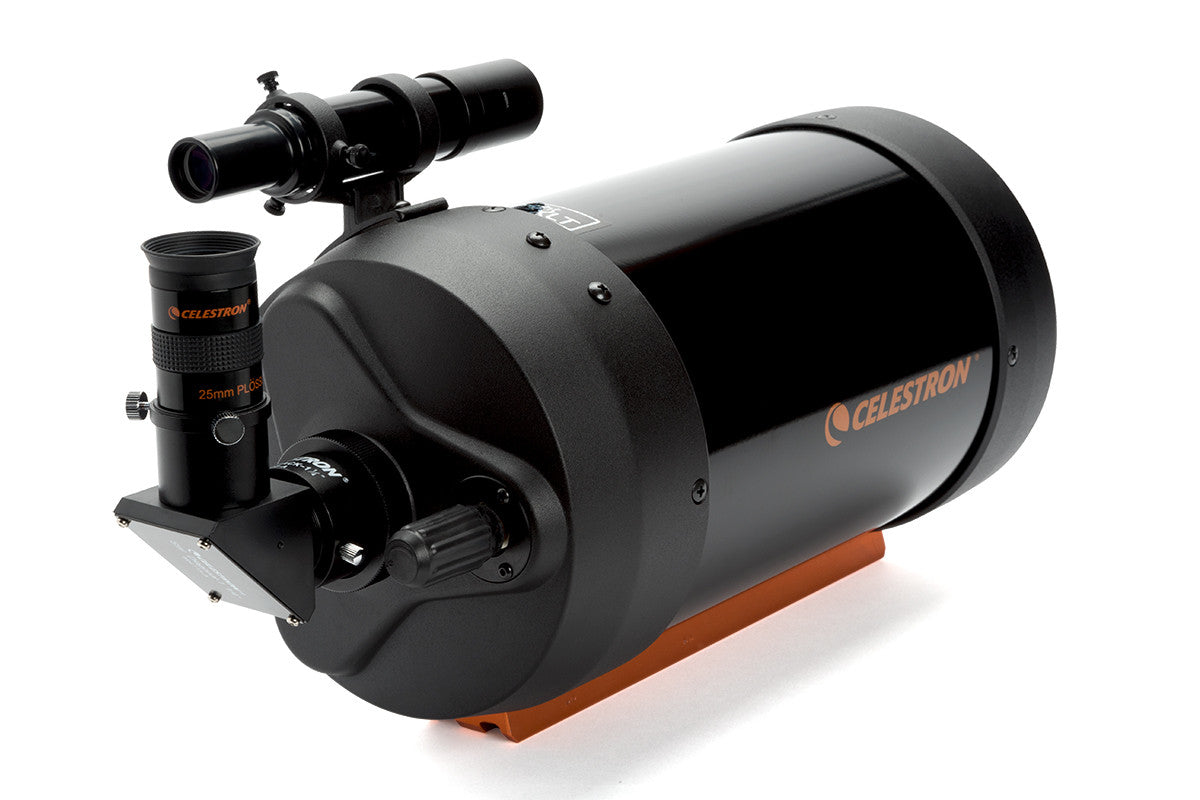

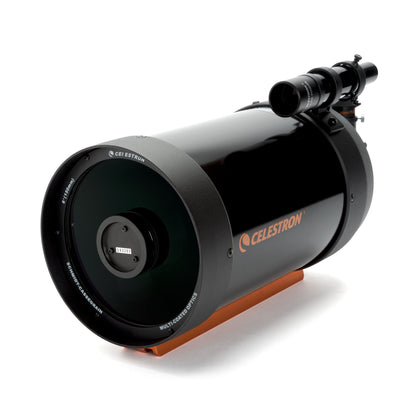

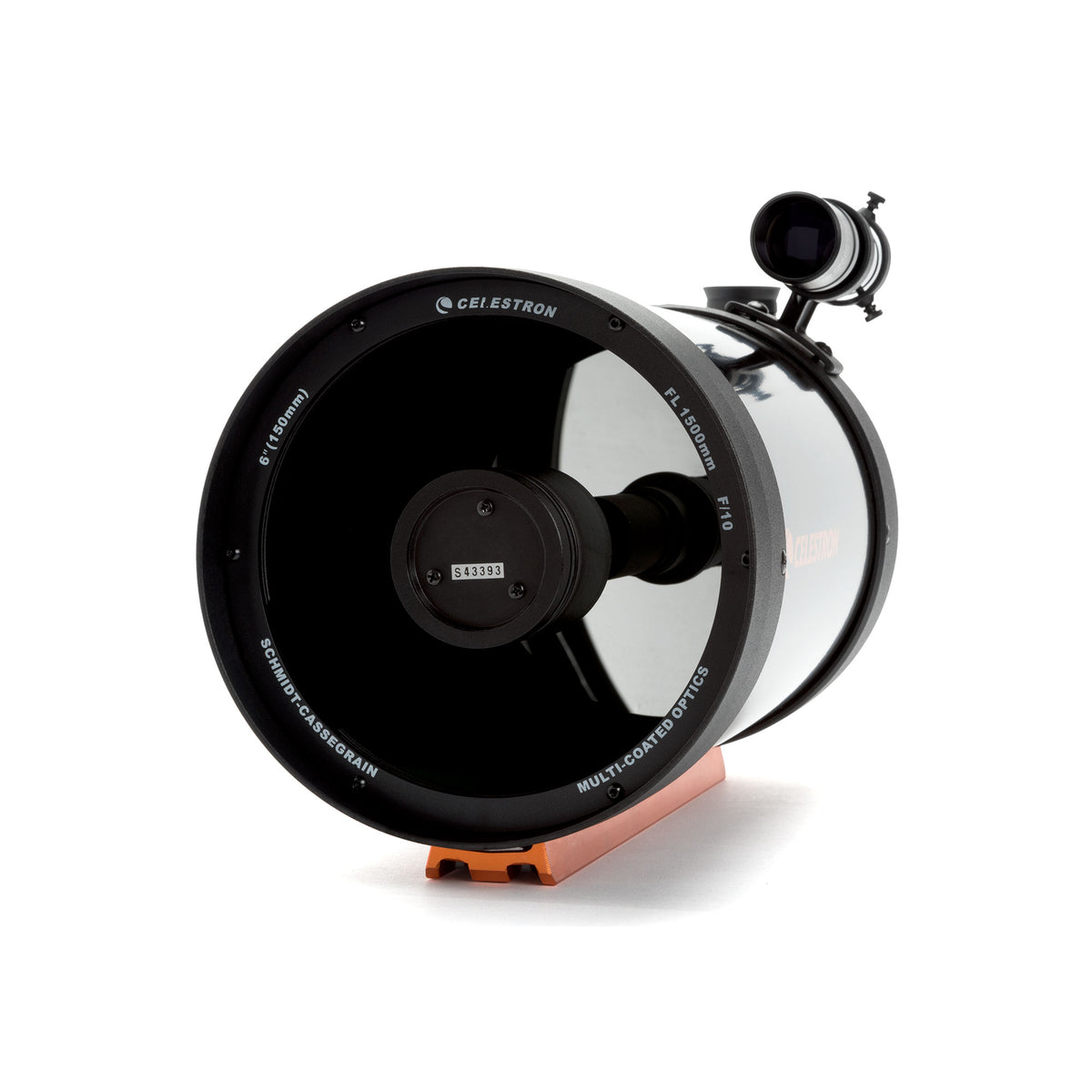

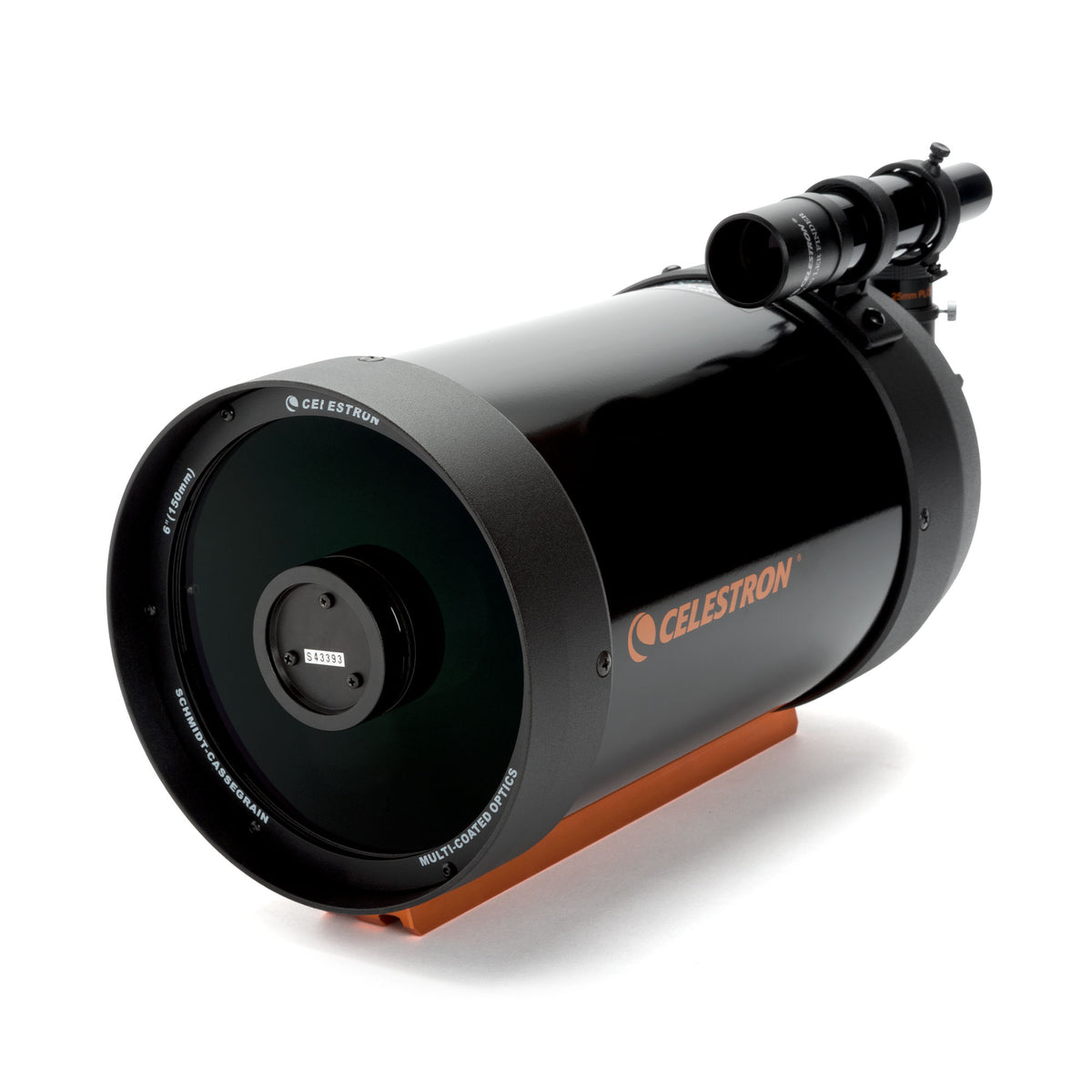

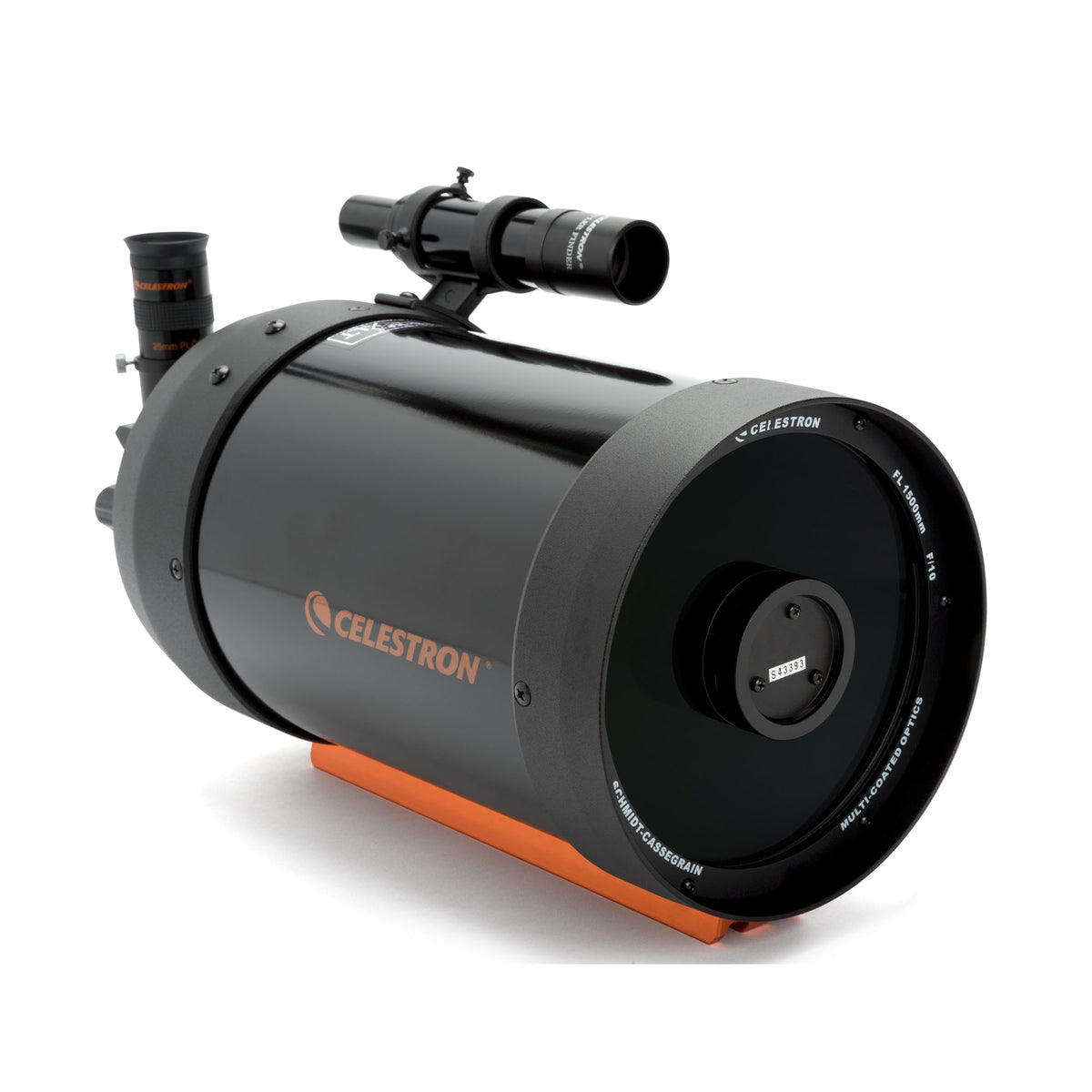

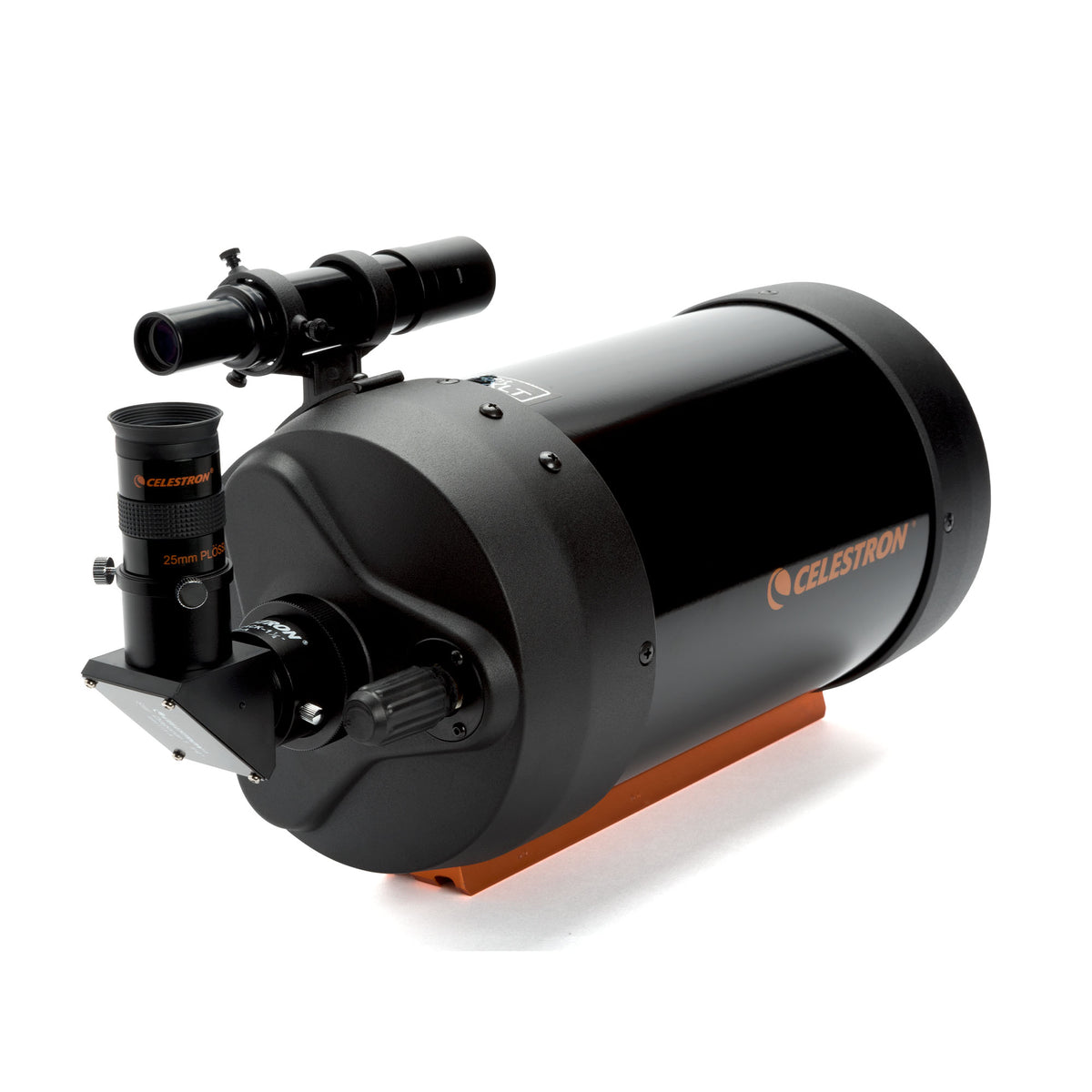

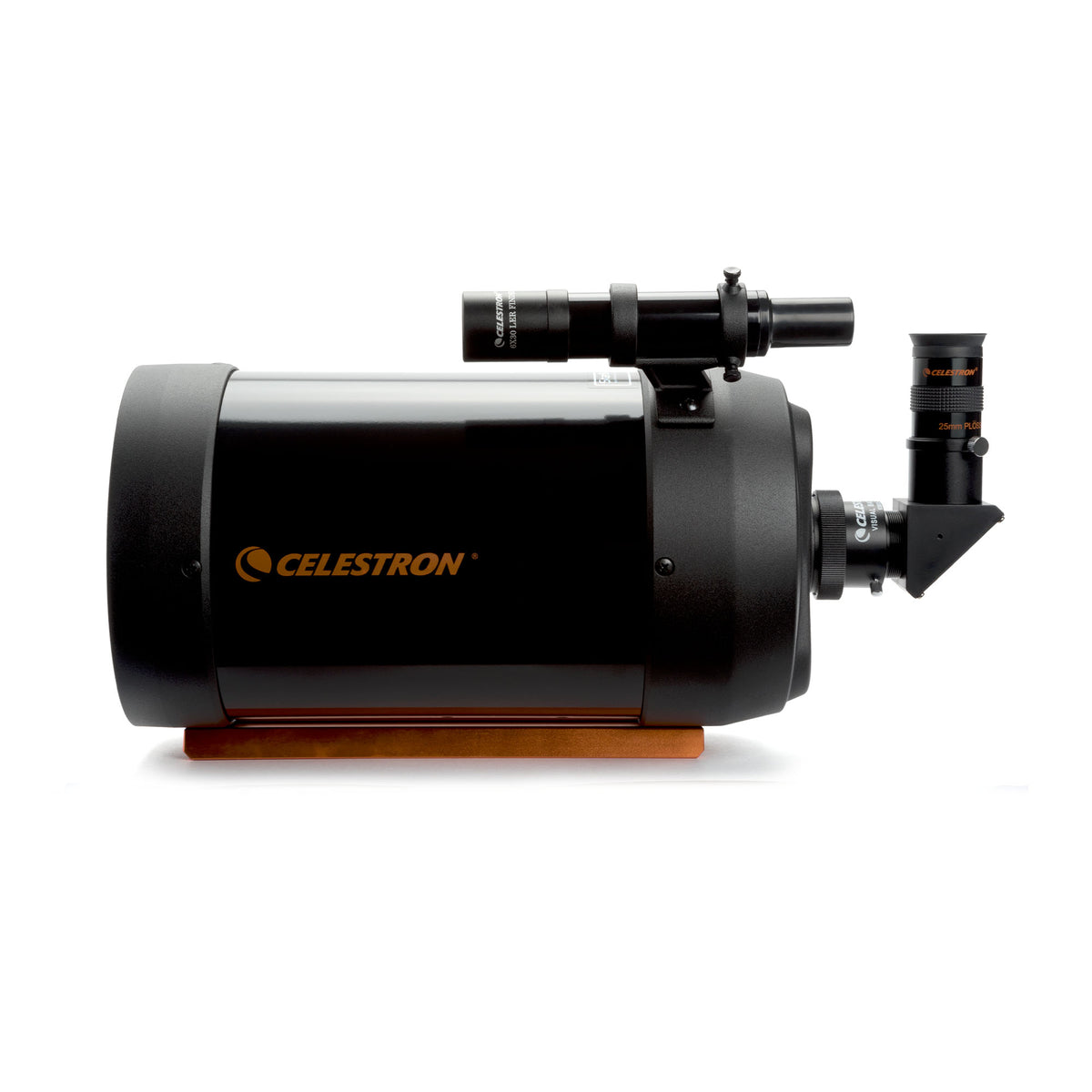

C6 SCT - CG5 鏡筒

C6 SCT - CG5 鏡筒

在庫わずか 残り 1 個

通常価格 ¥168,000
通常価格 セール価格 ¥168,000
[税込] 通常配送料880円 2万円以上で送料無料

2年保証

Item #: 91010-XLT

只今翻訳中です。購入は可能です。

  • 6" Schmidt-Cassegrain optical tube assembly (OTA)
  • Features Celestron's premium patented StarBright XLT optical coatings
  • 1500 mm focal length (f/10)
  • Tube constructed of durable and lightweight aluminum
  • Includes: 25mm eyepiece (60x), 6x30 optical finderscope, star diagonal, 1.25” visual back, CG-5 dovetail bar

仕様

Optical Tube Info:
Optical Design: Schmidt-Cassegrain
Aperture: 150mm (6")
Focal Length: 1500mm (59")
Focal Ratio: f/10
Focal Length of Eyepiece 1: 25mm (0.98")
Magnification of Eyepiece 1: 60x
Finderscope: 6x30
Star Diagonal: 1.25" Star Diagonal
Optical Tube: Aluminum
Highest Useful Magnification: 354x
Lowest Useful Magnification: 21x
Limiting Stellar Magnitude: 13.4
Resolution (Rayleigh): 0.93 arc seconds
Resolution (Dawes): 0.77 arc seconds
Light Gathering Power (Compared to human eye): 459x
Secondary Mirror Obstruction: 56mm (2.2")
Secondary Mirror Obstruction by Diameter: 37%
Secondary Mirror Obstruction by Area: 14%
Optical Coatings: StarBright XLT
Optical Tube Length: 406mm (16")
Optical Tube Diameter: 180mm (7.12")
Optical Tube Weight: 10 lbs (4.54 kg)
Dovetail: CG-5 Dovetail bar
補足情報
太陽観測時の注意事項
  • 天体望遠鏡、ファインダー、接眼レンズなどで太陽を絶対にのぞいてはいけません。失明の危険があります。
  • 光学機器を使って太陽の像を壁や紙などに投影しないでください。機器の内部に熱がこもり、本体やアクセサリーが損傷・故障する原因となります。
  • 屋外に機器を置いたまま離れないでください。お子様がいる場合は特に注意し、常に正しい操作手順を理解した大人が付き添うようにしてください。
詳細を表示する

The Celestron C6-A OTA is a great multi-use optical tube with a 1500 mm focal length and a focal ratio of f/10. It offers 40% more light gathering than a 5” Cassegrain telescope. The Celestron C6-A features Celestron's patented StarBright® XLT optical coatings, which visibly increase contrast and light transmission for brighter deep space images and shorter exposure times. With StarBright XLT, you'll be able to discern subtle details while viewing the Moon and planets as well as faint galaxies and nebulae.

The Celestron C6-A can be mounted on a multitude of computerized telescope mounts thanks to its CG-5 dovetail bar. But it also works well when mounted on a basic manual altazimuth mount for night sky viewing or as a terrestrial spotting scope during the day.

The Celestron C6-A has the best balance of portability, handling ease, light gathering ability and price ever offered to the amateur astronomer. It is an advanced level instrument that is as easy to use as any intermediate level—and most entry level—telescopes.

StarBright XLT coatings

StarBright XLT is Celestron's revolutionary optical coating system. It consistently outperforms all other coatings in the commercial telescope market. There are three major components that make up our StarBright XLT high-transmission optical system design:

  • Unique enhanced multi-layer mirror coatings made from precise layers of aluminum, SiO2 (quartz), TiO2 (titanium dioxide), and SiO2 (silicon dioxide). Reflectivity is fairly flat across the spectrum, optimizing it for both imaging and visual observing.
  • Multi-layer anti-reflective coatings made from precise layers of MgF2 (magnesium fluoride) and HfO2 (hafnium dioxide). Hafnium—a rare element that costs nearly $2,000 per kilogram—gives us a wider band pass than the titanium used in competing coatings.
  • High-transmission water white glass is used instead of soda lime glass for the corrector lens. Water white glass transmits about 90.5% of light without anti-reflective coatings; that's 3.5% better than uncoated soda lime glass. When water white glass is used in conjunction with StarBright XLT's anti-reflective coatings, the average transmission reaches an astonishing 97.4.

These three components make StarBright XLT one of the finest coatings available. For more information about our patented StarBright XLT coatings, visit here.
