ネクスター フォーエスイー マクストフ
残り 1 個
受取状況を読み込めませんでした
2年保証(電子部品は1年)

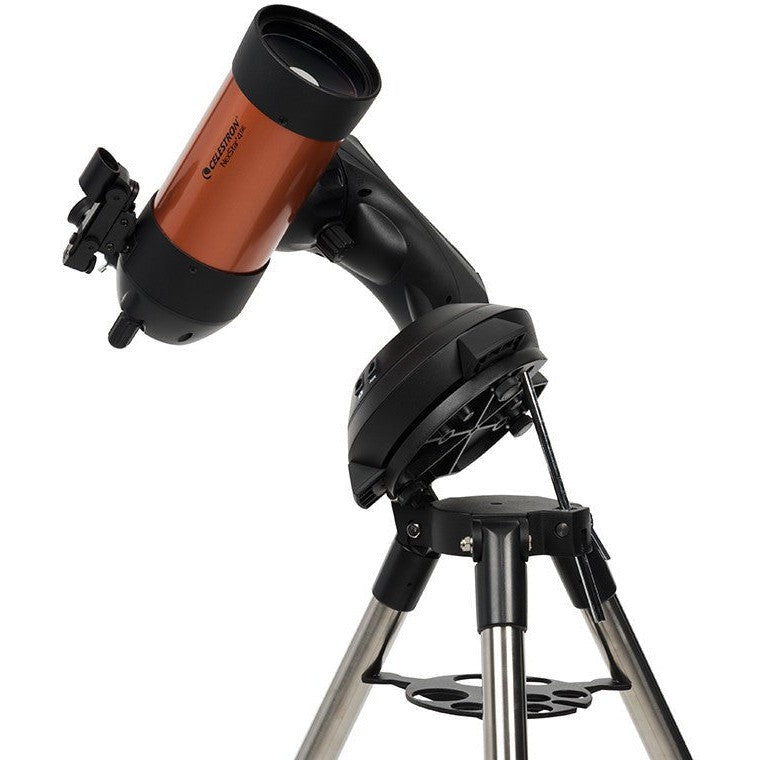

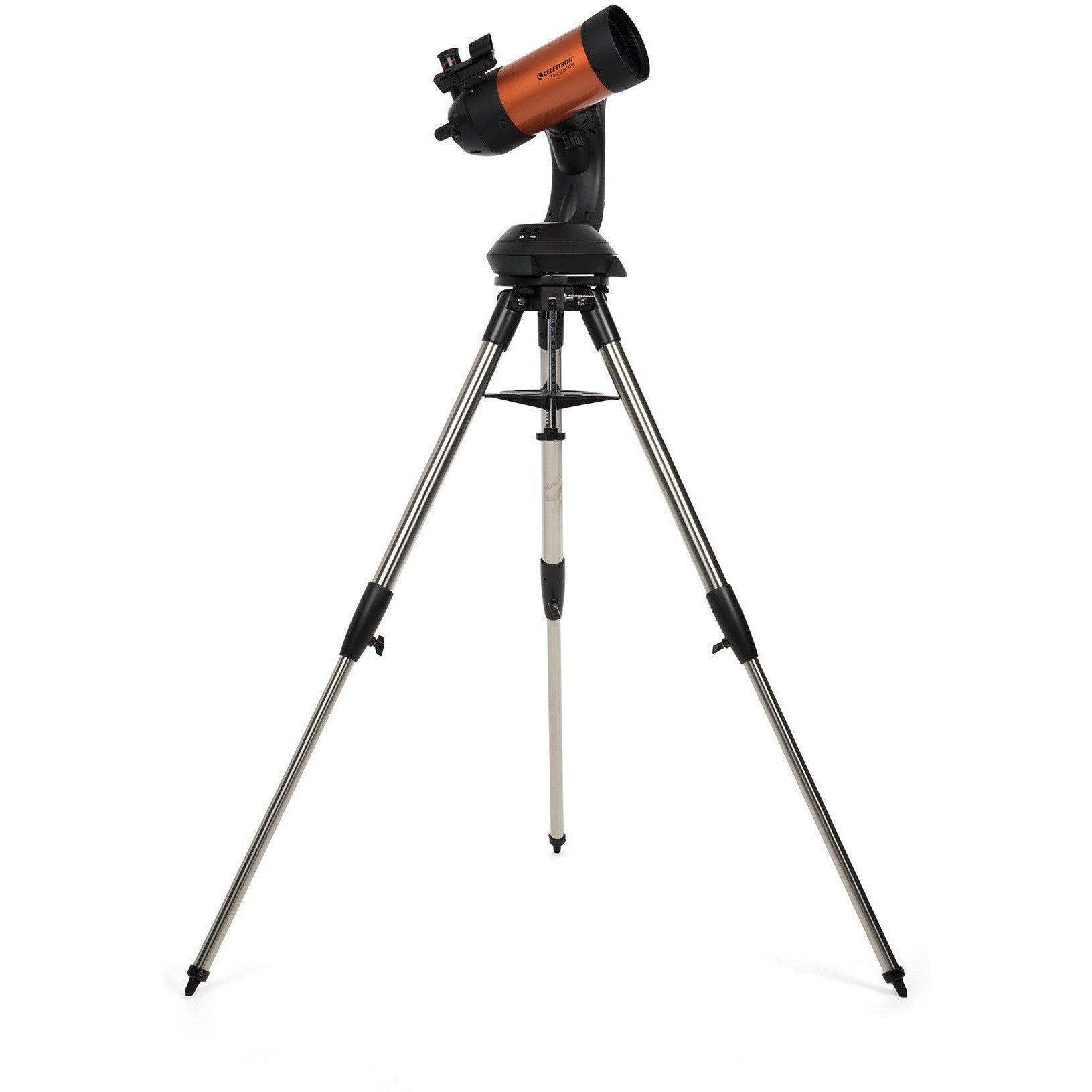

102mmマクストフカセグレンと4万件超の自動導入システム。高精度な追尾と優れた携帯性を両立した実戦的モデル。

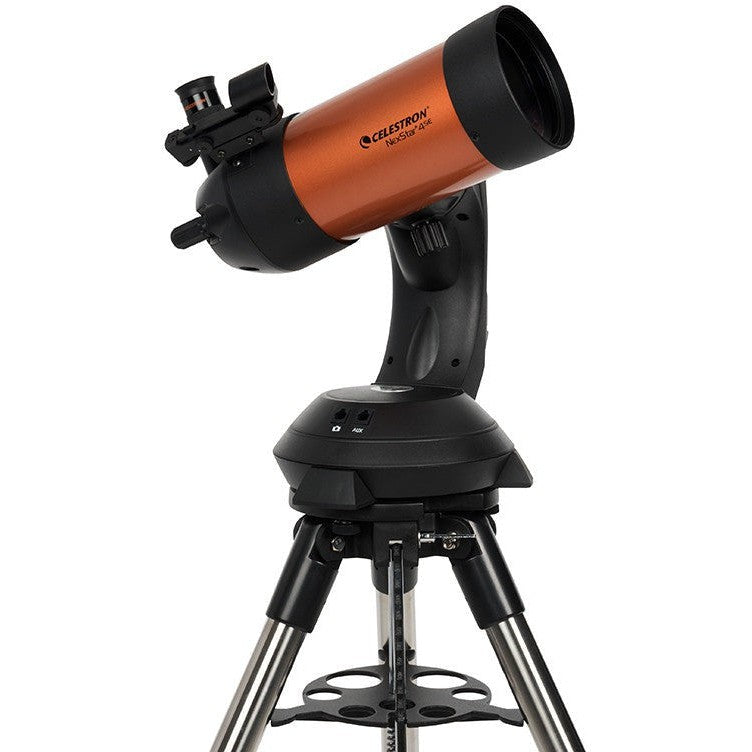

- セレストロンを象徴する「オレンジチューブ」のデザインに最新機能を統合。初心者から経験豊富な観測者まで、質の高い観測体験を提供します。
- 102mmの有効径により、優れた集光性能を確保。コンパクトな筐体を維持しながら、月や惑星の細部、オリオン大星雲などの深宇宙天体まで鮮明な像を映し出します。
- 40,000個以上の天体データを内蔵したフルオートGoTo(自動導入)架台を採用。目的の天体を自動で捕捉し、正確に追尾します。
- 独自の「SkyAlign」技術により、数分でアライメントが完了。星空の知識がなくても、任意の3つの明るい天体を利用して迅速にセットアップが可能です。

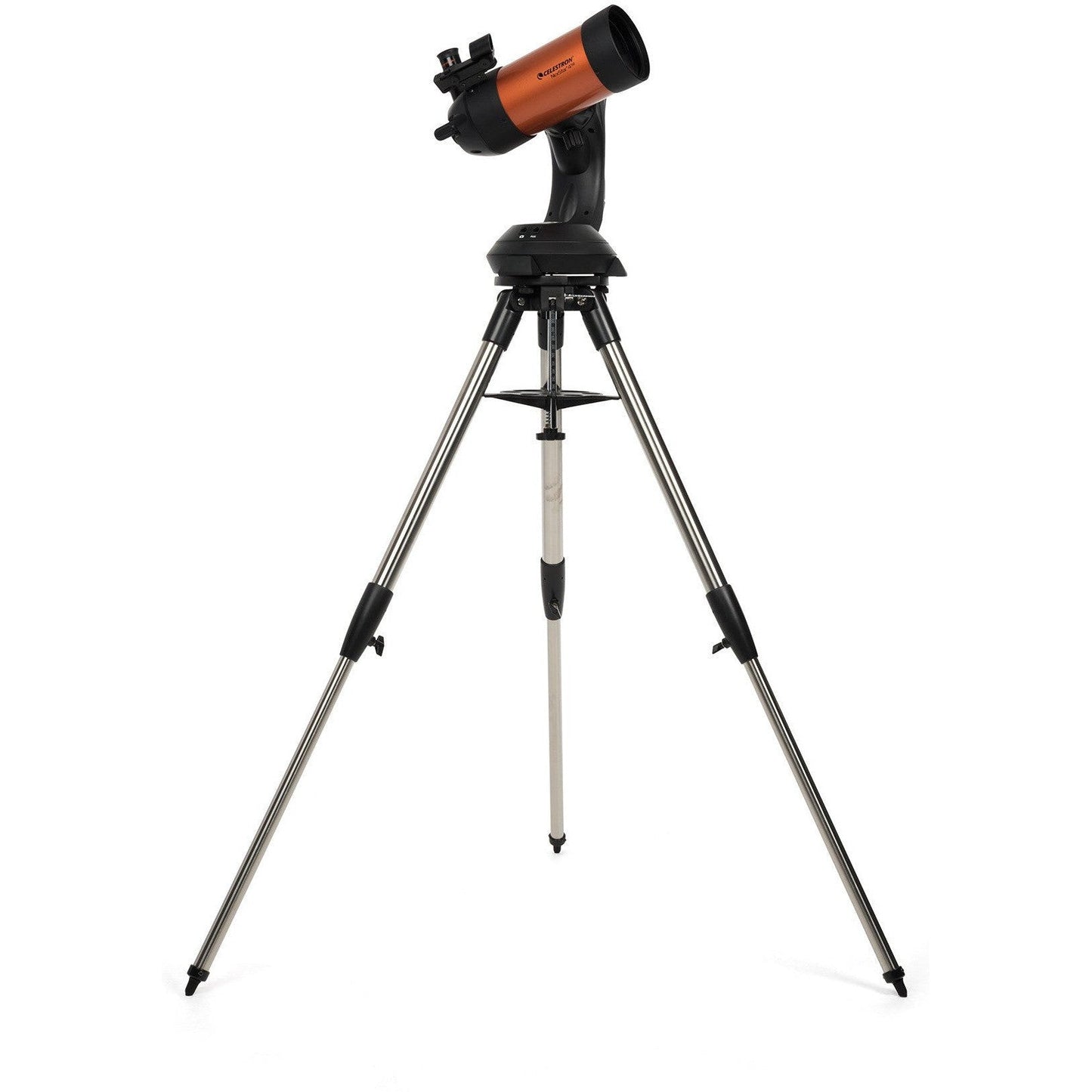

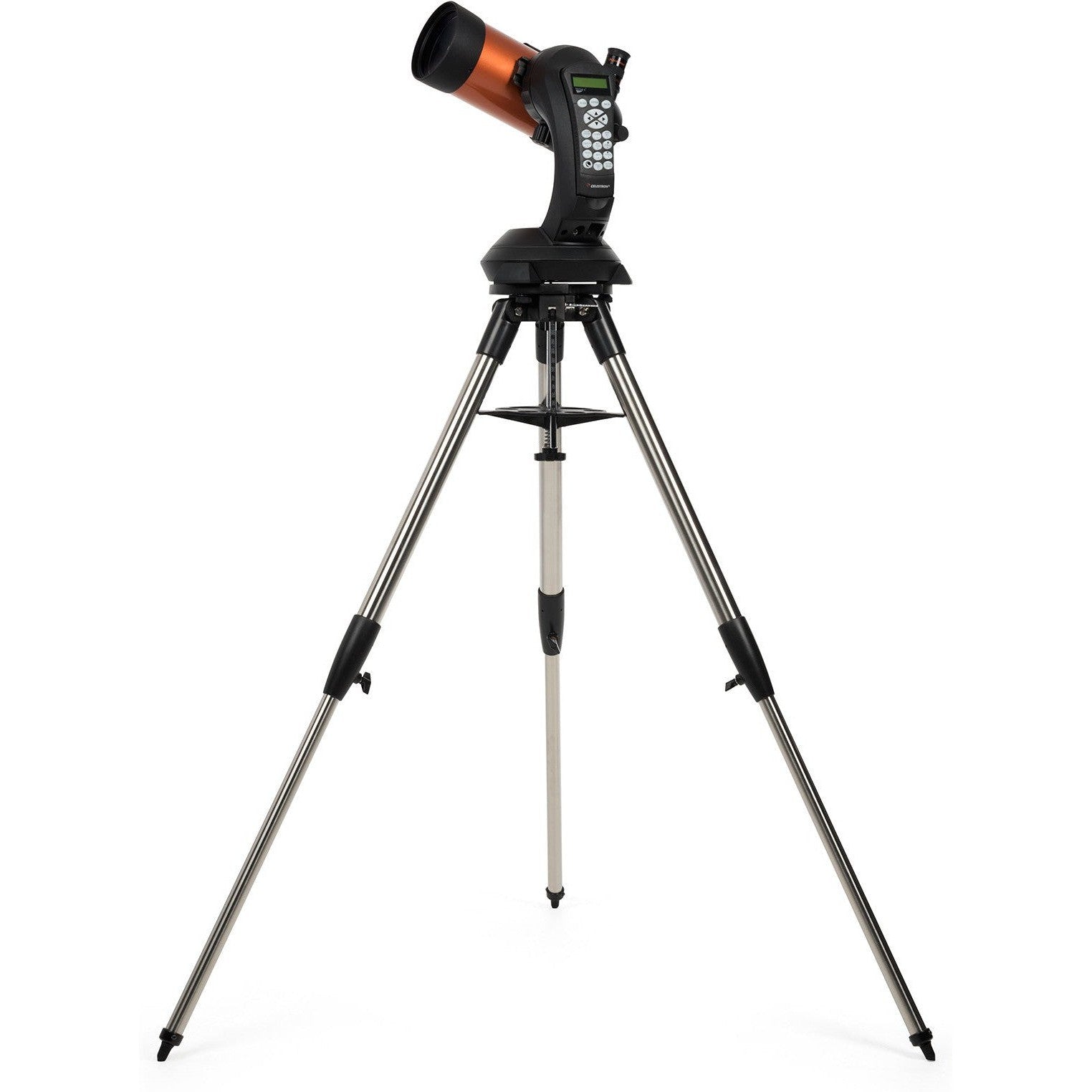

- 独自のシングルフォークアーム設計と堅牢なステンレス製三脚を採用。各パーツは分解可能なため、優れた搬送性と迅速な組み立てを実現しています。
Item#:CE-ASNS-11049
製品仕様
製品仕様
| 鏡筒仕様 | |
|---|---|
| 光学設計 | マクストフカセグレン式 |
| 有効径 | 102mm |
| 焦点距離 | 1325mm |
| 口径比 | f/13 |
| 接眼レンズ1焦点距離 | 25mm |
| 接眼レンズ1倍率 | 53倍 |
| ファインダー | スターポインター(レッドドットファインダー) |

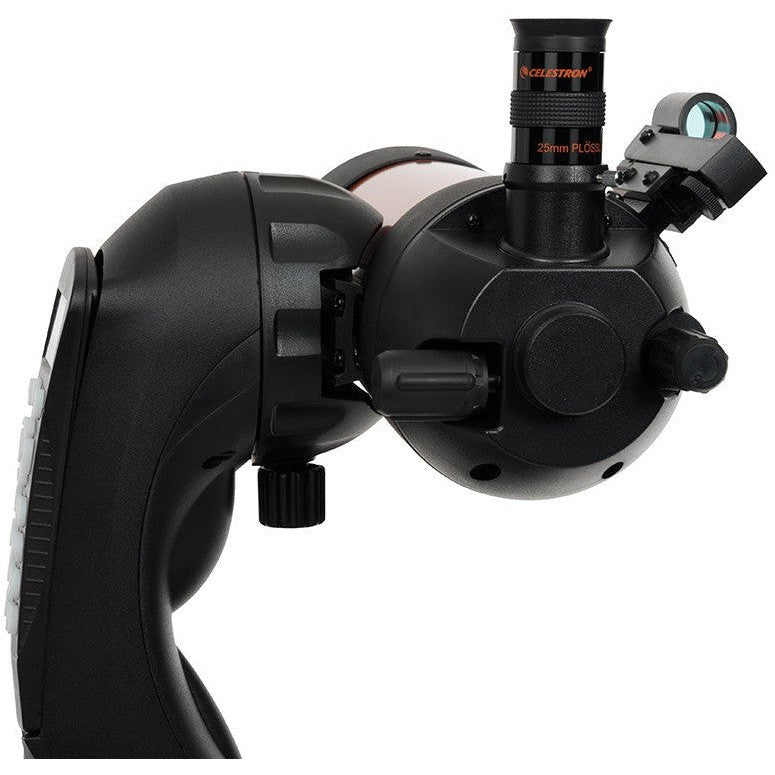

| 天頂ミラー | フリップミラー内蔵(直進または90°視認角の切り替え式) |
| 鏡筒材質 | アルミニウム |
| 最高有効倍率 | 241倍 |
| 最低有効倍率 | 15倍 |
| 極限等級 | 12.5等 |
| 分解能(レイリー限界) | 1.37秒 |
| 分解能(ドーズ限界) | 1.14秒 |
| 集光力(肉眼比) | 212倍 |
| 副鏡遮蔽径 | 35mm |
| 副鏡遮蔽(直径比) | 34% |
| 副鏡遮蔽(面積比) | 12% |
| コーティング | StarBright XLT |
| 鏡筒長 | 343mm |
| 鏡筒外径 | 125mm |
| 鏡筒重量 | 2.7kg |
| ドブテイルバー | CG-5規格(ビクセン規格) |
| 架台・三脚仕様 | |
| 架台タイプ | 自動導入式経緯台(シングルフォークアーム) |
| 最大搭載重量 | 4.54kg |
| 高さ調節範囲(三脚・架台含む) | 939.8mm - 2397mm |
| 三脚脚径 | 31.75mm(ステンレス製) |
| 架台部重量 | 3.2kg |
| アクセサリートレイ | あり |
| 三脚重量 | 4.54kg |
| 旋回速度 | 9段階(最大毎秒3°) |
| 追尾レート | 恒星時、太陽、月 |
| 追尾モード | 経緯台、赤道儀(北半球/南半球) |
| GPS | 非搭載(別売SkySync対応) |
| アタッチメントプレート規格 | CG-5規格(ビクセン規格) |

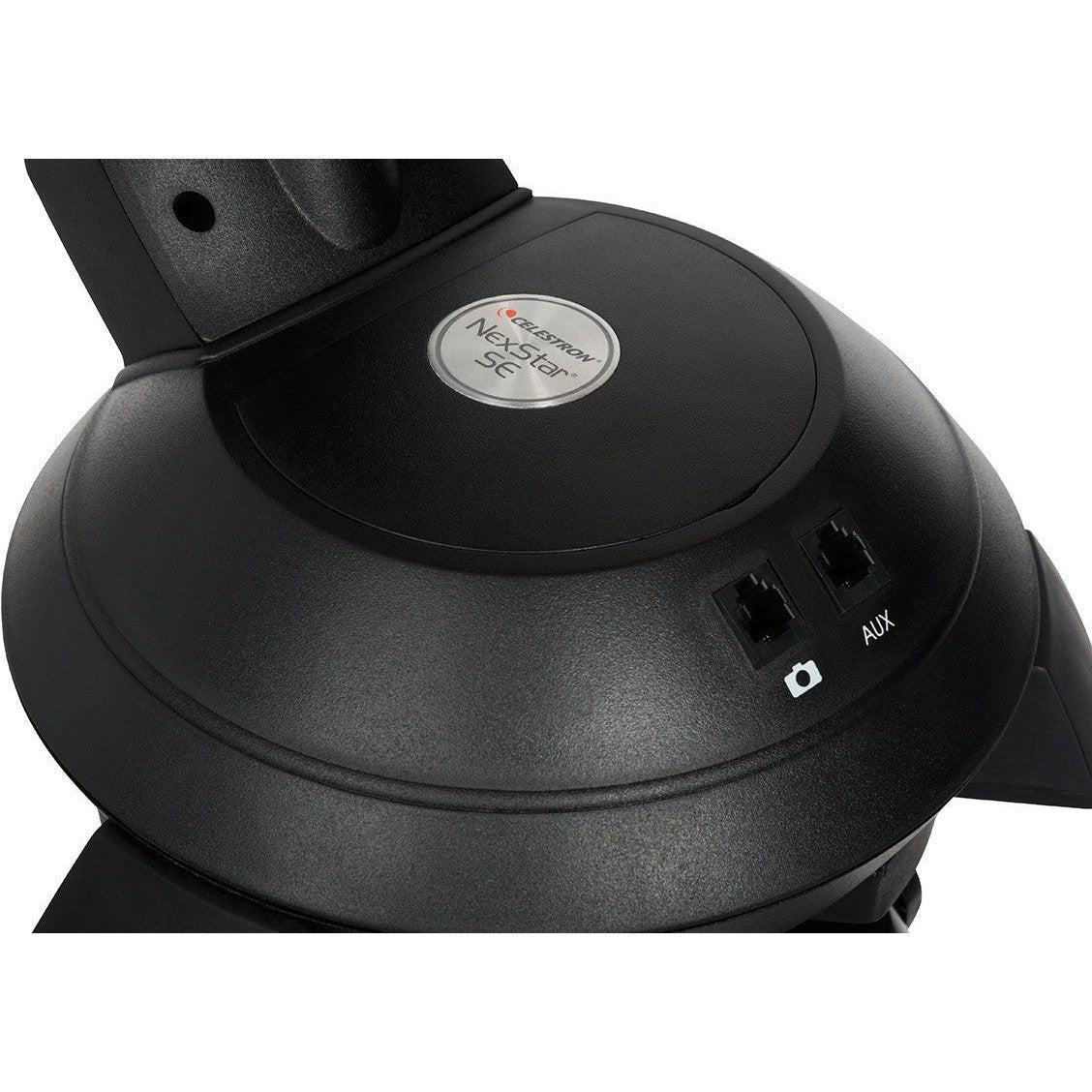

| 補助ポート | AUXポート ×1 |
| オートガイドポート | なし |
| USBポート | あり(ハンドコントローラー入力) |
| 電源 | 単3乾電池 ×8、または外部12V DC-750mA(センタープラス) |
| 駆動モーター | DCサーボモーター |
| アライメント手順 | SkyAlign、1星アライメント、2星アライメント、自動2星アライメント、太陽系天体アライメント、赤道儀アライメント(ウェッジ使用時) |
| 周期誤差補正(PEC) | なし |
| ハンドコントローラー | 液晶ディスプレイ(2行18文字)、19バックライト付ボタン |
| データベース | 38,181天体(200以上の天体で詳細情報参照可能) |
| ソフトウェア | Starry Night Special Edition、SkyPortalアプリ |
| セット総重量 | 10.4kg |
| 同梱物 | 鏡筒、シングルフォークアーム架台、三脚、アクセサリートレイ、スターポインターファインダー、内蔵ウェッジ、NexStar+ハンドコントローラー、25mmアイピース |
| 補足情報 | |
| 太陽観測時の注意事項 |
|

Item:CE-ASNS-11049
伝統のオレンジチューブに、40,000件以上の天体データを内蔵した自動導入機能を搭載。102mmのマクストフカセグレン光学系は、惑星や月面の詳細観測に不可欠な高いコントラストと解像度を提供します。高精度な追尾性能と優れた可搬性を両立し、フィールドでの効率的な観測を支える信頼性の高いシステムです。
光学設計の系譜と現代的アップデート

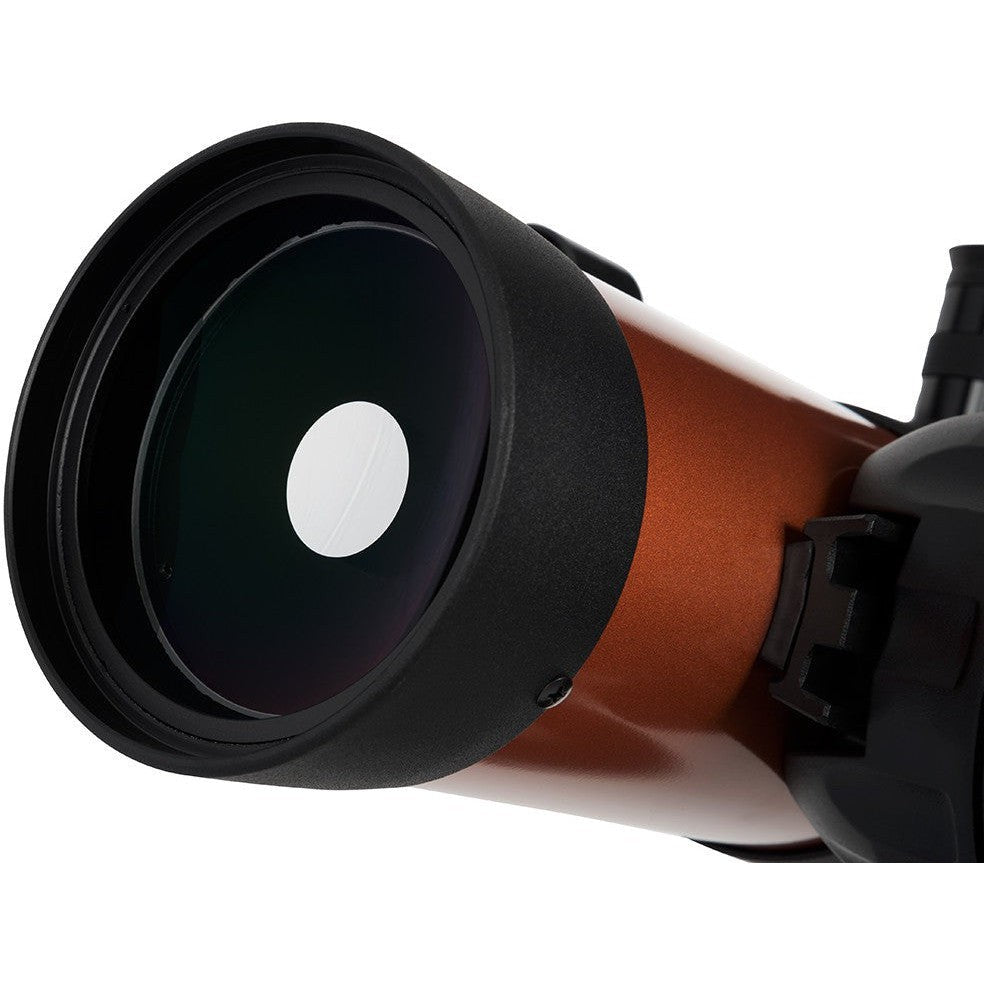

1970年代にシュミットカセグレン望遠鏡を普及させ、世界の天文ファンに定評を得たセレストロンの設計思想を継承。NexStar 4SEは、その伝統的なフォルムに現代のデジタル技術を融合させています。高品位な補正板製造技術とStarBright XLTコーティングの採用により、光の透過率を最大化し、極めてシャープな像を提供します。
102mm口径による観測パフォーマンス
有効径102mmの主鏡は、惑星観測において優れたパフォーマンスを発揮します。土星の環、木星の表面に流れる帯状の雲、月面の微細な地形などを鮮明に描写。また、低光害地(ダークスカイサイト)での運用においては、ヘラクレス座の球状星団の分離や、子持ち銀河(M51)の構造確認など、ディープスカイ天体の観測にも十分な集光能力を備えています。
高精度な自動導入とシステム運用

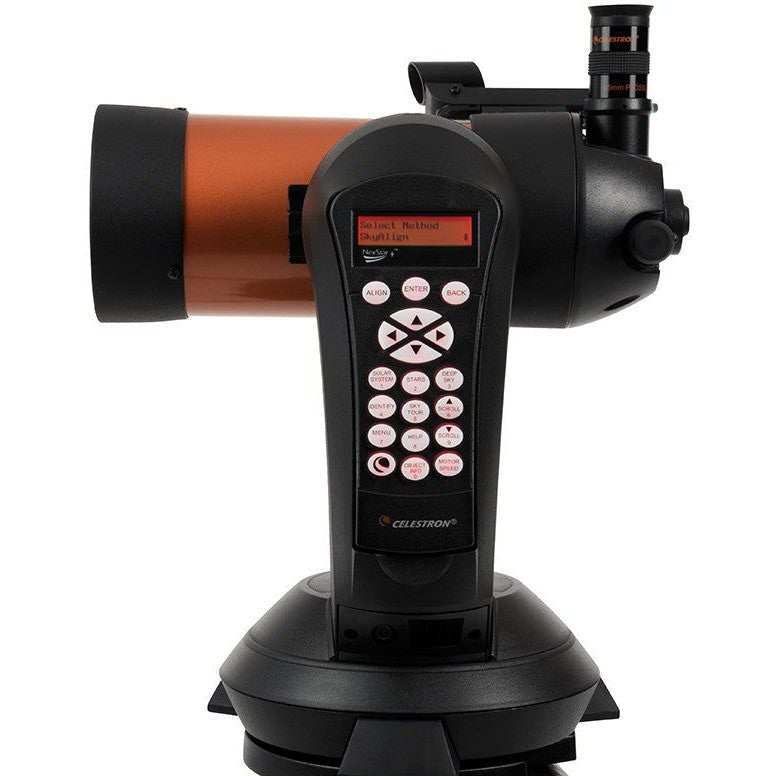

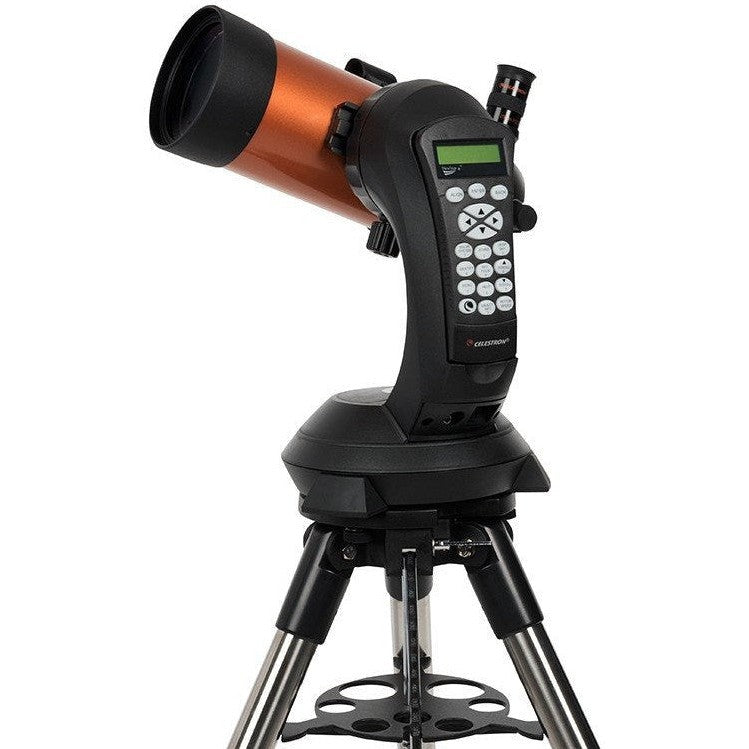

特許取得済みのシングルフォークアーム架台には、40,000個以上の天体データベースを内蔵したNexStar+ハンドコントローラーを装備。高精度なステッピングモーターとエンコーダーの組み合わせにより、目的の天体を迅速かつ正確に視野に導入・追尾します。独自の「SkyAlign」アルゴリズムは、任意の3つの輝星を使用することで、迅速かつ正確なアライメント設定を可能にします。
拡張性とシステム運用

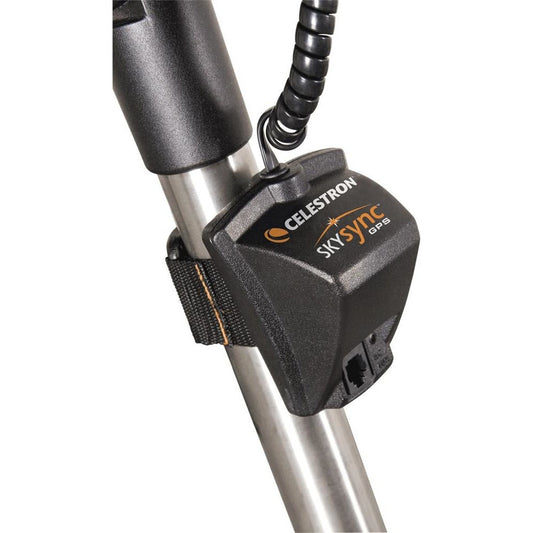

中〜上級者のニーズに応える拡張性を備えています。GPS取得用のSkySync、あるいは長時間露光撮影を可能にする内蔵ウェッジ(赤道儀モード)を活用することで、眼視観測から惑星・月のデジタル撮影まで、用途に応じたシステム構築が可能です。
Suggested Accessories
Categories
Q:
Why doesn’t my red dot finderscope match the image on the box/website?
Why doesn’t my red dot finderscope match the image on the box/website?
Celestron is making a change to the finderscope shipped with some Celestron telescopes. In some cases, you may receive a finderscope that is different in appearance than the one pictured on the gift box, manual, Quick Setup Guide, or website. We apologize for any inconvenience this may cause. Rest assured that the finders are identical in performance and features. The main difference is the location of the battery compartment and, therefore, the battery installation instructions.
If your red dot finderscope looks like the unit pictured here, you can ignore this message.
If you received a red dot finderscope that looks like the unit pictured here, follow the instructions below to replace the battery:
1. The battery compartment on this finderscope is located on top of the unit. Use a Philips-head screwdriver to loosen the screw holding the battery door closed. The screw is captured and will not fall out when you open the battery door.
2. Lift the battery door open to expose the CR-2032 button battery.
3. With your fingernail on either side of the battery, pry the battery up and out of the battery compartment.
4. Place the new CR-2032 battery, positive (+) side up, under the two copper battery clips at the front of the battery compartment.

5. Press the battery down to snap it into the plastic battery clips on the opposite side of the battery.
6. Close the battery door and tighten the Phillips-head screw to secure the door in place.
