自動アライメント:わずか数分で観測準備が完了
StarSense オートガイダーがあれば、ボタンを一つ押すだけで、わずか3分ほどで天体望遠鏡のアライメント(初期設定)が完了します。ユーザーによる複雑な操作は一切不要です。Celestronが特許を取得した「StarSenseテクノロジー」が、上空の星のパターンを自動的に認識。内部データベースと照合し、望遠鏡の位置を正確に特定します。これにより、面倒な手動でのアライメント作業から解放され、本来の目的である「天体観測」や「撮影」にすぐに集中することができます。
精密な自動導入:導入精度を劇的に向上
Celestronのコンピューター制御架台は、もともと優れた導入精度で高い評価を得ていますが、StarSense Autoguiderを加えることで、その精度はさらなる高みへと到達します。独自の「精密な自動導入」機能は、目的の天体を単に視野に入れるだけではありません。高倍率の接眼レンズや、近年の小型イメージセンサーを使用している場合でも、対象を正確に視野の中央へと導きます。
オートガイド:あなただけの天体写真の傑作を
天体撮影は、望遠鏡を手にしたときのもっとも刺激的な体験のひとつです。しかし、息をのむような美しい星雲や銀河を捉えるには、長時間の露光中にターゲットを寸分違わず追い続ける「オートガイド」が欠かせません。これまでのオートガイド環境は、専用カメラ、ガイド鏡、そして制御用のPCが必要な、複雑で高価なシステムでした。StarSense Autoguiderはそのすべてを1つに統合。初心者の方でも、迷うことなく本格的な天体撮影の世界へ飛び込むことができます。主役の天体は細部まで鮮明に、背景の星々は引き伸ばされることなく、針で突いたような鋭い点像として描き出されます。
アシスト付き極軸調整:最高峰の精度を、かつてないほど簡単に
StarSense Autoguiderを導入することで、システムの追尾精度は劇的に向上します。そのため、一般的な観測や短時間の撮影であれば、ドイツ式赤道儀の厳密な極軸調整を省略できるほどです。しかし、最高の精度を追求したい場合には、このStarSense AutoAlignが極軸調整のプロセスを大幅に簡略化します。ハンドコントローラーやCPWIソフトウェアの画面に表示される指示に従うだけで、わずか5分足らずで完璧な極軸調整が完了します。
著名な設計者による高品質な4枚玉光学デザイン
StarSense Autoguiderは、著名な光学設計者であるマーク・アッカーマン氏の手による、高品質な4枚玉の光学設計を採用しています。この独自の設計は、一般的なミニ・ガイドスコープを凌駕する極めてシャープな像を実現。これにより、かつてないほど精密なオートガイド性能を提供します。また、鏡筒には50.8mm径フィルター用のネジ溝を備えています。IRカットフィルターを装着して夕暮れ時にアライメントを開始したり、NDフィルターを併用して日中にピント合わせを行ったりと、状況に合わせたカスタマイズが可能です。
内部にはオンボードコンピューターと、高感度なSony IMX462-DLL モノクロCMOSセンサーを搭載。これらの統合システムが、卓越したガイディング精度を支えています。

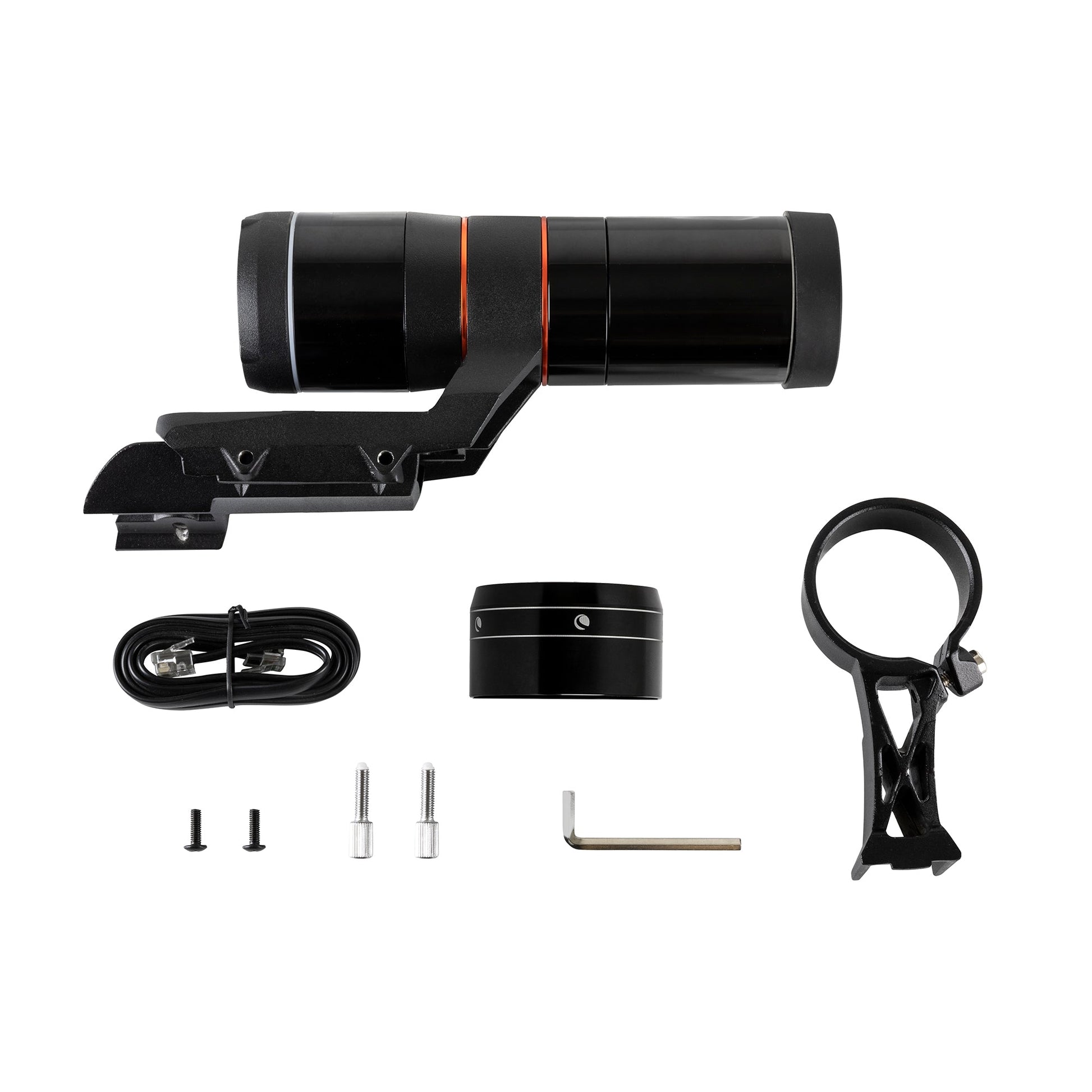

【新機能】結露防止フードを標準付属
現在出荷されるすべての StarSense Autoguiderには、専用設計の結露防止フードが標準で付属しています。湿度の高い環境下でも対物レンズへの結露の付着を効果的に防ぎ、クリアな視界を維持します。また、レンズフードとして迷光(周囲の不要な光)を遮断する役割も果たし、ガイド精度の向上に貢献します。装着は、撮影前に本体の先端にねじ込むだけのシンプルな設計です。
高度なオプション:こだわりの設定で最高の作品を
熟練の天文写真家のために、CPWIソフトウェアを介した高度なカスタマイズ機能を用意しています。
・ディザリング機能:
各撮像の間に架台をわずかに移動させる「ディザリング」の設定が可能です。これにより、画像処理のプロセスでノイズをより効果的に低減し、スタック後の画質を最大限に引き出せます。
・彗星ガイド:
10万個以上の天体データを誇るCPWIのデータベースから、最新の彗星を選択。周辺の星ではなく、移動する彗星そのものを直接追尾(ガイド)することで、彗星撮影において圧倒的に鮮明な結果を得られます。
進化し続けるデバイス StarSense Autoguiderは、購入時が完成形ではありません。最新のファームウェア・アップデートを通じて、常に新機能へのアクセスが可能です。Celestronのエンジニアは日々機能を拡張しており、簡単なアップデートだけで、常に最新かつ最高のパフォーマンスを維持できます。
既存のシステムにシームレスに適合

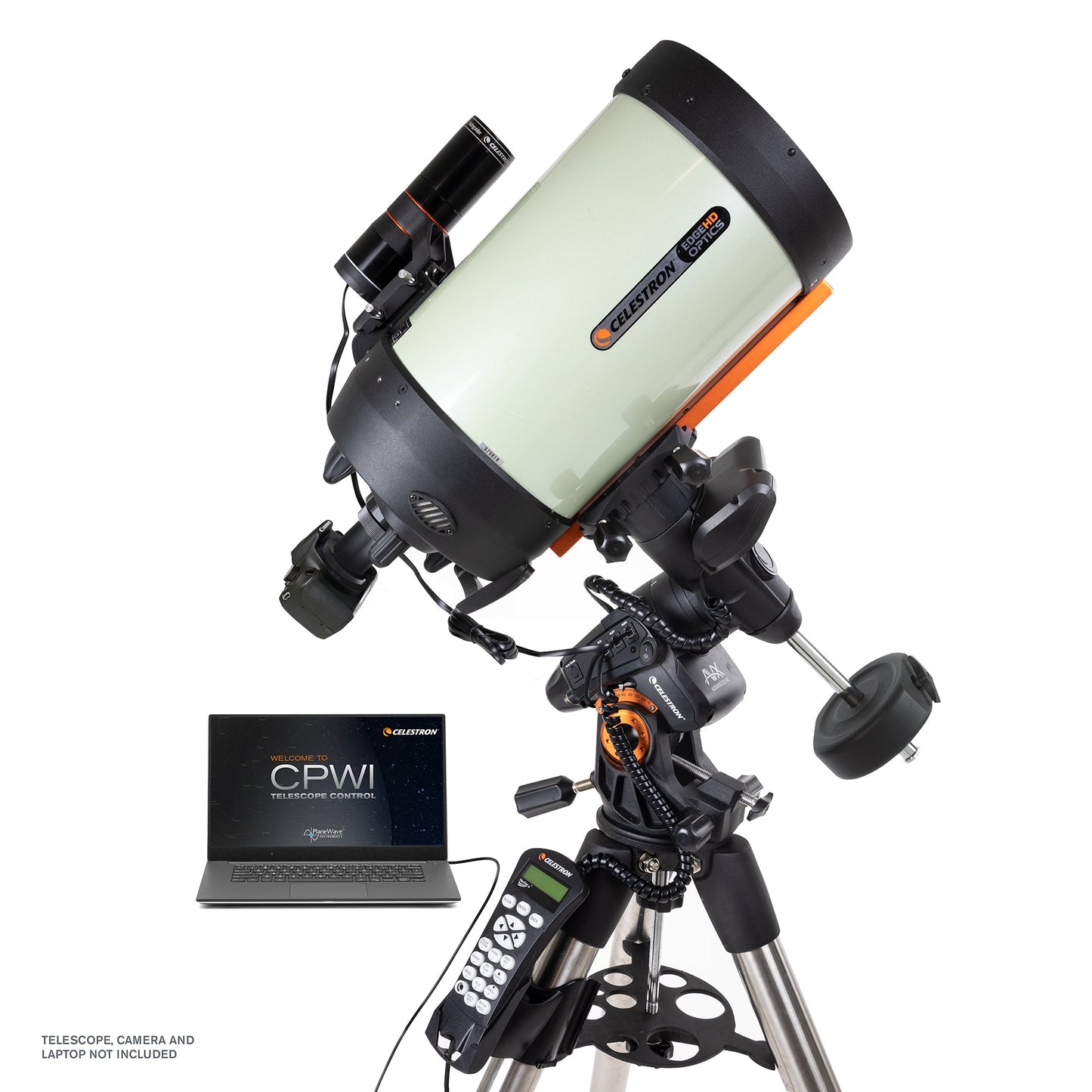

StarSense Autoguiderは、お好みのデバイスで自由自在にコントロール可能です。
・NexStar+ ハンドコントローラー
・CPWI 天体望遠鏡制御ソフトウェア(PC用)
・SkyPortal アプリ(WiFi対応架台での使用時)
さらに、他のCelestron製アクセサリーとも完全に連動。現在の望遠鏡セットアップにそのまま組み込める、シームレスなソリューションを提供します。本製品は、ドイツ式赤道儀および経緯台を含む、現行のCelestron製コンピューター制御架台のほとんどに対応しています。詳細な対応モデルについては、以下の互換性チャートをご確認ください。
警告:接続ポートに関する重要なお知らせ
StarSense Autoguiderを、架台の「AUTOGUIDER」ポートに接続しないでください。本製品は、架台の「AUX」ポートに接続して使用します。誤って「AUTOGUIDER」ポートに接続すると、StarSense Autoguider本体が修復不可能な損傷を受ける恐れがあります。
架台の互換性
| 対応製品 | |
|---|---|
| Advanced VX | CGX-L |
| CPC, CPC DX | NexStar Evolution |
| NexStar 6SE & 8SE telescopes | CGEM II |
| CGX | CGEM / CGEM DX |
| CGE Pro | |
| 非対応製品 | |
|---|---|
|
NexStar SLT |
Astro Fi |
|
SkyProdigy |
LCM series |
| NexStar 4SE & NexStar 5SE | Advanced CG-5 GT |
Suggested Accessories
Categories
Q:
My mount has a port labeled “Autoguider” (i.e., the ST-4 port). Can I plug SSAG into it?
My mount has a port labeled “Autoguider” (i.e., the ST-4 port). Can I plug SSAG into it?
NO! SSAG connects to the mount’s AUX port. The autoguider port is not compatible with SSAG. If you need additional AUX ports for your mount, purchase the AUX Port Splitter (#93919). You can also use the port labeled “hand control”; it behaves as another AUX port.
Q:
I see that my older Celestron mount model is not listed in the compatibility chart. Is it possible my mount is compatible with the StarSense Autoguider?
I see that my older Celestron mount model is not listed in the compatibility chart. Is it possible my mount is compatible with the StarSense Autoguider?
If your Celestron mount model is not listed in the compatibility chart, then it is not compatible with the StarSense Autoguider.
Q:
After I power on my mount, it takes about 10 seconds for SSAG’s LED ring to illuminate, indicating it is ON. Is this normal?
After I power on my mount, it takes about 10 seconds for SSAG’s LED ring to illuminate, indicating it is ON. Is this normal?
Yes, this is normal. The LED ring does not glow steadily until SSAG’s internal computer boots up.
Q:
After I power on my mount, it does not appear that the hand control has “found” SSAG, as I do not see Auto Align as an option. What should I do?
After I power on my mount, it does not appear that the hand control has “found” SSAG, as I do not see Auto Align as an option. What should I do?
Occasionally, the hand control may not immediately find SSAG. If this happens, you can use the MENU>Seek Accessories command in the hand control to find SSAG. You can also try power cycling the mount and SSAG. When both devices restart, the hand control should recognize SSAG.
Q:
I am using Celestron Firmware Manager (CFM) software program to update StarSense Autoguider’s firmware through my mount. The update is progressing quite slowly. Is this normal?
I am using Celestron Firmware Manager (CFM) software program to update StarSense Autoguider’s firmware through my mount. The update is progressing quite slowly. Is this normal?
Yes, this is normal. During a firmware update via CFM, a large amount of data flows through SSAG’s AUX port. For a faster option, try using SSAG’s USB-C port and the .swu file on the SSAG webpage. Consult the instruction manual for more information about updating via USB.
Q:
I am using Celestron Firmware Manager (CFM) to update my NexStar+ hand control and/or SSAG. CFM does not recognize the hand control or SSAG. Am I doing something wrong?
I am using Celestron Firmware Manager (CFM) to update my NexStar+ hand control and/or SSAG. CFM does not recognize the hand control or SSAG. Am I doing something wrong?
Try running CFM a second time. The software will likely recognize the hand control and/or SSAG. If it doesn’t, disconnect the USB cable from the PC to the hand control and turn off the mount. Turn the mount back on while holding down the “7” button and the Celestron logo button on the hand control. This will put the hand control in “bootloader mode,” making it easier for CFM to find. Also, check all cable connections.
Q:
When I attempt to update SSAG’s firmware through the mount using Celestron Firmware Manager (CFM), sometimes the update does not load. How can I fix this?
When I attempt to update SSAG’s firmware through the mount using Celestron Firmware Manager (CFM), sometimes the update does not load. How can I fix this?
Try reseating the AUX cable in SSAG and your mount to ensure the best cable connection.
Q:
I have a NexStar SE, CPC, or CPC Deluxe HD mount. I am having trouble updating SSAG’s firmware through the mount using Celestron Firmware Manager (CFM). The software finds SSAG and begins updating, but eventually, the update fails. What should I do?
I have a NexStar SE, CPC, or CPC Deluxe HD mount. I am having trouble updating SSAG’s firmware through the mount using Celestron Firmware Manager (CFM). The software finds SSAG and begins updating, but eventually, the update fails. What should I do?
Try updating SSAG via USB-C instead of using CFM to update it through the mount. Refer to the instruction manual for more information. Once you have had this issue, only use CFM to update the NexStar+ hand control moving forward, not SSAG.
Q:
I am using the web browser interface to update SSAG’s firmware via USB-C with the .swu file. After updating, the screen displays “Fetching Status” endlessly. How do I complete the firmware update and confirm the version number?
I am using the web browser interface to update SSAG’s firmware via USB-C with the .swu file. After updating, the screen displays “Fetching Status” endlessly. How do I complete the firmware update and confirm the version number?
When you reach this screen, SSAG’s firmware has successfully updated. To confirm the version number, click the “Software Update” back arrow at the top left of the screen and then reload the page in your web browser. The SSAG should then report the updated version number.
Q:
I am using an alt-azimuth mount on an equatorial wedge. Sometimes, the selected object does not appear in the field of view after I issue a GoTo command. What should I do?
I am using an alt-azimuth mount on an equatorial wedge. Sometimes, the selected object does not appear in the field of view after I issue a GoTo command. What should I do?
Issue another GoTo command to the same object. It should be centered this time. This behavior can indicate that the mount is slipping on one of its axes, which can occur if the system is not well-balanced. Consider rebalancing the telescope front-to-back on the fork mount.
Q:
The NexStar+ hand control occasionally becomes unresponsive during polar alignment, forcing me to power cycle and start over. Is there any way to exit without power cycling when this occurs?
The NexStar+ hand control occasionally becomes unresponsive during polar alignment, forcing me to power cycle and start over. Is there any way to exit without power cycling when this occurs?
This behavior can indicate that the hand control is losing contact with SSAG during the polar alignment process. Try pressing and holding the BACK button to exit the polar alignment routine. Then, begin the polar alignment routine again.
Q:
I am using the SkySync GPS with SSAG. But the hand control still prompts me to enter my location/time/date. Shouldn’t the SkySync GPS handle this automatically?
I am using the SkySync GPS with SSAG. But the hand control still prompts me to enter my location/time/date. Shouldn’t the SkySync GPS handle this automatically?
The SkySync GPS is fully compatible with SSAG, but for it to work, you must first enable the GPS option in the hand control. Press the MENU button on the hand control and scroll to the Utility menu. Select “GPS ON/OFF” from the Utility menu, choose “ON,” and press ENTER.
Q:
I previously purchased the StarSense AutoAlign accessory and have upgraded to SSAG. Can I use the StarSense hand control that came with my StarSense AutoAlign with SSAG?
I previously purchased the StarSense AutoAlign accessory and have upgraded to SSAG. Can I use the StarSense hand control that came with my StarSense AutoAlign with SSAG?
No, the StarSense hand control is not compatible with the SSAG. Use the NexStar+ hand control that came with your telescope mount. If you do not have a NexStar+ hand control and wish to use one, you can purchase one separately.
Q:
I am using Celestron CPWI software for sky alignment. I chose the StarSense Alignment option, then chose “Manual Slewing.” It seems that the process of adding alignment references never automatically stops. How do I know when my alignment is sufficient?
I am using Celestron CPWI software for sky alignment. I chose the StarSense Alignment option, then chose “Manual Slewing.” It seems that the process of adding alignment references never automatically stops. How do I know when my alignment is sufficient?
CPWI allows you to add as many alignment references as you want, so it won’t automatically quit in this mode. Follow the on-screen suggestions in the Alignment Window for the best results. We recommend adding at least three or four alignment references (spaced evenly across the sky) before selecting “Cancel” to exit.
Q:
I see no Quick Align option for StarSense Alignment in Celestron CPWI software. I know Quick Align does not generally provide good pointing accuracy, but it is sometimes convenient, like when searching for planets in twilight. Is there a Quick Align option?
I see no Quick Align option for StarSense Alignment in Celestron CPWI software. I know Quick Align does not generally provide good pointing accuracy, but it is sometimes convenient, like when searching for planets in twilight. Is there a Quick Align option?
Although there is no specific Quick Align option in CPWI, you can perform a Quick Align using the Manual Slewing option. Start with your telescope in the initial position as prompted (i.e., home position and polar aligned for EQ mounts or level and North for AZ mounts). Choose StarSense Alignment>Manual Slewing and then select “Cancel” to exit the routine without adding any alignment references.
Q:
I would like to inspect the Live View from SSAG while guiding using Celestron CPWI software. Is that possible?
I would like to inspect the Live View from SSAG while guiding using Celestron CPWI software. Is that possible?
No, accessing the Live View while actively guiding is not possible.
Q:
I am using Celestron CPWI software for polar alignment. None of the numbers are changing, and the mount is slewing in RA across the entire sky. What should I do?
I am using Celestron CPWI software for polar alignment. None of the numbers are changing, and the mount is slewing in RA across the entire sky. What should I do?
This behavior can occur very infrequently and indicates that SSAG is not properly communicating with the mount. Power cycle the mount, reconnect to CPWI and perform the polar alignment routine again.
Q:
What is the longest focal length instrument I can use with SSAG?
What is the longest focal length instrument I can use with SSAG?
Thanks to its advanced functionality, SSAG can successfully guide all Celestron telescopes, including the EdgeHD 14”, with a focal length of 3910mm. Keep in mind, however, that imaging at very long focal lengths can introduce a host of other issues unrelated to SSAG’s guiding performance.
Q:
Which user interface works best with SSAG—a hand control, a PC running CPWI, or a smartphone running the SkyPortal app?
Which user interface works best with SSAG—a hand control, a PC running CPWI, or a smartphone running the SkyPortal app?
You can count on SSAG to achieve the same high level of guiding performance with any of its compatible user interfaces. Choose the one that’s most convenient for you.
Q:
My computer rides on top of my telescope setup, so it is most convenient to connect my computer to SSAG with the USB-C port while using Celestron CPWI software. Will SSAG’s guiding performance suffer if I connect it directly to my computer via USB-C (instead of connecting to it via AUX through the mount or hand control USB ports)?
My computer rides on top of my telescope setup, so it is most convenient to connect my computer to SSAG with the USB-C port while using Celestron CPWI software. Will SSAG’s guiding performance suffer if I connect it directly to my computer via USB-C (instead of connecting to it via AUX through the mount or hand control USB ports)?
No. Your SSAG will perform just as well if you connect it directly to your computer via USB-C.
Q:
I am using the SkyPortal app to control SSAG with my smartphone. Can I send the app to the background when guiding so I can use other apps?
I am using the SkyPortal app to control SSAG with my smartphone. Can I send the app to the background when guiding so I can use other apps?
Yes, sending the SkyPortal app to the background is OK when guiding. SSAG will still guide the mount when disconnected from the app. To return to SkyPortal control, bring up the app again and select Connect.
Q:
Can I use SSAG to find and center the Sun in my telescope?
Can I use SSAG to find and center the Sun in my telescope?
DO NOT POINT THE STARSENSE AUTOGUIDER AT THE SUN UNDER ANY CIRCUMSTANCES! The intense and focused light from the Sun will damage the camera’s sensor. You cannot use SSAG during the day because it relies on detecting star patterns overhead.
Q:
My SSAG sometimes has trouble finding and centering the Moon. Is this normal?
My SSAG sometimes has trouble finding and centering the Moon. Is this normal?
SSAG uses star positions and plate-solving to determine its pointing position. When the Moon is very bright, and SSAG is pointing nearby, the Moon’s glare can prevent SSAG from detecting enough stars to determine its location. If the Moon is in half to full phase, SSAG may be unable to find and center it. A bright Moon may also affect SSAG’s performance in the sky surrounding the Moon. Hazy conditions can compound the issue because the Moon illuminates the haze, further obscuring the stars.
Q:
Should I be concerned about dew forming on SSAG’s lens?
Should I be concerned about dew forming on SSAG’s lens?
In testing, we have found that dew does not tend to form on SSAG’s objective lens, even in fairly heavy dew conditions. The included dew shield can also be used to help prevent dew, it slows the radiative cooling of the lens.
Q:
In Celestron CPWI software’s SSAG Menu, I see an option called “Auto Meridian Flip,” which the instruction manual does not discuss. Can you provide more information?
In Celestron CPWI software’s SSAG Menu, I see an option called “Auto Meridian Flip,” which the instruction manual does not discuss. Can you provide more information?
“Auto Meridian Flip” can be useful when imaging near the meridian with your SSAG. When you select this option, CPWI automatically issues a meridian flip when it detects that the scope has tracked beyond the meridian. Then, it will precisely recenter your target using the Precise-GoTo function and restart guiding (if it was active).
- If you use third-party software (NINA, Voyager), turn off Meridian Flip in the third-party software before using Auto Meridian Flip in CPWI.
- For SSAG Meridian Flip, we recommend the following software setting configurations:
- Settings for Voyager:
- Global Settings:
- Setup - Plate solve - none / Blind solve - none
- Setup - Mount - Safety - uncheck: GEM Stop Tracking for inactivity if Meridian Flip needed
- Local sequence settings:
- Tab Plate solve - None
- Tab Meridian Flip - Do Not Manage
- Global Settings:
- Settings for NINA:
- Options - Imaging - Meridian Flip Settings: Recenter after Flip: Toggle Switch Off
- In Sequence: Toggle Switch Off: Meridian Flip
- Settings for Voyager:
Q:
I had been using the StarSense Autoguider with my Origin, and now when I use it with another Celestron mount and my NexStar+ hand control, I am getting strange behavior. Specifically, after Auto Align, it is not placing objects in the field of view after GoTo commands, and the mount seems to continually drift off target. How can I correct this?
I had been using the StarSense Autoguider with my Origin, and now when I use it with another Celestron mount and my NexStar+ hand control, I am getting strange behavior. Specifically, after Auto Align, it is not placing objects in the field of view after GoTo commands, and the mount seems to continually drift off target. How can I correct this?
After using the StarSense Autoguider with Origin, if you use it with another Celestron mount and the NexStar+ hand control, then you should perform a Factory Reset by pressing the MENU button, then selecting “SSAG”, then “Factory Reset”. You will then be prompted to power cycle the mount. After subsequently performing an alignment with SSAG, you will be prompted to do a Center Calibration, and after that is performed everything should work as normal again.
Q:
I notice that CFM is currently not working to update the firmware of my StarSense Autoguider beyond v.35.10.32, am I doing something wrong?
I notice that CFM is currently not working to update the firmware of my StarSense Autoguider beyond v.35.10.32, am I doing something wrong?
No, you are not doing anything wrong. For updating beyond v.35.10.32 you must currently update via USB using SSAG’s web interface as described in Section 10 of the SSAG instruction manual. This is because the file size of the firmware has become too large for CFM to handle through the AUX port, so updating through USB is necessary. CFM will soon be updated to facilitate updating via USB, but for now, please follow these instructions:
1. Install the StarSense Autoguider Windows Driver on your PC, you can download it from the “Support and Downloads” section of the StarSense Autoguider product page.
2. Use a USB cable to connect SSAG’s USB-C port to the PC. After about 10 seconds, SSAG’s LED ring will illuminate, indicating it is receiving power via USB.
3. Download the StarSense Autoguider Firmware for Updating via USB-C from the “Support and Downloads” section of the StarSense Autoguider product page.
4. Open a web browser on your computer and enter http://169.254.54.1/ to launch the SSAG web interface page.
5. Select “Software Update.”
6. Drag and drop the downloaded firmware .swu file as directed. SSAG’s software will update.
